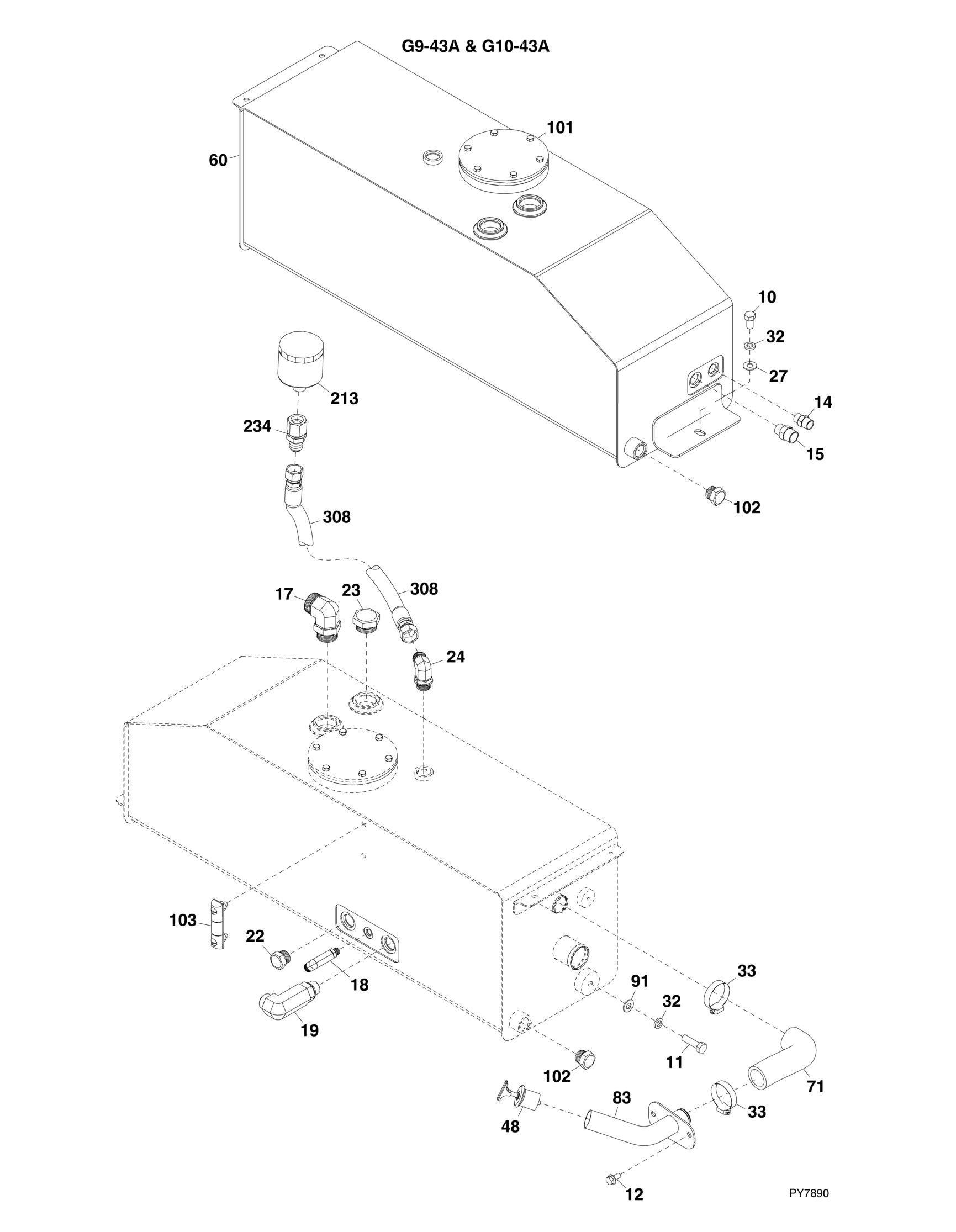

FIGURE 9 28. HYDRAULIC TANK G9 43A & G10 43A

FIGURE 9-28. HYDRAULIC TANK G9-43A & G10-43A

FIGURE 9-28. HYDRAULIC TANK G9-43A & G10-43A

ITEM PART NUMBER QTY

DESCRIPTION

10 0641807 1 HEX HD CAPSCREW, 1/2-13X7/8, GR5 11 0641814 1 HEX HD CAPSCREW, 1/2-13X1-3/4, GR5 12 0811606 2 SCREW, 3/8-16X3/4 14 2110808 1 STRAIGHT FITTING, (includes o-ring) 15 2111010 1 STRAIGHT FITTING, (includes o-ring) 17 2132020 1 ADAPTER, 90, (includes o-ring) 18 2170206 1 ADAPTER, 90, (includes o-ring) 19 2170212 1 ADAPTER, 90, (includes o-ring) 22 2220240 1 PLUG, (includes o-ring) 23 2220243 1 PLUG, (includes o-ring) 24 2220578 1 ADAPTER, 90, (includes o-ring) 27 4711800 1 WASHER, 1/2 32 4761800 2 LOCKWASHER, 1/2 33 8405104 2 2-1/4IN CLAMP 48 91403579 1 CAP 60 1001120654 1 HYDRAULIC TANK, (includes items 101 thru 103) 71 1001128038 1 HOSE 83 1001136981 1 TUBE 91 91561241 1 WASHER, 1/2 101 70024152 1 FILTER KIT, (includes filter and gasket) 102 70023345 2 PLUG 103 70024153 1 SIGHT GAUGE 213 1340021 1 AIR BREATHER 234 91163100 1 ADAPTER 308 1001123065 1 HOSE ASSY

REV

J
