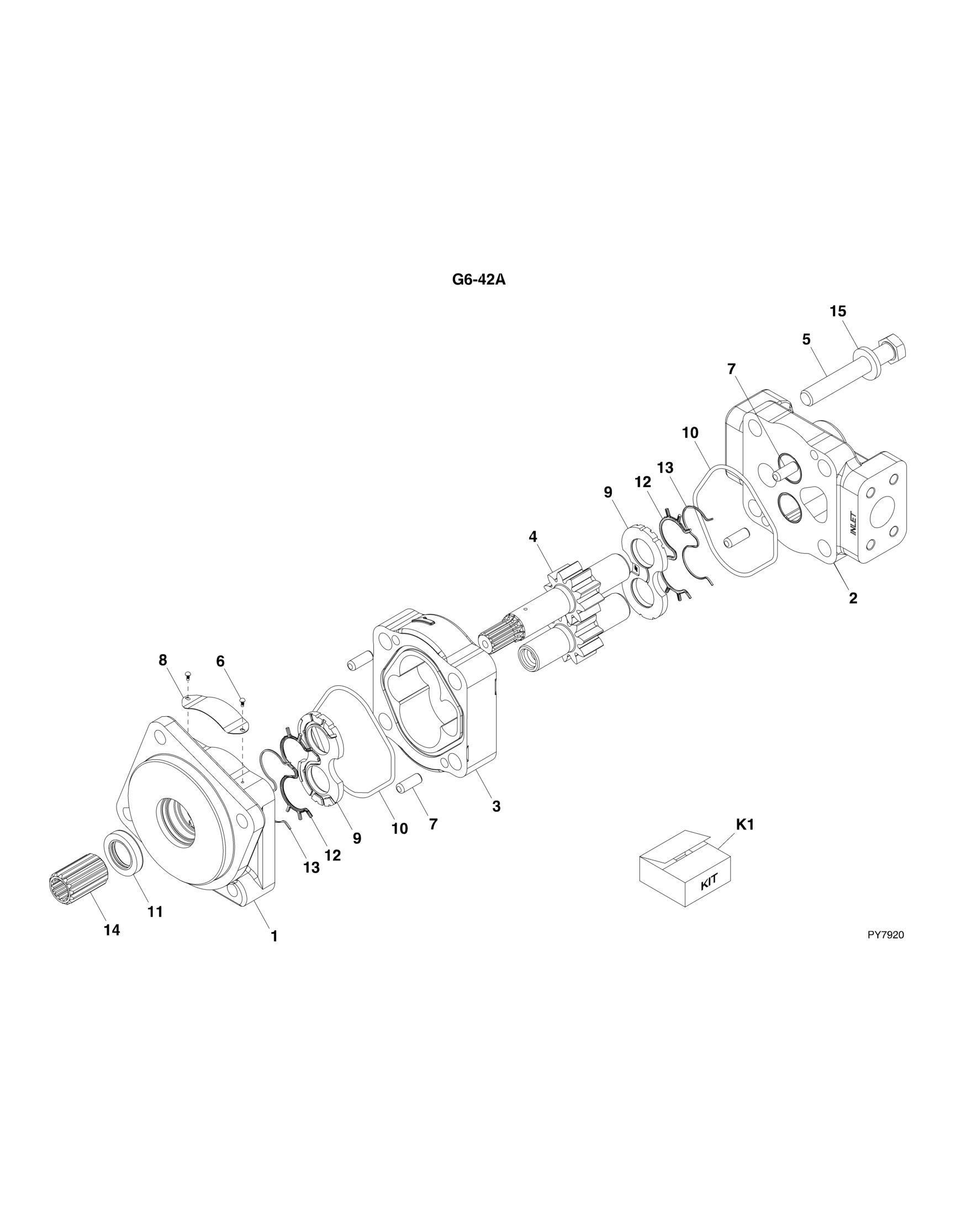

FIGURE 9 25. HYDRAULIC PUMP G6 42A

FIGURE 9-25. HYDRAULIC PUMP G6-42A

FIGURE 9-25. HYDRAULIC PUMP G6-42A

ITEM PART NUMBER QTY

DESCRIPTION

3600449 1 HYDRAULIC PUMP, (G6-42A), (includes all items) 1 7029844 1 SHAFT END COVER ASSY 2 91474178 1 PORT END COVER ASSY 3 91474179 1 GEAR HOUSING 4 7029843 1 GEAR SHAFT SET 5 91474181 4 CAPSCREW 6 7029112 2 DRIVE SCREW 7 83671037 4 DOWEL PIN 8 7029842 1 NAME PLATE 9 83674096 2 THRUST PLATE 10 Kit K1 2 O-RING 11 Kit K1 1 LIP SEAL 12 Kit K1 2 CHANNEL SEAL 13 Kit K1 2 BACK-UP SEAL 14 8035744 1 SPLINE ADAPTER 15 8035261 4 WASHER K1 91474624 1 SEAL KIT, (includes items 10 thru 13)

REV

B
