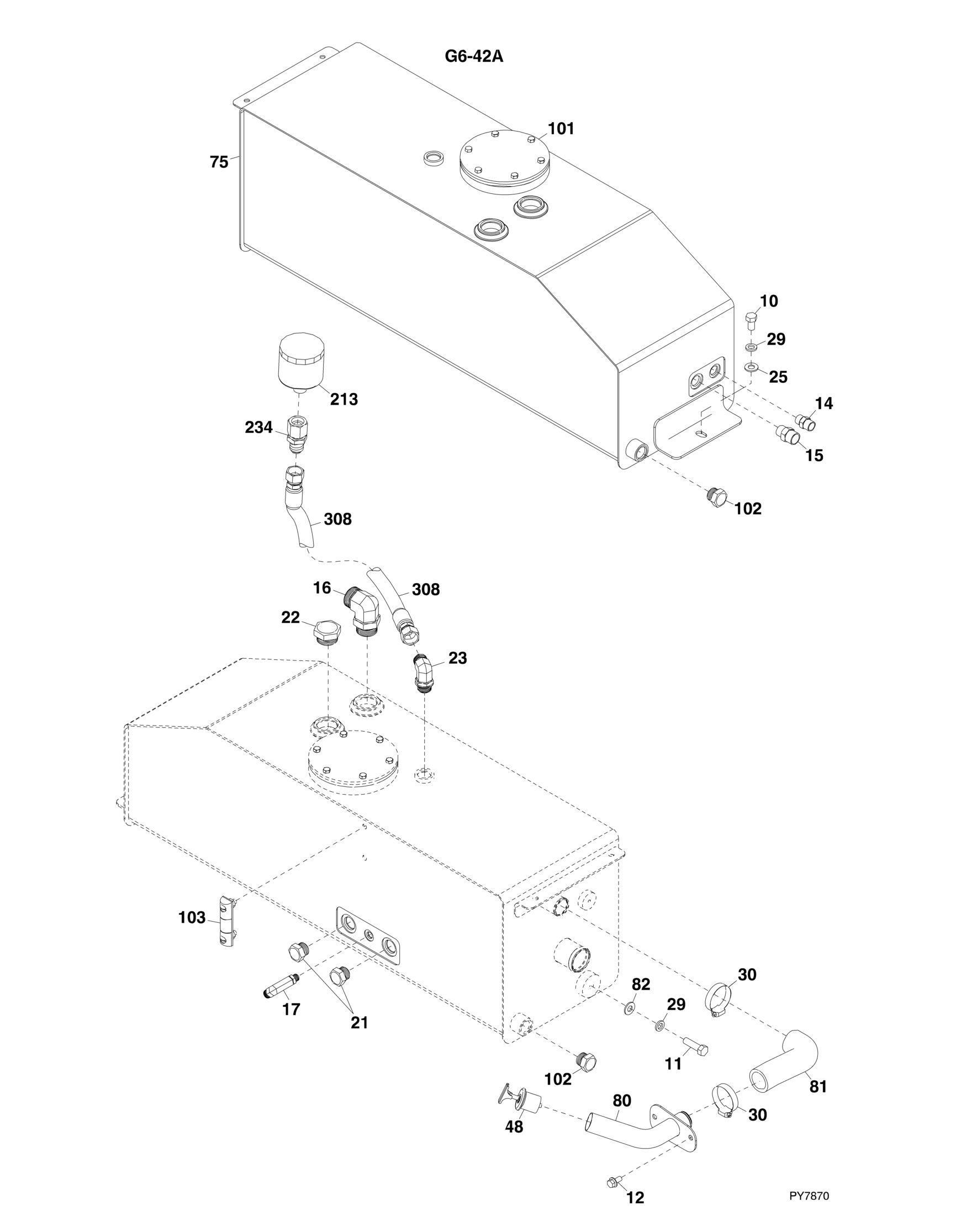

FIGURE 9 27. HYDRAULIC TANK G6 42A

FIGURE 9-27. HYDRAULIC TANK G6-42A

FIGURE 9-27. HYDRAULIC TANK G6-42A

ITEM PART NUMBER QTY

DESCRIPTION

10 0641807 1 HEX HD CAPSCREW, 1/2-13X7/8, GR5 11 0641814 1 HEX HD CAPSCREW, 1/2-13X1-3/4, GR5 12 0811606 2 SCREW, 3/8-16X3/4 14 2110808 1 STRAIGHT FITTING, (includes o-ring) 15 2111010 1 STRAIGHT FITTING, (includes o-ring) 16 2132020 1 ADAPTER, 90, (includes o-ring) 17 2170206 1 ADAPTER, 90, (includes o-ring) 21 2220240 2 PLUG, (includes o-ring) 22 2220243 1 PLUG, (includes o-ring) 23 2220578 1 ADAPTER, 90, (includes o-ring) 25 4711800 1 WASHER, 1/2 29 4761800 2 LOCKWASHER, 1/2 30 8405104 2 2-1/4IN CLAMP 48 91403579 1 CAP 75 1001120654 1 HYDRAULIC TANK, (includes items 101 thru 103) 80 1001136981 1 TUBE 81 1001128038 1 HOSE 82 91561241 1 WASHER, 1/2 101 70024152 1 FILTER KIT, (includes filter and gasket) 102 70023345 2 PLUG 103 70024153 1 SIGHT GAUGE 213 1340021 1 AIR BREATHER 234 91163100 1 ADAPTER 308 1001121498 1 HOSE ASSY

REV

J
