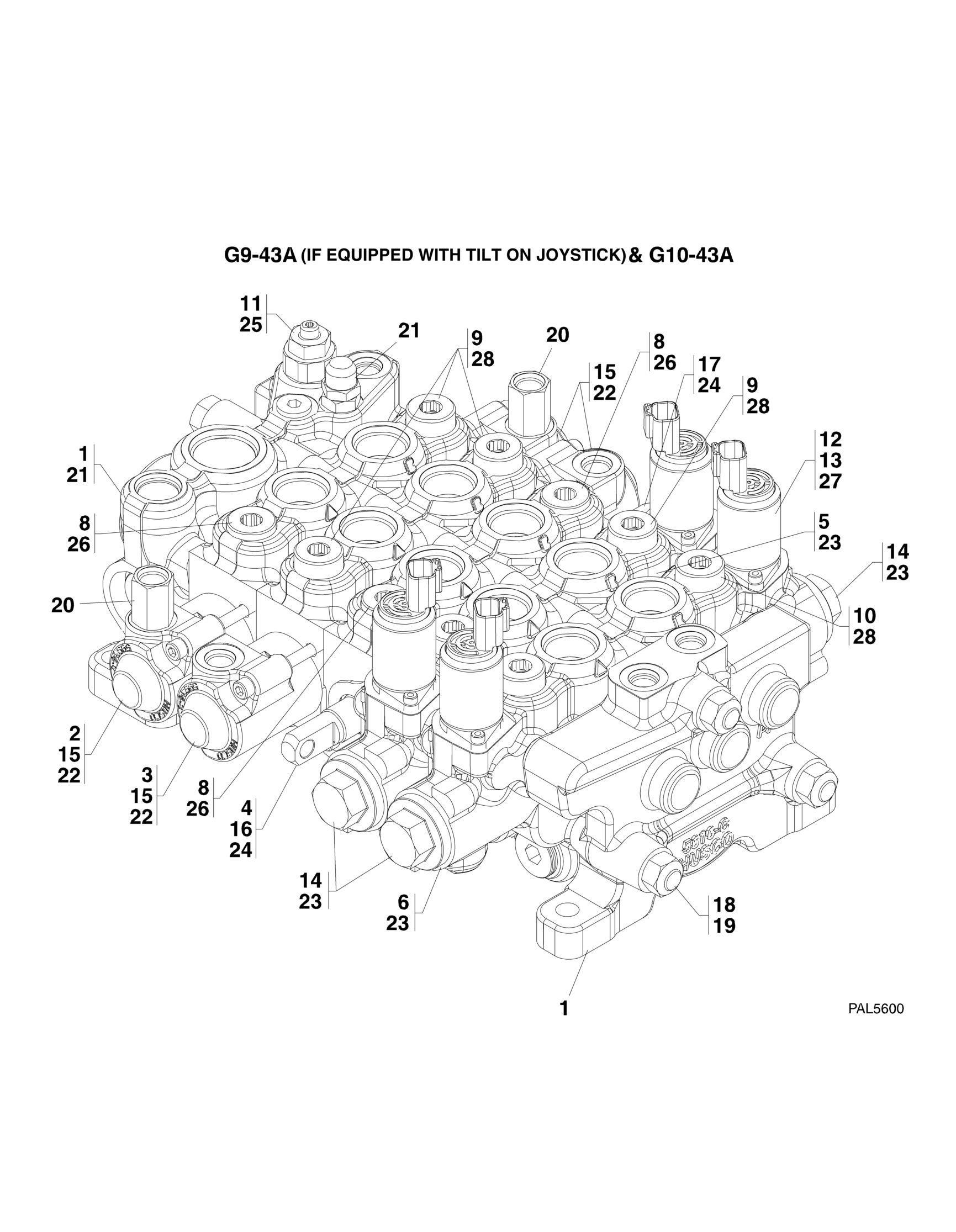

FIGURE 9 24. MAIN CONTROL VALVE G9 43A & G10 43A

FIGURE 9-24. MAIN CONTROL VALVE G9-43A & G10-43A

FIGURE 9-24. MAIN CONTROL VALVE G9-43A & G10-43A

ITEM PART NUMBER QTY

DESCRIPTION

1001107464 1 MAIN CONTROL VALVE, (G9-43A, if equipped with tilt on joystick), (G10-43A), (includes all items) 1 70023311 1 INLET SECTION ASSY 2 70023312 1 SPOOL SECTION ASSY, LIFT 3 70023313 1 SPOOL SECTION ASSY, EXTEND/RETRACT 4 70023314 1 SPOOL SECTION ASSY, FRAME LEVEL 5 70023315 1 SPOOL SECTION ASSY, TILT 6 70023316 1 SPOOL SECTION ASSY, AUX 7 70022007 1 OUTLET SECTION ASSY 8 70022008 3 SHUT-OFF PLUG ASSY 9 70022010 5 RELIEF VALVE, 280 BAR 10 70022011 2 RELIEF VALVE, 185 BAR 11 70023317 1 DRAIN REGULATOR ASSY 12 70022013 4 SOLENOID-CARTRIDGE VALVE 13 70022014 8 SOCKET HD CAPSCREW 14 70022015 4 END MECHANISM KIT 15 70022016 4 END MECHANISM KIT, PO 16 70023318 1 SEAL PLATE GROUP 17 70023319 1 SPOOL END GROUP 18 70023320 3 TIE ROD 19 70022019 6 TIE ROD NUT 20 70023321 2 CHECK VALVE ASSY 21 70022020 1 INLET SEAL KIT 22 70022021 1 PO SECTION SEAL KIT 23 70022022 1 EH SECTION SEAL KIT 24 70023322 1 MANUAL SECTION SEAL KIT 25 8036508 1 DRAIN REGULATOR SEAL KIT 26 70022023 1 SHUT-OFF PLUG AND FULL FLOW RV SEAL KIT 27 70022024 1 PPRV SEAL KIT 28 70023323 1 O-RING

REV

F
