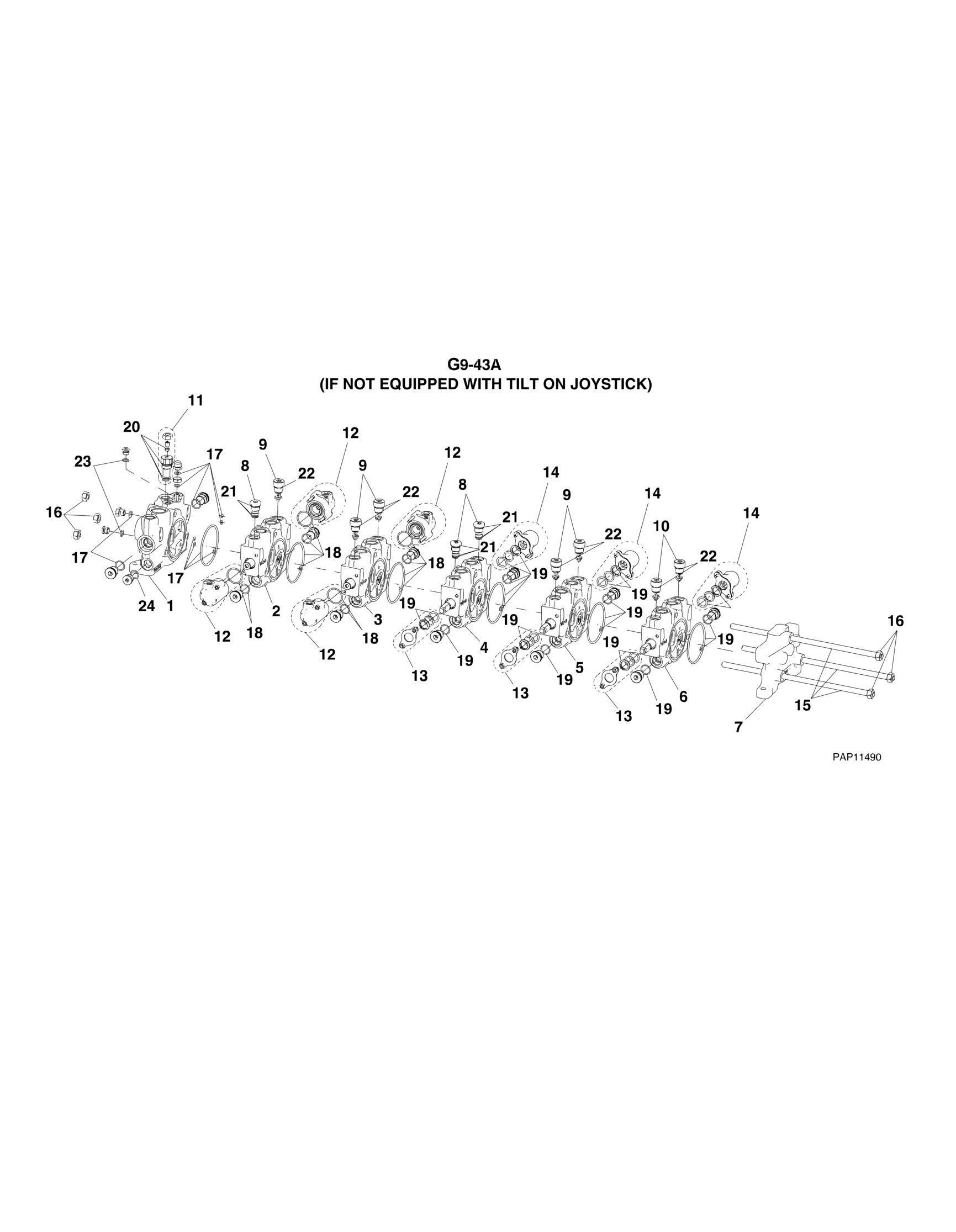

FIGURE 9 23. MAIN CONTROL VALVE G9 43A

FIGURE 9-23. MAIN CONTROL VALVE G9-43A

FIGURE 9-23. MAIN CONTROL VALVE G9-43A

ITEM PART NUMBER QTY

DESCRIPTION

1001105611 1 MAIN CONTROL VALVE, (G9-43A, if not equipped with tilt on joystick), (includes items 1 thru 24) 1 70023311 1 INLET SECTION ASSY 2 70024192 1 SPOOL SECTION ASSY, LIFT 3 70024193 1 SPOOL SECTION ASSY, EXTEND/RETRACT 4 70024194 1 SPOOL SECTION ASSY, FRAME LEVEL 5 70024195 1 SPOOL SECTION ASSY, TILT 6 70024196 1 SPOOL SECTION ASSY, AUX 7 70024197 1 OUTLET SECTION ASSY 8 70022008 3 SHUT-OFF PLUG ASSY 9 70022010 5 RELIEF VALVE, 280 BAR 10 70022011 2 RELIEF VALVE, 185 BAR 11 70024198 1 DRAIN REGULATOR ASSY 12 70022016 4 END MECHANISM PO KIT 13 70023318 3 SEAL PLATE GROUP 14 70023319 3 END MECHANISM KIT 15 70023320 3 TIE ROD, METRIC 16 70022019 6 TIE ROD NUT, METRIC 17 70022020 1 INLET SEAL KIT 18 70024199 2 PO SECTION SEAL KIT 19 70024200 3 MANUAL SECTION SEAL KIT 20 8036508 1 DRAIN REGULATOR SEAL KIT 21 70022023 3 SHUT-OFF PLUG/FULL FLOW RV SEAL KIT 22 70022025 7 O-RING 23 70024201 2 O-RING 24 70024202 1 O-RING 108 8304042 4 ROUND HD CARRIAGE BOLT, 3/8-16X1-1/2, (not shown) 109 4761600 4 LOCKWASHER, 3/8, (not shown) 110 88501006 4 HEX NUT, 3/8-16, (not shown) 115 4751600 4 WASHER, 3/8, (not shown)

REV

F
