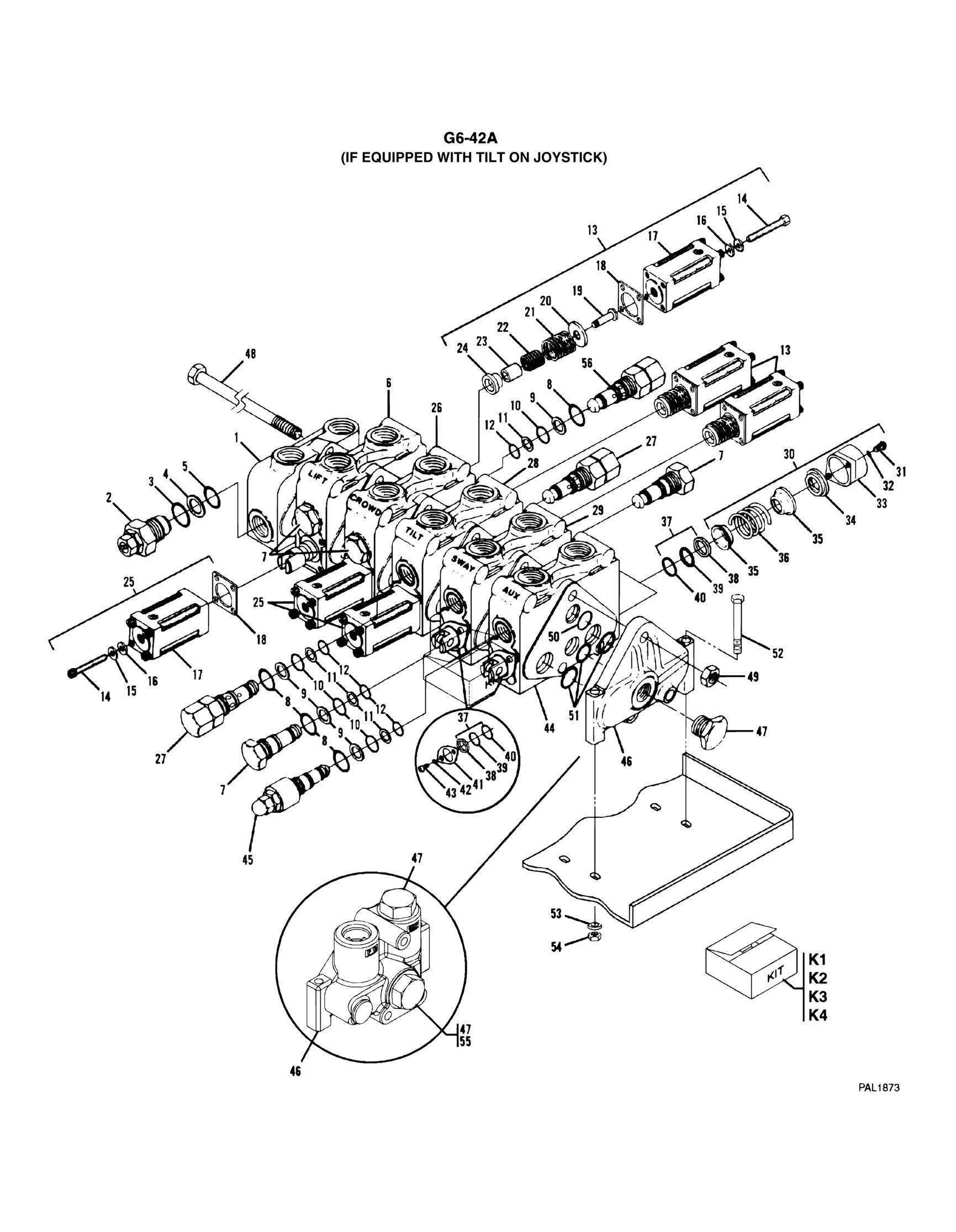

FIGURE 9 22. MAIN CONTROL VALVE G6 42A
FIGURE 9-22. MAIN CONTROL VALVE G6-42A
FIGURE 9-22. MAIN CONTROL VALVE G6-42A
ITEM PART NUMBER QTY
DESCRIPTION
1001001062 1 MAIN CONTROL VALVE, (G6-42A), (if equipped with tilt on joystick), (includes items 1 thru 51 & 56) 1 91084008 1 INLET COVER ASSY, (includes item 2) 2 70021544 1 MAIN RELIEF, 4000PSI, (includes items 3 thru 5) 3 Kit K3 1 O-RING 4 Kit K3 1 BACKUP RING 5 Kit K3 1 O-RING 6 91404182 1 VALVE SECTION ASSY, (Lift), (includes one each of items 13 & 25 and two of item 7) 7 91084010 5 LOAD CHECK PLUG, (includes items 8 thru 12) 8 Kit K4 10 O-RING 9 Kit K4 10 BACKUP RING 10 Kit K4 10 O-RING 11 Kit K4 10 BACKUP RING 12 Kit K4 10 O-RING 13 91094024 3 HYDRAULIC REMOTE POSITIONER, (includes items 14 thru 24) 14 N.S.S. 24 HEX HD CAPSCREW, 1/4-20X3 15 N.S.S. 24 LOCKWASHER, 1/4 16 N.S.S. 6 BEARING PLATE 17 N.S.S. 6 BONNET 18 N.S.S. 6 SEAL 19 N.S.S. 3 SPOOL POSITIONER 20 N.S.S. 3 WASHER 21 N.S.S. 3 SPRING, (large) 22 N.S.S. 3 SPRING, (small) 23 N.S.S. 3 STOP SLEEVE 24 N.S.S. 3 STOP COLLAR 25 91094023 3 HYDRAULIC REMOTE POSITIONER, (includes items 14 thru 18) 26 91404186 1 VALVE SECTION ASSY, (Extend/Retract), (includes one each of items 7, 13, 25 & 56) 27 70021460 2 RELIEF CARTRIDGE, 4300PSI, (includes items 8 thru 12) 28 91504080 1 VALVE SECTION ASSY, (Tilt), (includes one each of items 13 & 25 and two of item 27) 29 91404191 1 VALVE SECTION ASSY, (Frame Level), (includes one each of items 30 & 41 and two each of 7 & 37) 30 91084004 2 SPOOL POSITIONER ASSY, (includes items 31 thru 36) 31 N.S.S. 4 SCREW 32 N.S.S. 4 WASHER 33 N.S.S. 2 BONNET 34 N.S.S. 2 SPOOL COLLAR 35 N.S.S. 4 SPRING COLLAR 36 N.S.S. 2 SPRING 37 91084005 4 SPOOL SEAL KIT, (includes items 38 thru 40) 38 N.S.S. 4 RETAINER 39 N.S.S. 4 WASHER 40 N.S.S. 4 SEAL 41 91084006 2 SPOOL RETAINER, (includes items 42 & 43) 42 N.S.S. 4 WASHER 43 N.S.S. 4 SCREW
REV
C
ITEM PART NUMBER QTY
DESCRIPTION
44 7029862 1 VALVE SECTION ASSY, (Aux), (includes one each of items 30 & 41 and two each of 37 & 45) 45 70021461 2 RELIEF CARTRIDGE, 3000PSI, (includes items 8 thru 12) 46 91084278 1 OUTLET COVER ASSY, (no outrigger), (includes item 47) 46 70021281 1 OUTLET COVER ASSY, (with outrigger), (includes items 47 & 55) 47 91084279 1 PLUG, (no outrigger) 47 70021279 2 PLUG, (with outrigger) 48 Kit K2 3 HEX HD CAPSCREW 49 Kit K2 3 HEX NUT 50 Kit K1 7 O-RING 51 Kit K1 17 O-RING 52 88411045 3 CARRIAGE BOLT, 5/16-18X3 53 4751500 3 FLAT WASHER, 5/16 54 88521305 3 HEX LOCKNUT, 5/16-18 55 70021280 1 PLUG 56 70021459 1 RELIEF CARTRIDGE, 3800PSI, (includes items 8 thru 12) K1 7029863 1 VALVE SECTION SEAL KIT, (includes items 50 & 51) K2 7029864 1 STUD KIT, (no outrigger), (includes items 48 & 49) K2 70021278 1 STUD KIT, (with outrigger), (includes items 48 & 49) K3 91034237 1 MAIN RELIEF SEAL KIT, (includes items 3, 4 & 5) K4 7029865 5 PLUG SEAL KIT, (includes items 8 thru 12)
