FIGURE 9 16. OUTRIGGER CYLINDER

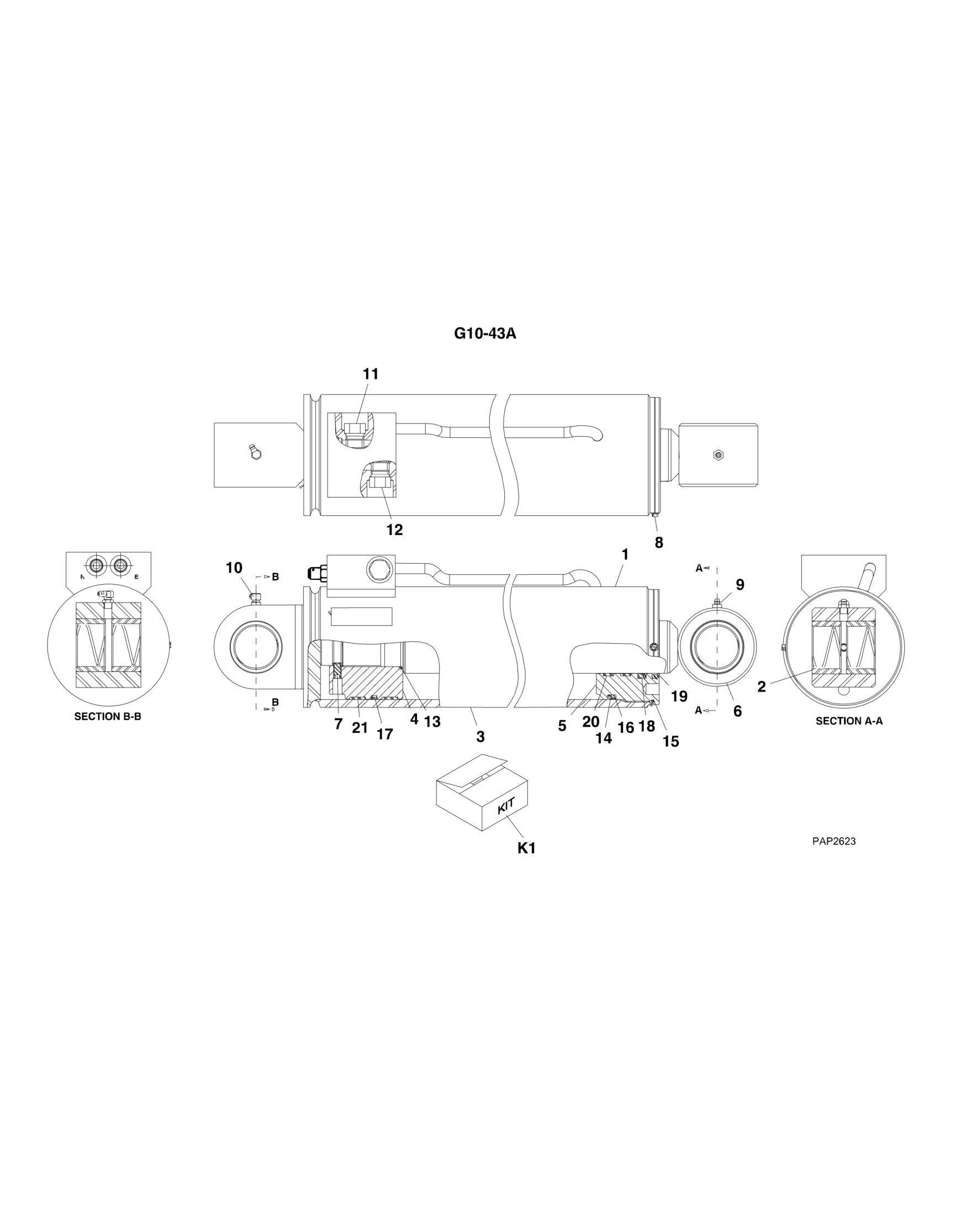

FIGURE 9-16. OUTRIGGER CYLINDER

FIGURE 9-16. OUTRIGGER CYLINDER

ITEM PART NUMBER QTY

DESCRIPTION

1001116439 2 OUTRIGGER CYLINDER, (G10-43A), (includes items 1 thru 20), (included item quantities are per single cylinder) 1 70020370 4 BUSHING 2 70023892 1 BARREL 3 70023893 1 PISTON, (loctite and torque to 2350-2600 lb-ft/3186-3525 Nm) 4 70023894 1 HEAD GLAND, (torque to 300-400 lb-ft/407-542 Nm) 5 70023895 1 ROD 6 8036629 1 SET SCREW, 3/8-16X3/4, (torque to 16-18 lb-ft/22-24 Nm) 7 70023896 1 TAPPING SCREW 8 70023897 1 GREASE FITTING 9 8520021 1 GREASE FITTING, 90 10 8036750 1 PO CHECK VALVE, (torque to 30-35 lb-ft/41-47 Nm) 11 70023898 1 PO CHECK VALVE W/THERMAL RELIEF, (torque to 30-35 lbft/41-47 Nm) 12 Kit K1 1 O-RING 13 Kit K1 1 O-RING 14 Kit K1 1 O-RING 15 Kit K1 1 BACK-UP RING 16 Kit K1 1 PISTON SEAL 17 Kit K1 1 ROD SEAL 18 Kit K1 1 ROD WIPER 19 Kit K1 2 WEAR BAND 20 Kit K1 2 WEAR BAND K1 70023899 2 SEAL KIT, (includes items 12 thru 20)

REV

B
