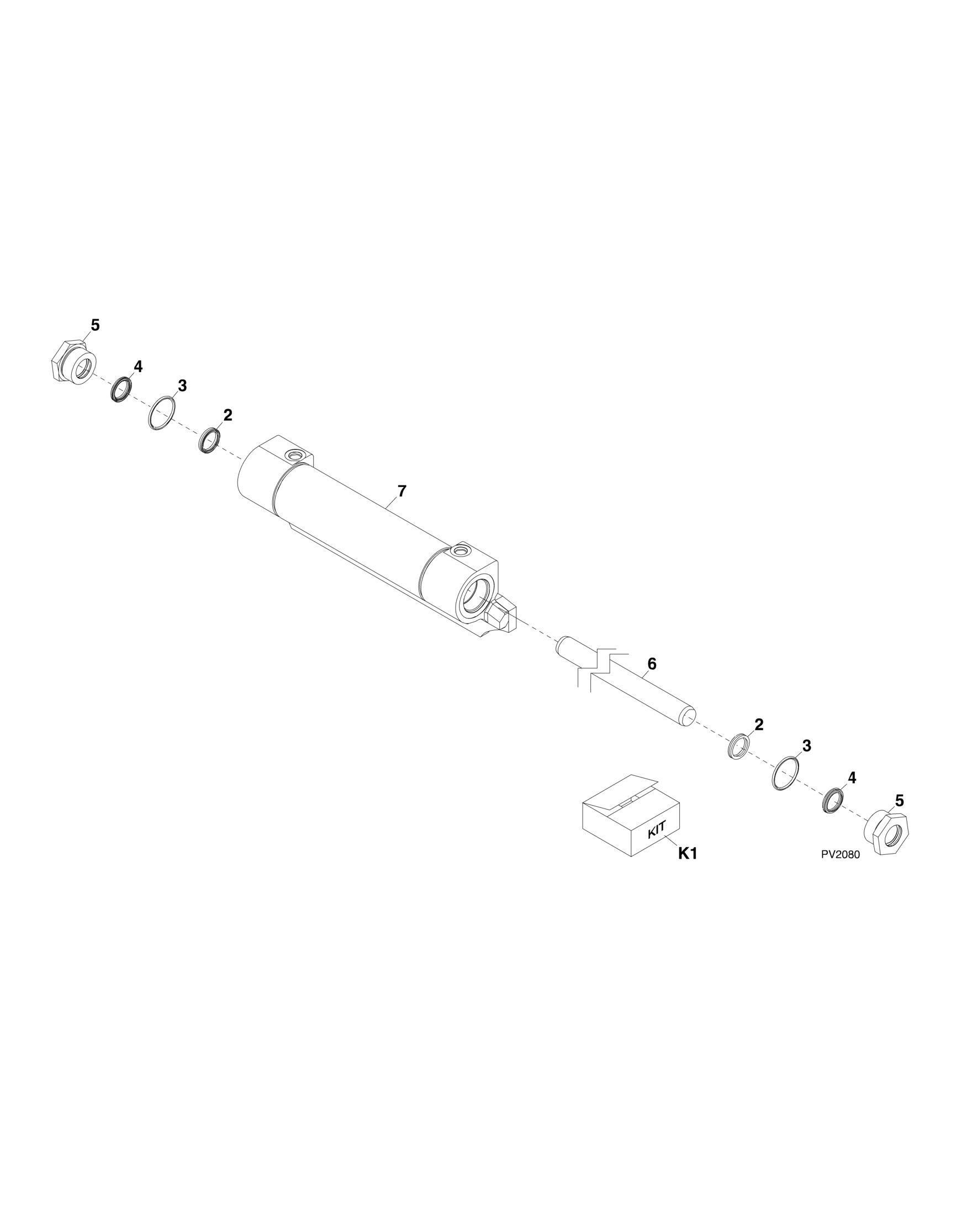

FIGURE 9 18. 50IN SIDE SHIFT CARRIAGE CYLINDER

FIGURE 9-18. 50IN SIDE SHIFT CARRIAGE CYLINDER

FIGURE 9-18. 50IN SIDE SHIFT CARRIAGE CYLINDER

ITEM PART NUMBER QTY DESCRIPTION REV

70024539 1 50IN SIDE SHIFT CARRIAGE CYLINDER, (includes all items) B 2 Kit K1 2 ROD SEAL 3 70024547 2 O-RING 4 Kit K1 2 ROD WIPER SEAL 5 70024548 2 RETAINER SEAL 6 N.S.S. 1 ROD 7 N.S.S. 1 BARREL

K1 70024549 1 SEAL KIT, (includes items 2 & 4)
