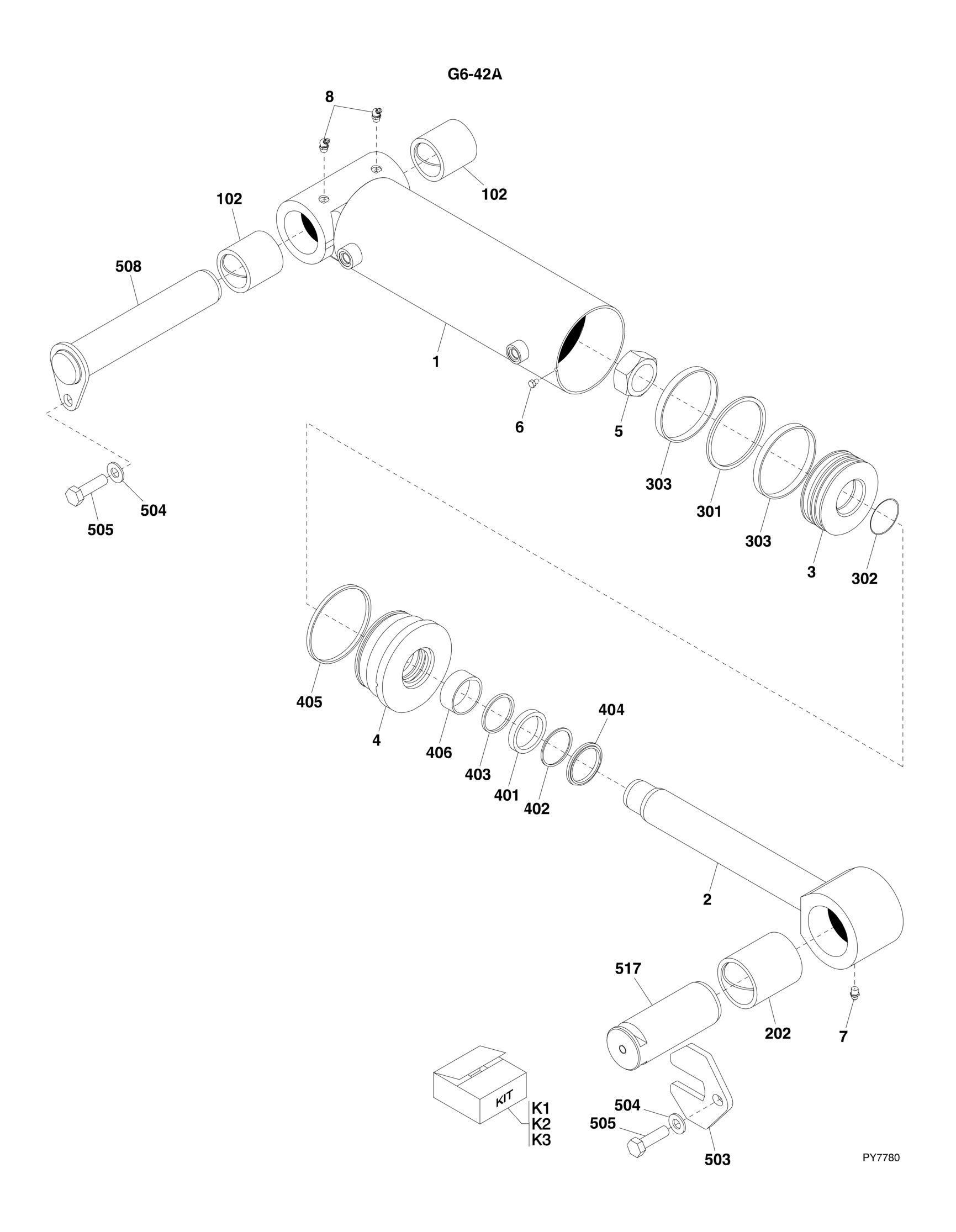

FIGURE 9 10. COMPENSATION CYLINDER G6 42A (Prior to SN 0160057586
ITEM PART NUMBER QTY DESCRIPTION REV
91413154 1 COMPENSATION CYLINDER, (G6-42A), (includes items 1 thru 8) C 1 7029866 1 BARREL ASSY, (includes item 102) 2 7029869 1 ROD ASSY, (includes item 202) 3 7029868 1 PISTON ASSY, (includes items 301 thru 303) 4 7029870 1 ROD BEARING ASSY, (includes items 401 thru 406) 5 91014066 NUT, (torque to 990-1210 lb-ft/1342-1640 Nm) 6 7029760 1 CAPSCREW 7 91044080 1 GREASE FITTING 8 70021913 2 GREASE FITTING 102 7029871 2 BUSHING 202 7029872 1 BUSHING 301 Kit K1 or K3 1 PISTON SEAL 302 Kit K1 or K3 1 O-RING 303 Kit K1 or K3 2 WEAR RING 401 Kit K2 or K3 1 ROD SEAL 402 Kit K2 or K3 1 BACK-UP 403 Kit K2 or K3 1 BUFFER 404 Kit K2 or K3 1 WIPER 405 Kit K2 or K3 1 SEAL 406 Kit K2 or K3 1 WEAR RING 503 91471240 1 KEEPER PLATE 504 4891800 2 HARDENED WASHER, 1/2 505 0681810 2 HEX HD CAPSCREW, 1/2-13X1-1/4, GR8 508 1001142989 1 CYLINDER PIN 517 91513282 1 CYLINDER PIN
K1 7029873 1 PISTON SEAL KIT, (includes items 301 thru 303)
K2 7029874 1 ROD BEARING SEAL KIT, (includes items 401 thru 406)
K3 7029821 1 CYLINDER SEAL KIT, (includes items 301 thru 406)
