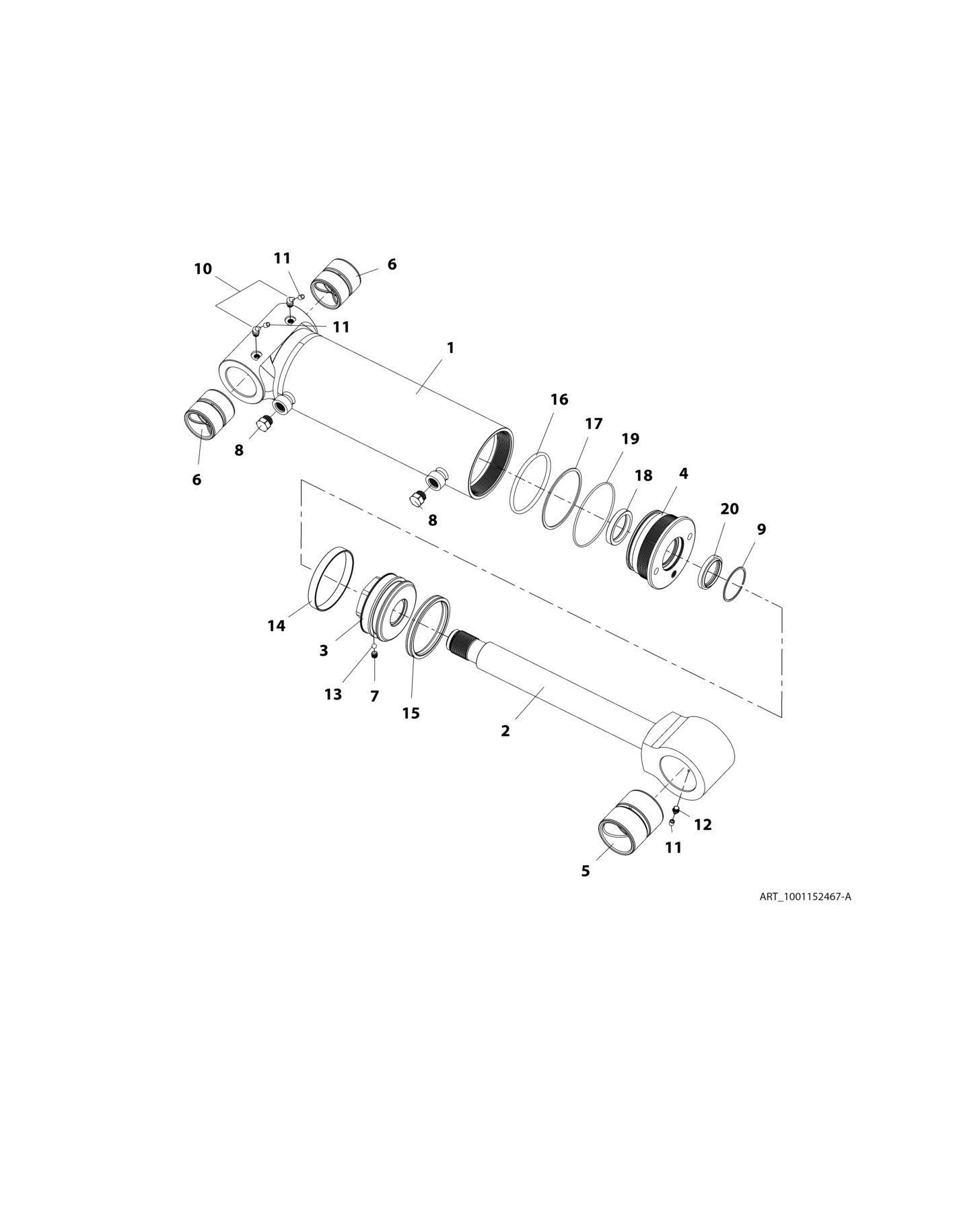

FIGURE 9 11. COMPENSATION CYLINDER G6 42A (SN 0160057586 to Present
ITEM PART NUMBER QTY DESCRIPTION REV
1001152467 1 COMPENSATION CYLINDER, (G6-42A), (includes items 1 thru 13) A 1 70025963 1 BARREL 2 70025964 1 ROD ASSY 3 70025952 1 PISTON ASSY 4 70025953 1 GLAND 5 70025954 1 BUSHING 6 70025955 2 BUSHING 7 70025956 1 LOCKING SCREW 8 70025965 2 BLANKING PLUG 9 70023101 1 SNAP RING 10 70025966 2 GREASE FITTING 11 70024020 3 GREASE FITTING 12 70025957 1 GREASE NIPPLE 13 70025614 1 BALL 14 Kit K1 or K3 1 PISTON HEAD BEARING RING 15 Kit K1 or K3 1 PISTON SEAL 16 Kit K1 or K3 1 O-RING 17 Kit K2 or K3 1 BACK-UP RING 18 Kit K2 or K3 1 ROD SEAL 19 Kit K1 or K3 1 O-RING 20 Kit K2 or K3 1 WIPER
K1 Kit K2 or K3 1 SEAL KIT
