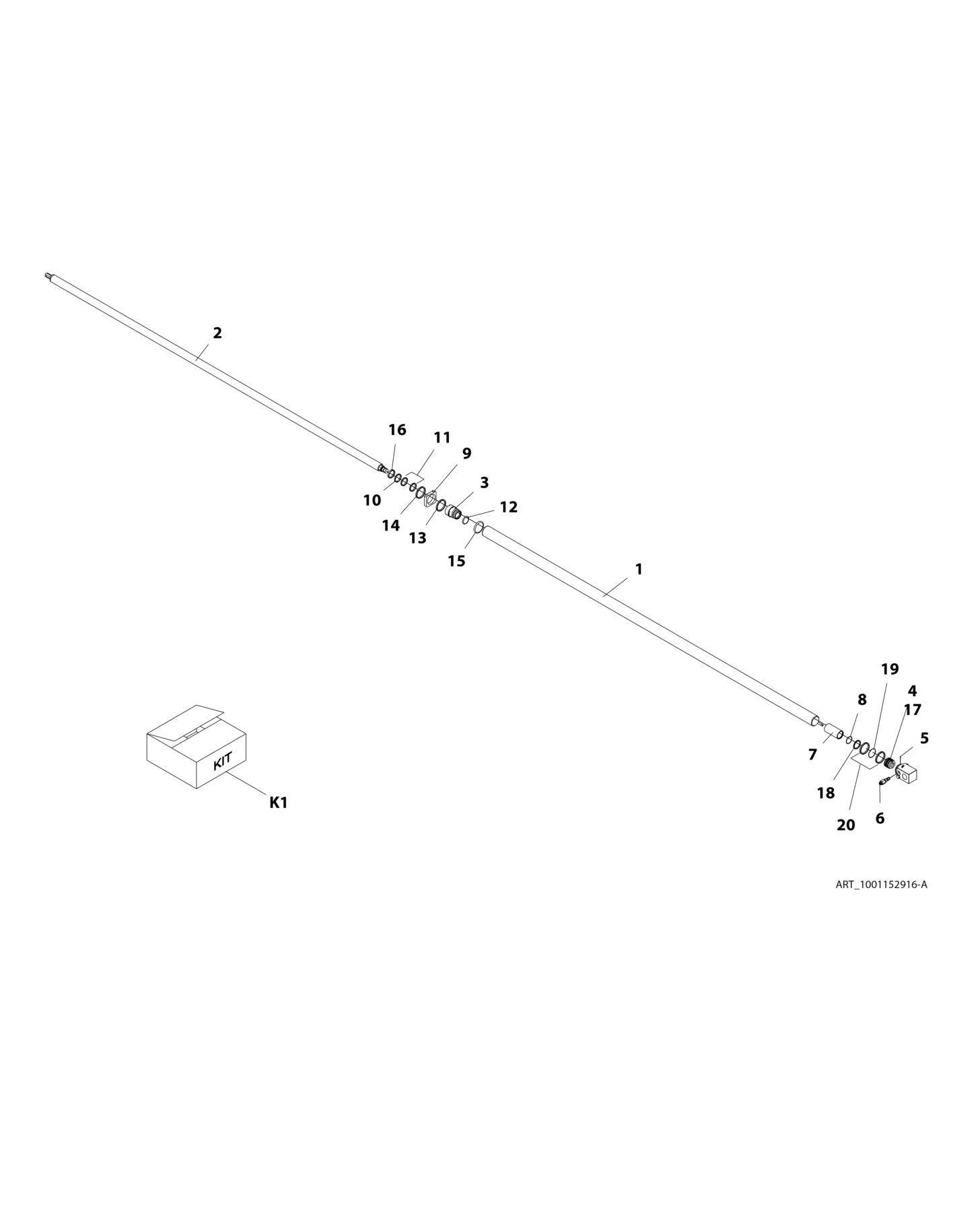

FIGURE 9 5. EXTEND/RETRACT CYLINDER G6 42A (SN 0160057307 to Present
ITEM PART NUMBER QTY DESCRIPTION REV
1001152916 1 EXTEND/RETRACT CYLINDER, (includes items 1 thru 20) B 1 70025320 1 BARREL ASSY 2 70025321 1 ROD ASSY 3 70025322 1 ROD GUIDE 4 70025323 1 PISTON 5 70023915 2 SCREW 6 1001109225 1 COUNTERBALANCE VALVE 7 70025324 1 SPACER 8 70025325 1 RING 9 70025326 1 WEAR RING 10 70025327 1 GLAND 11 Kit K1 2 BEARING 12 Kit K1 1 O-RING 13 Kit K1 1 BACK-UP RING 14 Kit K1 1 ROD SEAL 15 Kit K1 1 O-RING 16 Kit K1 1 WIPER 17 Kit K1 2 BEARING 18 Kit K1 1 PISTON SEAL 19 Kit K1 1 O-RING 20 Kit K1 2 BACK-UP RING
K1 70025328 1 SEAL KIT, (includes items 11 thru 20)
