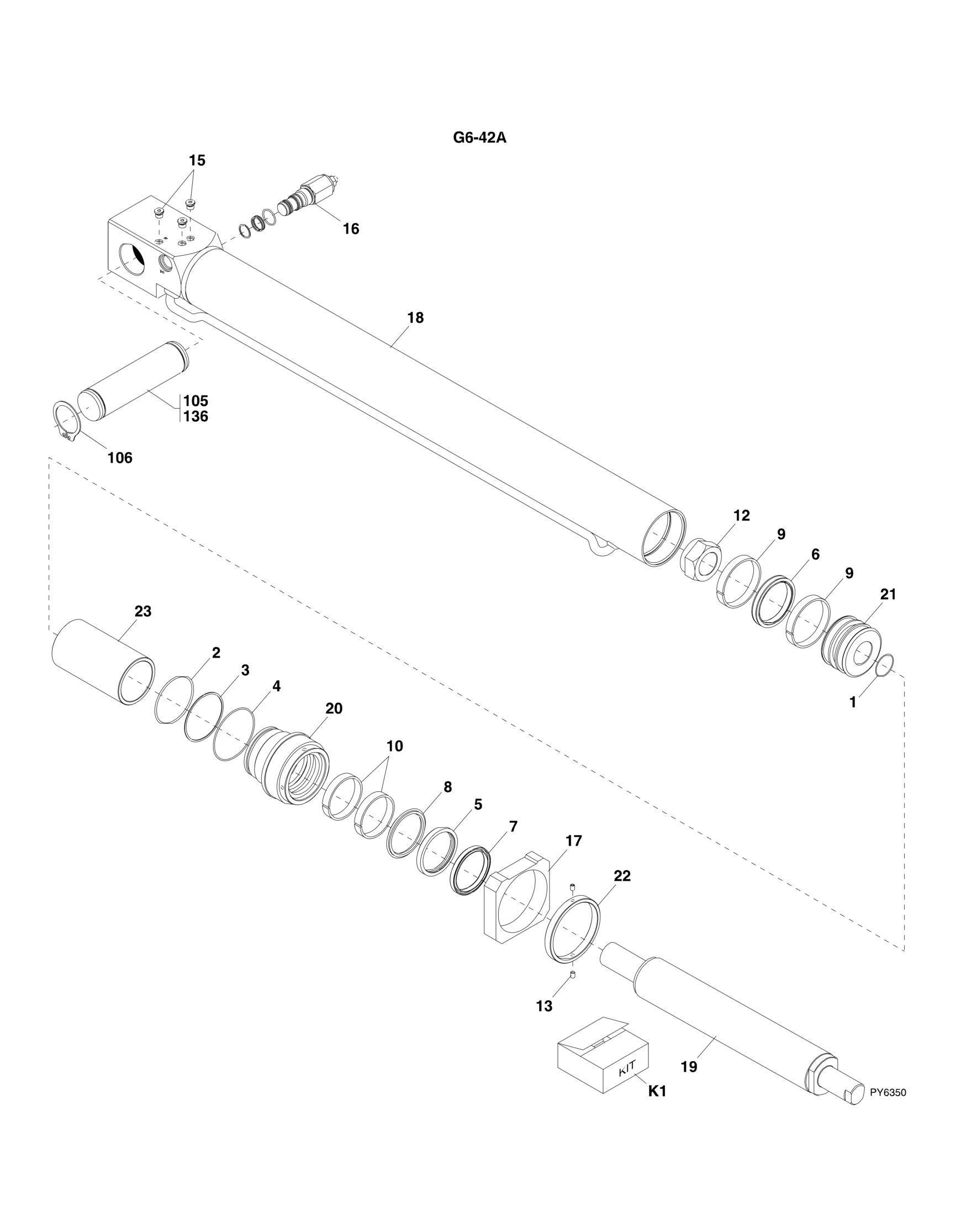

FIGURE 9-4. EXTEND/RETRACT CYLINDER G6-42A (Prior to SN 0160057307)

FIGURE 9-4. EXTEND/RETRACT CYLINDER G6-42A (Prior to SN 0160057307)

ITEM PART NUMBER QTY

DESCRIPTION

91473230 NLA EXTEND/RETRACT CYLINDER, (no longer available, use items 1 thru 23 for service) 1 Kit K1 1 O-RING 2 Kit K1 1 O-RING 3 Kit K1 1 BACK-UP RING 4 Kit K1 1 O-RING 5 Kit K1 1 SEAL 6 Kit K1 1 SEAL 7 Kit K1 1 WIPER 8 Kit K1 1 SEAL 9 Kit K1 2 WEAR RING 10 Kit K1 2 WEAR RING 12 7003226 1 LOCKNUT 13 70021774 2 SET SCREW 15 7005365 3 PORT PLUG 16 1001109225 1 COUNTERBALANCE VALVE 17 70021772 1 WEAR PAD 18 70021771 1 TUBE ASSY 19 70021770 1 ROD 20 70021769 1 HEAD 21 70021768 1 PISTON 22 70021767 1 COLLAR 23 70021766 1 SPACER 105 91403022 1 EXTEND/RETRACT CYLINDER PIN 106 88581149 2 RETAINING RING 136 14403323 AR NEVER SEEZE LUBE K1 70021775 1 SEAL KIT, (includes items 1 thru 10)

REV

C
