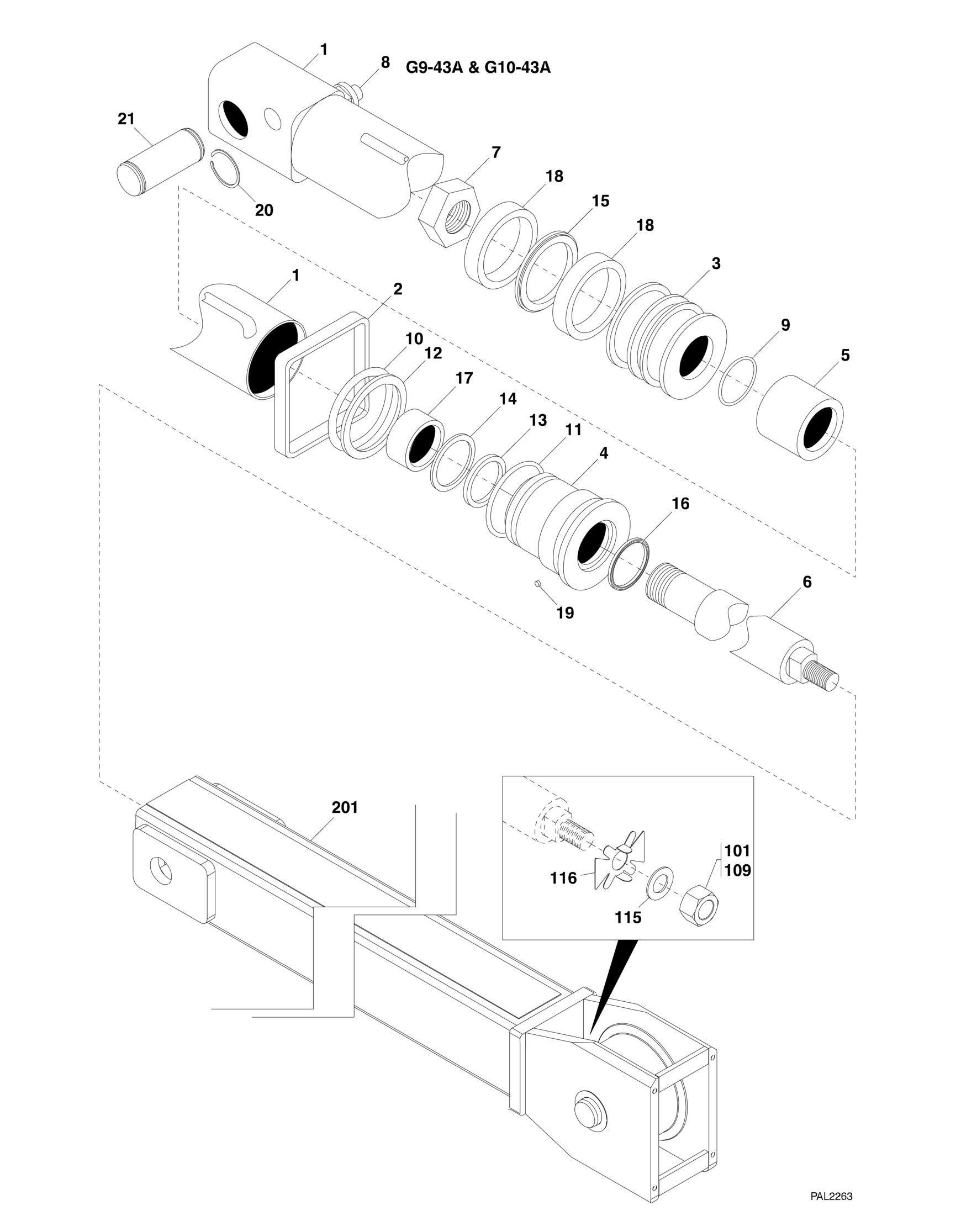

FIGURE 9 6. EXTEND/RETRACT CYLINDER G9 43A & G10 43A
ITEM PART NUMBER QTY
DESCRIPTION
91513276 1 EXTEND/RETRACT CYLINDER, (G9-43A & G10-43A), (includes items thru 19) 1 70022852 1 CASE ASSY 2 70022853 1 WEAR WASHER 3 70022854 1 PISTON 4 70022855 2 HEAD GLAND, (torque to 300-400 lb-ft/406-542 Nm) 5 70022856 1 ROD SPACER 6 70022857 1 SHAFT ASSY 7 8035865 1 LOCKNUT, (torque to 745-825 lb-ft/1010-1119 Nm) 8 4641312 1 HOLDING VALVE, (torque to 105-115 lb-ft/142-156 Nm) 8 91514251 1 SEAL KIT 9 Kit K1 1 O-RING 10 Kit K1 1 O-RING 11 Kit K1 1 O-RING 12 Kit K1 1 BACKUP RING 13 Kit K1 1 U-CUP 14 Kit K1 1 BUFFER SEAL 15 Kit K1 1 T-SEAL 16 Kit K1 1 WIPER 17 Kit K1 1 WEAR BAND 18 Kit K1 1 WEAR BAND 19 Kit K1 1 LOCKING INSERT 20 88581149 2 RETAINING RING 21 91141124 1 CYLINDER PIN 101 0100011 AR LOCTITE 242 109 88501022 1 HEX NUT, 1-3/8-12, (torque to 155-195 lb-ft/210-264 Nm) 115 91403065 1 WASHER 116 91511142 1 WASHER TAB 201 Ref PUSH BEAM/EXTEND CHAIN, (See PUSH BEAM/EXTEND CHAIN for Breakdown) K1 70022858 1 SEAL KIT, (includes items 9 thru 19)
REV
B
