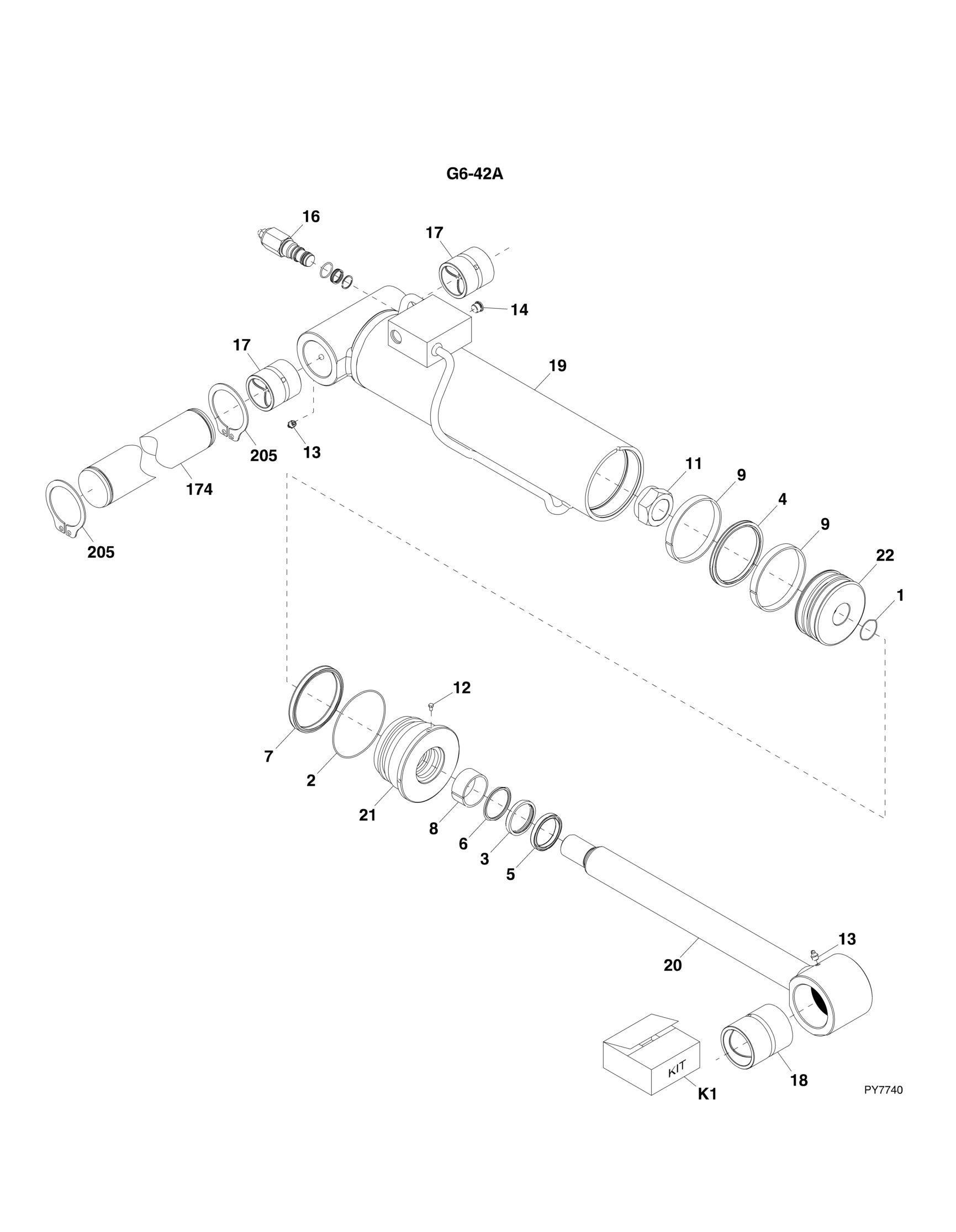

FIGURE 9 7. TILT CYLINDER G6 42A (Prior to SN 0160057406
ITEM PART NUMBER QTY
DESCRIPTION
91413156 1 TILT CYLINDER, (G6-42A), (includes items 1 thru 22) 1 Kit K1 1 O-RING 2 Kit K1 1 O-RING 3 Kit K1 1 SEAL 4 Kit K1 1 SEAL 5 Kit K1 1 WIPER 6 Kit K1 1 SEAL 7 Kit K1 1 SEAL 8 Kit K1 1 WEAR RING 9 Kit K1 2 WEAR RING 11 7003226 1 LOCKNUT, (torque to 1125-1375 lb-ft/1525-1864 Nm) 12 70021630 1 SELF-TAPPING SCREW 13 7003242 3 LUBE FITTING 14 70021648 1 PORT PLUG 16 1001109225 1 COUNTERBALANCE VALVE, (torque to 44 lb-ft/60 Nm) 17 70021763 2 BUSHING 18 70021765 1 BUSHING 19 70021762 1 TUBE ASSY 20 70021761 1 ROD ASSY 21 70021760 1 HEAD 22 70021759 1 PISTON 174 1001098223 1 CYLINDER PIN 205 88581149 2 RETAINING RING K1 70021764 1 SEAL KIT, (includes items 1 thru 9)
REV
B
