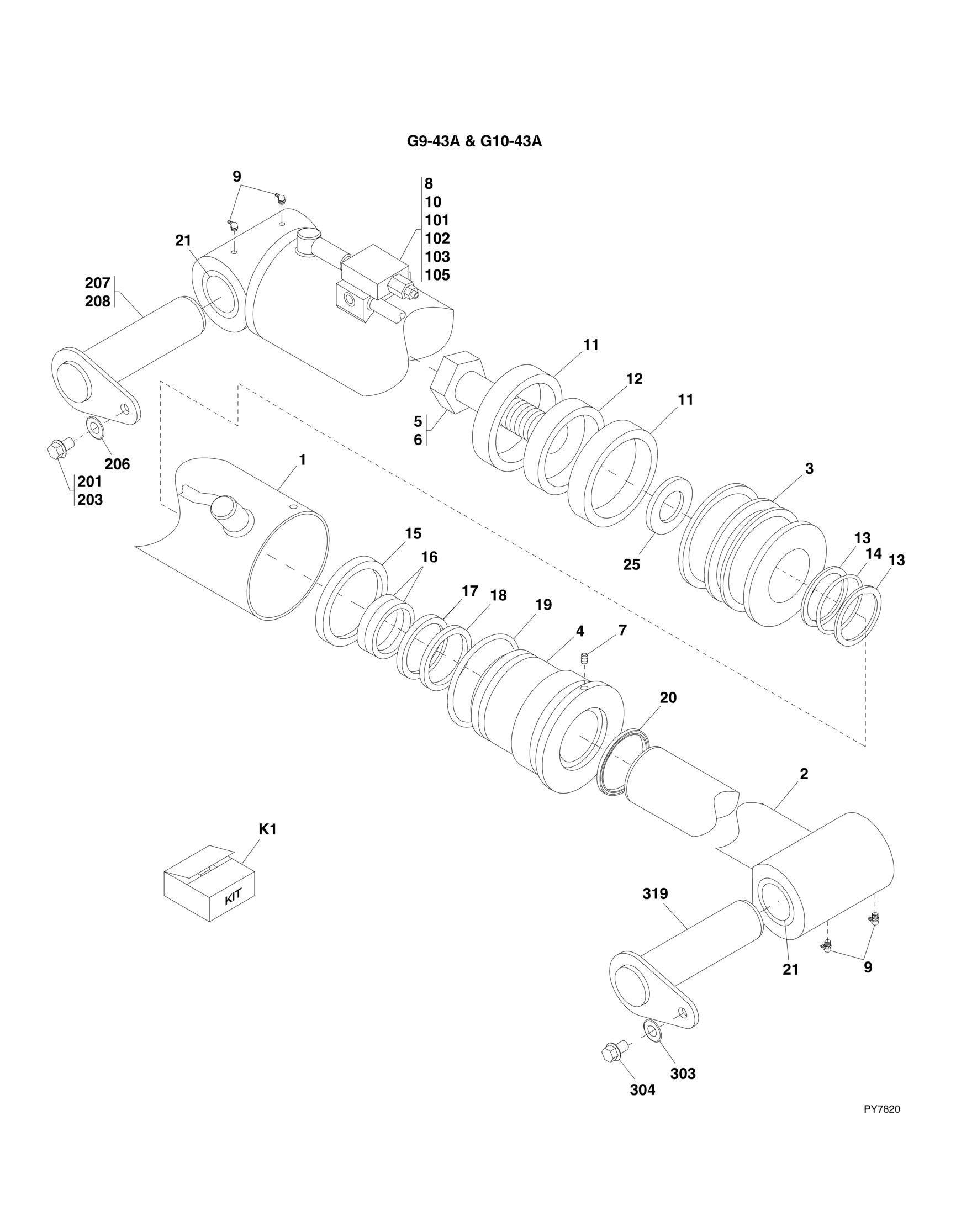

FIGURE 9 3. LIFT CYLINDER G9 43A & G10 43A

FIGURE 9-3. LIFT CYLINDER G9-43A & G10-43A

FIGURE 9-3. LIFT CYLINDER G9-43A & G10-43A

ITEM PART NUMBER QTY DESCRIPTION REV

1001108380 1 LIFT CYLINDER, (G9-43A & G10-43A), (includes items 1 thru 105) E 1001103347 Ref LIFT CYLINDER, (not sold separately, use 1001108380 for E replacement or use items 1 thru 21 for service) 1 70024266 1 BARREL ASSY 2 70022058 1 ROD ASSY, (includes item 21) 3 70022059 1 PISTON ASSY 4 70022060 1 ROD BEARING ASSY 5 70023293 1 CAPSCREW 6 70022292 1 WASHER 7 7029760 1 CAPSCREW 8 70024267 2 O-RING 9 91044080 4 GREASE FITTING 10 70024268 4 CAPSCREW 11 Kit K1 2 WEAR RING 12 Kit K1 1 PISTON SEAL 13 Kit K1 2 BACK-UP RING 14 Kit K1 1 O-RING 15 Kit K1 1 PISTON SEAL 16 Kit K1 2 WEAR RING 17 Kit K1 1 BUFFER SEAL 18 Kit K1 1 ROD SEAL 19 Kit K1 1 O-RING 20 Kit K1 1 WIPER 21 70022062 4 BUSHING 101 0100011 AR LOCTITE 242 102 2131212 2 ELBOW, 90, (includes o-ring) 103 4031913 4 SOCKET HD CAPSCREW, M8X45 105 1001125714 1 HOLDING VALVE CARTRIDGE 201 0100011 AR LOCTITE 242 203 0682010 1 HEX HD CAPSCREW, 5/8-11X1-1/4 206 4892000 1 HARDENED WASHER, 5/8 207 14403323 AR NEVER-SEEZ LUBE 208 91513279 1 CYLINDER PIN 303 4892000 1 HARDENED WASHER, 5/8 304 0682010 1 HEX HD CAPSCREW, 5/8-11X1-1/4 319 1001101706 1 CYLINDER PIN

K1 70022061 1 SEAL KIT, (includes items 11 thru 20)
