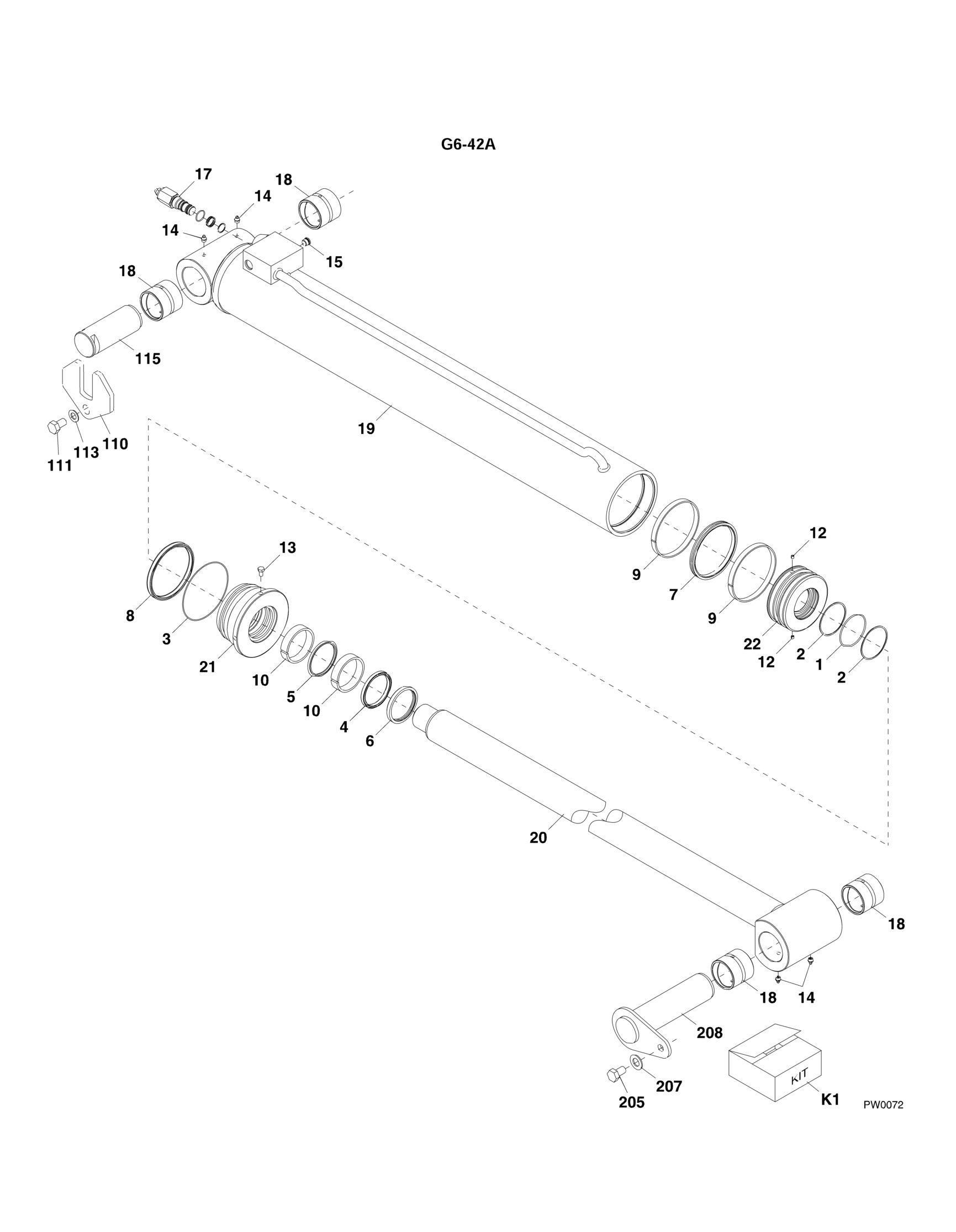

FIGURE 9 1. LIFT CYLINDER G6 42A (Prior to SN 0160052707
ITEM PART NUMBER QTY
DESCRIPTION
1001101280 1 LIFT CYLINDER, (G6-42A), (includes items 1 thru 22) 1 Kit K1 1 O-RING 2 Kit K1 2 BACK-UP 3 Kit K1 1 O-RING 4 Kit K1 1 SEAL 5 Kit K1 1 SEAL 6 Kit K1 1 WIPER 7 Kit K1 1 SEAL 8 Kit K1 1 SEAL 9 Kit K1 2 WEAR RING 10 Kit K1 2 WEAR RING 12 70021757 2 SET SCREW 13 70021630 1 SELF TAPPING SCREW 14 7003242 4 LUBE FITTING 15 70021648 1 PORT PLUG 17 70023324 1 VALVE 18 70021756 4 BUSHING 19 70021958 1 TUBE ASSY 20 70021754 1 ROD ASSY 21 70021957 1 HEAD 22 70021752 1 PISTON 110 91471240 1 KEEPER PLATE 111 0681810 1 HEX HD CAPSCREW, 1/2-13X1-1/4, GR8, (torque to 100-110 lb-ft) 113 4891800 1 HARD WASHER, 1/2 115 91473233 1 LIFT CYLINDER PIN 205 0681810 1 HEX HD CAPSCREW, 1/2-13X1-1/4, GR8 207 4891800 1 HARD WASHER, 1/2 208 1001101703 1 LIFT CYLINDER PIN K1 70021758 1 SEAL KIT, (includes items 1 thru 10)
