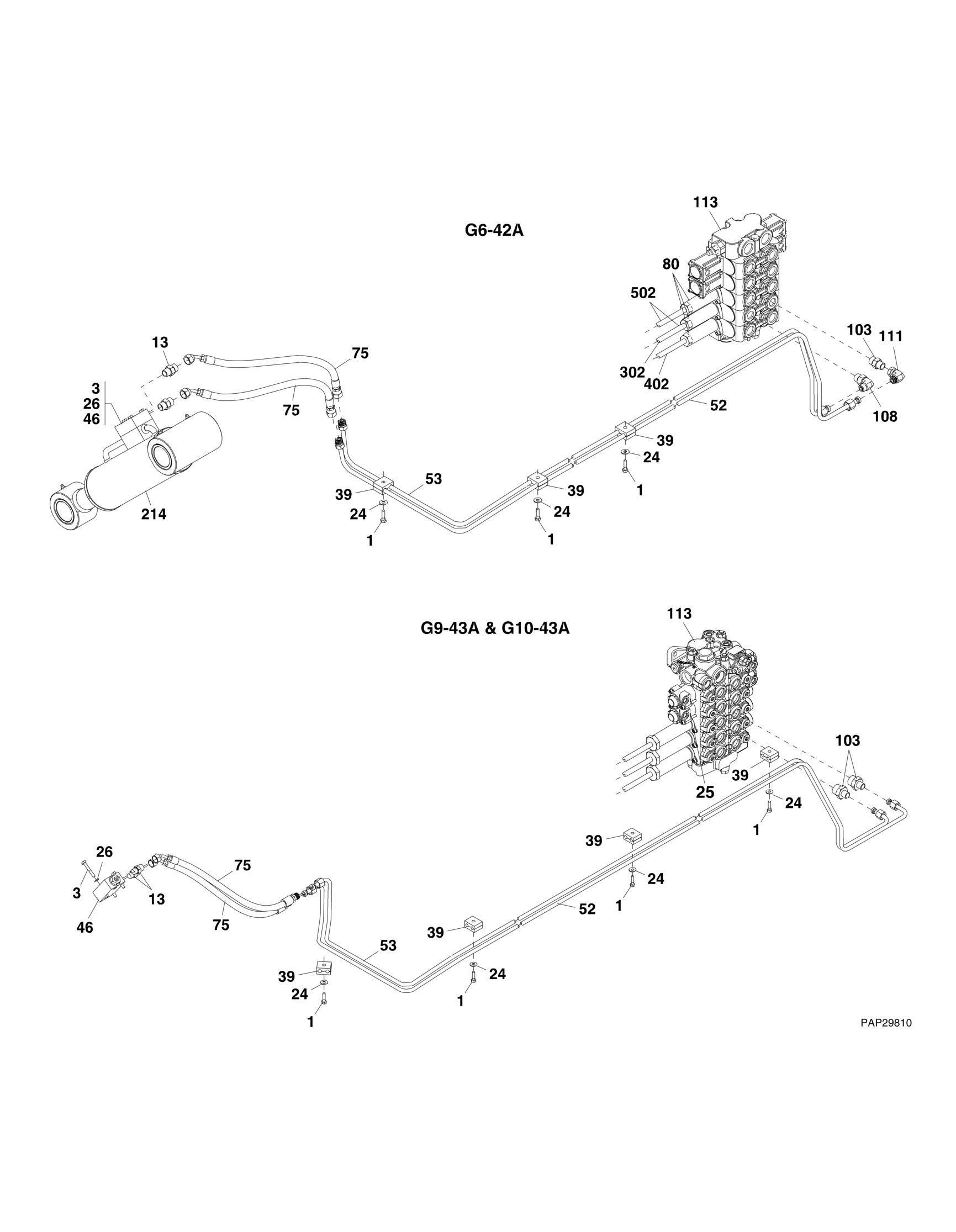

FIGURE 8 18. FRAME LEVEL CIRCUIT
FIGURE 8-18. FRAME LEVEL CIRCUIT
FIGURE 8-18. FRAME LEVEL CIRCUIT
ITEM PART NUMBER QTY
DESCRIPTION
1 0641408 3 HEX HD CAPSCREW, 1/4-20X1, GR5, (G6-42A) 1 0641408 4 HEX HD CAPSCREW, 1/4-20X1, GR5, (G9-43A & G10-43A) 3 0641414 3 HEX HD CAPSCREW, 1/4-20X1-3/4, GR5 13 2110606 2 ADAPTER, CONNECTOR, (includes o-ring) 24 4751400 3 WASHER, 1/4, (G6-42A) 24 4751400 4 WASHER, 1/4, (G9-43A & G10-43A) 25 4031709 2 HEX SOC HD SCR, M6 X 25 LG, (G9-43A, if equipped with tilt on joystick), (G10-43A) 26 4761400 3 LOCKWASHER, 1/4 39 77133270 3 CLAMP SET, (G6-42A) 39 77133270 4 CLAMP SET, (G9-43A & G10-43A) 46 91473188 1 FRAME LEVEL CYLINDER VALVE 52 1001101615 1 HYDRAULIC PIPE, (G6-42A) 52 1001105339 1 HYDRAULIC PIPE, (G9-43A & G10-43A) 53 1001101616 1 HYDRAULIC PIPE, (G6-42A) 53 1001105338 1 HYDRAULIC PIPE, (G9-43A & G10-43A) 75 1001096957 2 HOSE ASSEMBLY, (G6-42A) 75 1001118560 2 HOSE ASSEMBLY, (G9-43A & G10-43A) 80 91123062 3 CABLE ADAPTER BONNET, (G6-42A) 80 91513124 3 CABLE ADAPTER BONNET, (G9-43A) 80 91513124 1 CABLE ADAPTER BONNET, (G9-43A, if equipped with tilt on joystick), (G10-43A) 103 2110608 1 ADAPTER, CONNECTOR, (includes o-ring), (G6-42A) 103 2110612 2 ADAPTER, CONNECTOR, (includes o-ring), (G9-43A & G10-43A) 108 2130608 1 ADAPTER, 90, (includes o-ring) 111 2172106 1 ADAPTER, 90, (includes o-ring) 113 Ref MAIN CONTROL VALVE, (See HYDRAULIC COMPONENTS SECTION for Breakdown)
214 Ref FRAME LEVEL CYLINDER, (See HYDRAULIC COMPONENTS SECTION for Breakdown)
302 Ref FRAME LEVEL CONTROL, (See CONTROLS SECTION for Breakdown)
402
502 Ref AUXILIARY HYDRAULIC CONTROL, (See CONTROLS SECTION for Breakdown) Ref TILT AND FRAME LEVEL CONTROL, (See CONTROLS SECTION for Breakdown)
