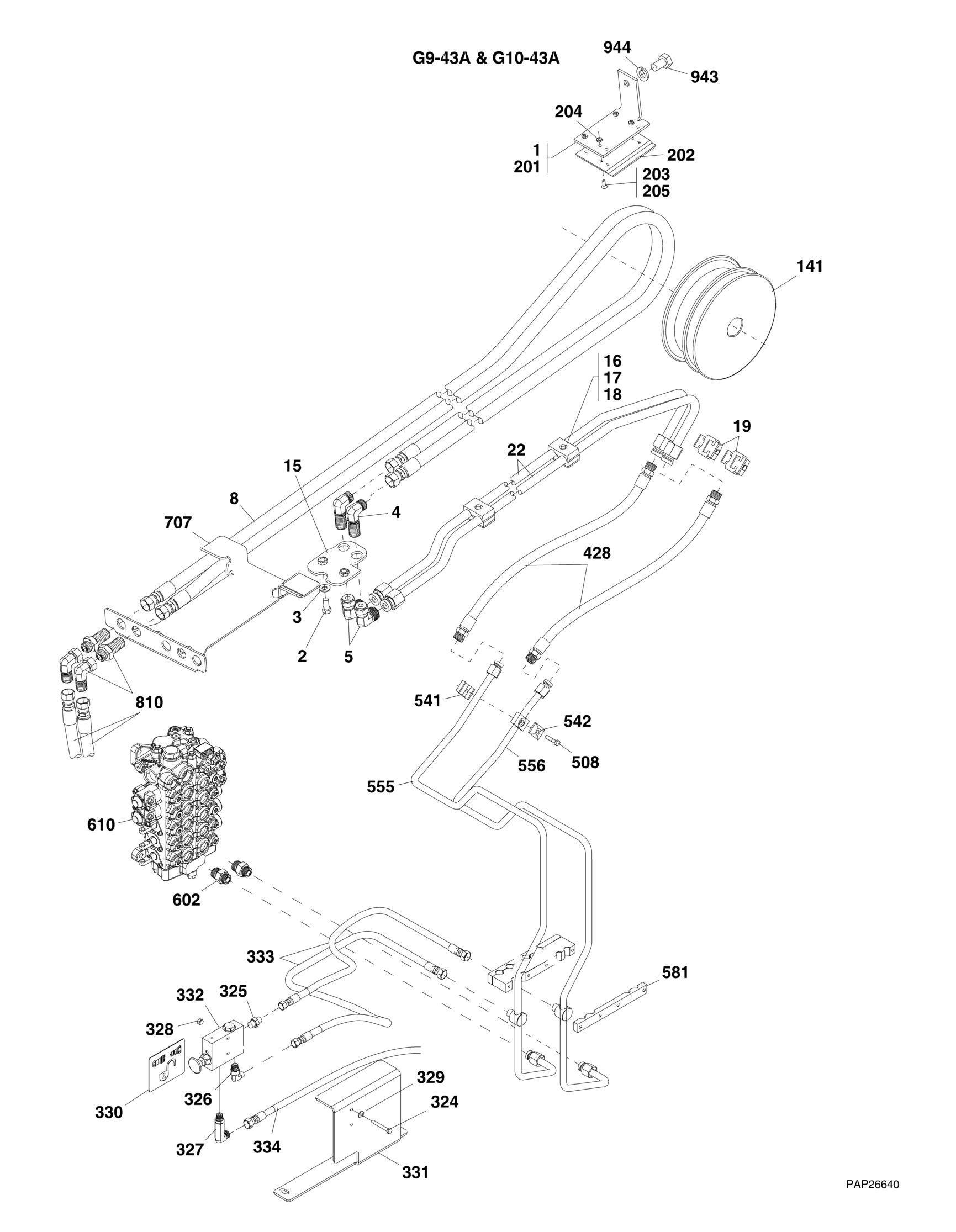

FIGURE 8 17. AUXILIARY HYDRAULIC CIRCUIT G9 43A & G10 43A
ITEM PART NUMBER QTY
DESCRIPTION
1 91515028 1 HOSE RETAINER ASSY, (includes items 201 thru 205) 2 0641607 2 HEX HD CAPSCREW, 3/8-16X7/8, GR5 3 4711600 2 FLAT WASHER, 3/8 4 2171208 2 BULKHEAD, 90 5 2221254 2 ELBOW, 90, (swivel nut) 8 1001102977 1 TWIN LINE HOSE 15 1001090126 1 HOSE BRACKET 16 77133139 4 CLAMP SET 17 77133140 4 COVER PLATE 18 77133177 4 HEX BOLT, 5/16X1-3/8 19 91083217 2 CLAMP 22 1001001341 2 TUBE ASSY 26 2172108 2 ADAPTER, 90, (includes o-ring), (not shown) 141 3580346 1 HOSE PULLEY 201 91511111 1 HOSE RETAINER 202 91513026 1 PAD 203 88241023 4 FLAT HD SCREW, #10-24X5/8 204 88501612 4 HEX NUT, #10-24 205 14404102 AR LOCTITE 277 324 0641416 2 HEX HD CAPSCREW, 1/4-20X2, GR5 325 2110406 1 ADAPTER, CONNECTOR, (includes o-ring) 326 2130406 1 ADAPTER, 90, (includes o-ring) 327 2170206 1 ADAPTER, 90, (long), (includes o-ring) 328 3311401 2 HEX NUT, 1/4-20 329 4761400 2 LOCKWASHER, 1/4 330 91503112 1 DECOMPRESSION VALVE DECAL 331 1001143207 1 DECOMPRESSION VALVE MOUNT PLATE 332 1001143273 1 DECOMPRESSION VALVE 333 1001143803 2 HOSE ASSY 334 1001143809 1 HOSE ASSY 428 1001098874 2 HOSE ASSY 508 0641511 1 HEX HD CAPSCREW, 5/16-18X1-3/8, GR5 541 77133139 1 CLAMP SET 542 77133140 1 COVER PLATE 555 1001143121 1 PIPE ASSY 556 1001143122 1 PIPE ASSY 581 Ref TUBES CLAMP, (See LIFT CYLINDER CIRCUIT for Breakdown) 602 2111012 2 CONNECTOR, (includes o-ring) 610 Ref MAIN CONTROL VALVE, (See HYDRAULIC COMPONENTS SECTION for Breakdown)
707
Ref HOSE SUPPORT, (See TILT CYLINDER AND COMPENSATING CYLINDER CIRCUIT for Breakdown) 810 Ref HYDRAULIC INSTALLATION, (See BOOM SECTION for Breakdown) 943 0641832 1 HEX HD CAPSCREW, 1/2-13X4, GR5 944 4761800 1 LOCKWASHER, 1/2
REV
D
