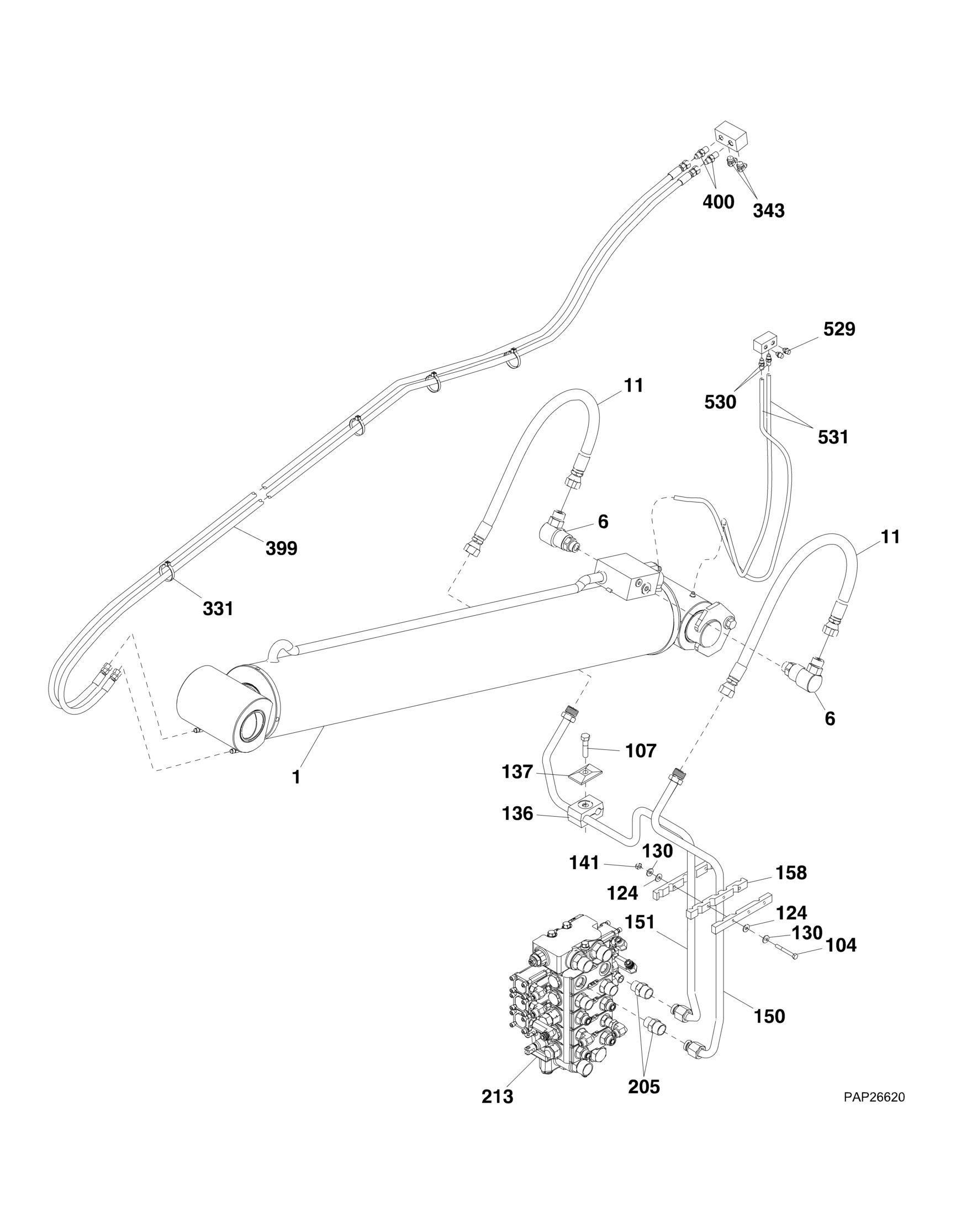

FIGURE 8 11. LIFT CYLINDER CIRCUIT
FIGURE 8-11. LIFT CYLINDER CIRCUIT
FIGURE 8-11. LIFT CYLINDER CIRCUIT
ITEM PART NUMBER QTY
DESCRIPTION
1 Ref LIFT CYLINDER, (See HYDRAULIC COMPONENTS SECTION for Breakdown) 6 1001001250 2 FITTING, 90, (G6-42A) 6 2131212 2 FITTING, 90, (G9-43A & G10-43A) 11 1001098560 2 HOSE ASSY, (G6-42A) 11 1001105159 2 HOSE ASSY, (G9-43A & G10-43A) 104 0641418 3 HEX HD CAPSCREW, 1/4-20X 1/4, GR52, (G6-42A) 104 0641430 4 HEX HD CAPSCREW, 1/4-20X3-3/4, GR5 (G9-43A & G10-43A) 107 0641511 1 HEX HD CAPSCREW, 5/16-18X1-3/8, GR5 124 4751400 8 WASHER, 1/4 130 4761400 4 LOCKWASHER, 1/4 (G9-43A & G10-43A) 136 77133139 1 CLAMP SET 137 77133140 1 COVER PLATE 141 3311401 4 HEX NUT, 1/4-20 (G6-42A) 150 88521304 1 HEX NUT, 1/4-20, (G9-43A & G10-43A) 150 1001098932 1 TUBE ASSEMBLY, (G6-42A) 150 1001113495 1 TUBE ASSEMBLY, (G9-43A & G10-43A) 151 1001098933 1 TUBE ASSEMBLY, (G6-42A) 151 1001113496 1 TUBE ASSEMBLY, (G9-43A & G10-43A) 158 1001117929 1 CLAMP, (G6-42A) 158 1001126756 1 CLAMP (G9-43A & G10-43A) 205 2111010 2 ADAPTER, CONNECTOR, (includes o-ring), (G6-42A) 205 2111212 2 STRAIGHT FITTING, (includes o-ring), (G9-43A & G10-43A) 213 Ref MAIN CONTROL VALVE, (See HYDRAULIC COMPONENTS SECTION for Breakdown) 331 86683122 6 TIE-WRAP 343 2160001 2 GREASE FITTING, 1/8, (G6-42A) 343 2160002 2 GREASE FITTING, 1/8, (G9-43A & G10-43A) 399 84718545 2 HYDRAULIC HOSE 400 88661002 2 ADAPTER, CONNECTOR 529 2160002 2 GREASE FITTING, STRAIGHT, (G9-43A & G10-43A) 530 88661002 2 ADAPTER, CONNECTOR, (G9-43A & G10-43A) 531 84719940 2 GREASE HOSE, (G9-43A & G10-43A)
