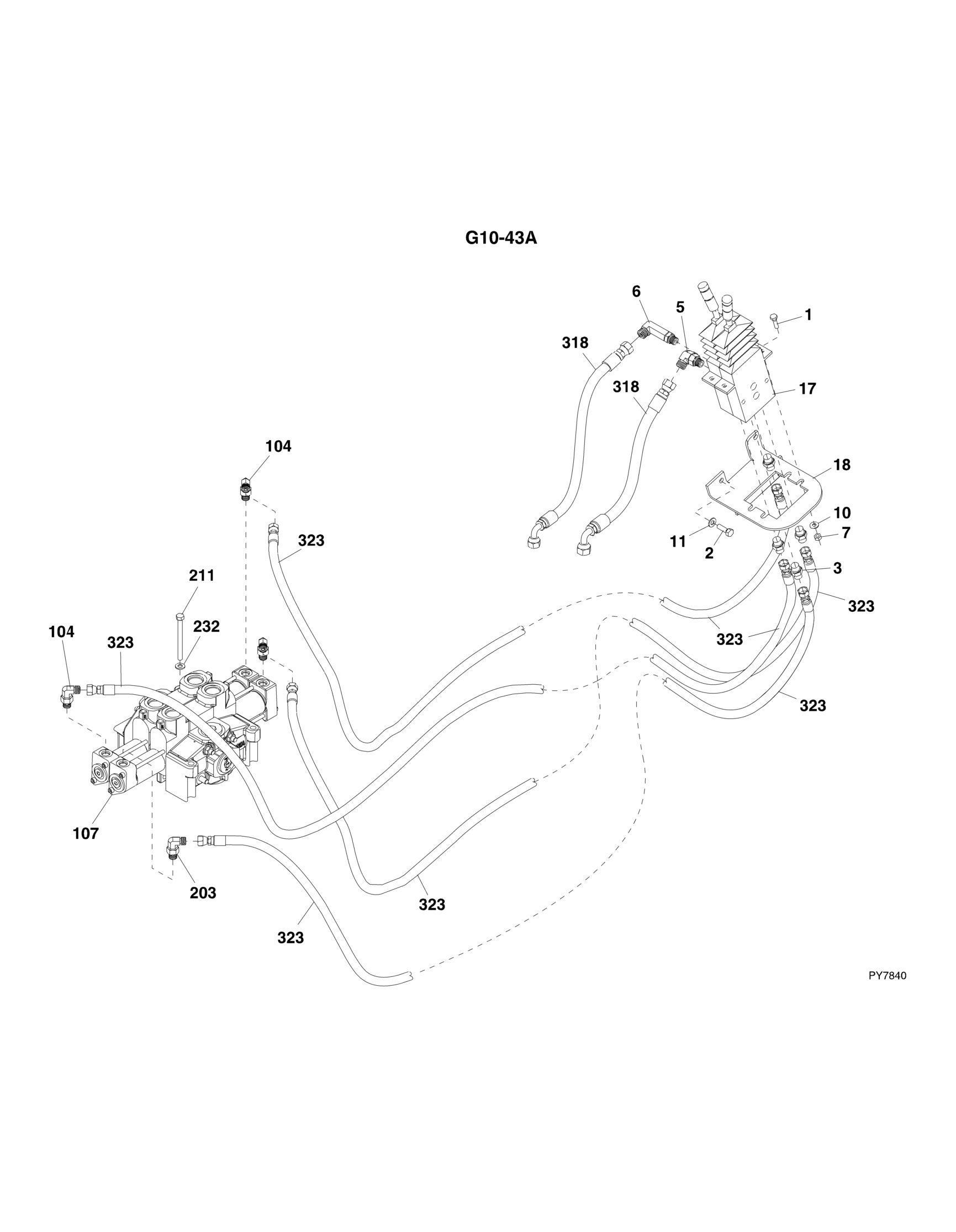

FIGURE 8 10. OUTRIGGER CONTROLLER
FIGURE 8-10. OUTRIGGER CONTROLLER
FIGURE 8-10. OUTRIGGER CONTROLLER
ITEM PART NUMBER QTY
DESCRIPTION
1 0641408 4 HEX HD CAPSCREW, 1/4-20X1, GR5 2 0641508 3 HEX HD CAPSCREW, 5/16-18X1, GR5 3 2110406 4 ADAPTER, CONNECTOR, (includes o-ring) 5 2130606 1 ADAPTER, 90, (includes o-ring) 6 2170206 1 ADAPTER, 90, (includes o-ring) 7 3311405 4 HEX LOCKNUT, 1/4-20 10 4711400 4 WASHER, 1/4 11 4711500 3 WASHER, 5/16 17 Ref CONTROLLER, (See CONTROLS SECTION for Breakdown) 18 1001090021 1 BRACKET 104 2130406 4 ADAPTER, 90, (includes o-ring) 107 Ref OUTRIGGER VALVE ASSY, (See HYDRAULIC COMPONENTS SECTION for Breakdown) 211 0641520 3 HEX HD CAPSCREW, 5/16-18X2-1/2, GR5 232 4711500 3 WASHER, 5/16 318 Ref HOSE ASSY, (See BOOM JOYSTICK CIRCUIT for Breakdown) 323 1001136489 4 HOSE ASSY
