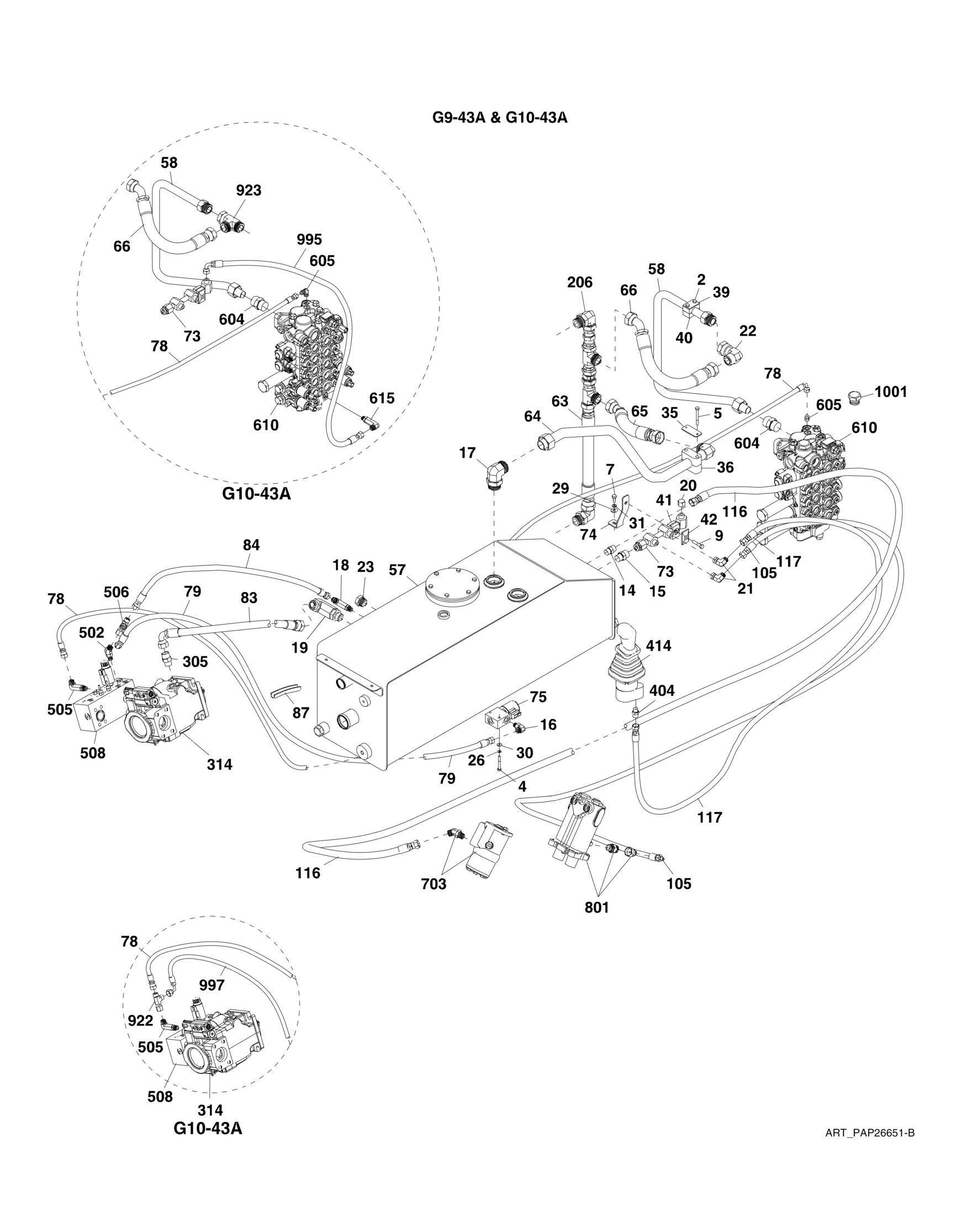

FIGURE 8 4. DUMP CIRCUIT G9 43A & G10 43A
FIGURE 8-4. DUMP CIRCUIT G9-43A & G10-43A
FIGURE 8-4. DUMP CIRCUIT G9-43A & G10-43A
ITEM PART NUMBER QTY
DESCRIPTION
2 0641412 2 HEX HD CAPSCREW, 1/4-20X1-1/2, GR5 4 0641416 2 HEX HD CAPSCREW, 1/4-20X2, GR5 5 0641420 2 HEX HD CAPSCREW, 1/4-20X2-1/2, GR5 7 0641506 1 HEX HD CAPSCREW, 5/16-18X3/4, GR5 9 0641512 1 HEX HD CAPSCREW, 5/16-18X1-1/2, GR5 14 2110808 1 ADAPTER, CONNECTOR, (includes o-ring) 15 2111010 1 ADAPTER, CONNECTOR, (includes o-ring) 16 2130606 1 ADAPTER, 90, (includes o-ring) 17 2132020 1 ADAPTER, 90, (includes o-ring) 18 2170206 1 ADAPTER, 90, (long), (includes o-ring) 19 2170212 1 ADAPTER, 90, (long), (includes o-ring 20 2170906 1 ADAPTER, CAP 21 2172106 2 ADAPTER, 90, (includes o-ring) 22 2172116 1 ADAPTER, 90, (includes o-ring) 23 2220240 1 ADAPTER, PLUG 26 4711400 2 WASHER 29 4751500 1 WASHER, 5/16 30 4761400 2 LOCKWASHER, 1/4 31 4761500 1 LOCKWASHER, 5/16 35 8750001 1 COVER PLATE 36 8750005 1 CLAMP SET 39 77133052 1 COVER PLATE 40 77133073 1 CLAMP 41 77133139 1 CLAMP SET 42 77133140 1 COVER PLATE 57 Ref HYDRAULIC TANK, (See HYDRAULIC COMPONENTS SECTION for Breakdown) 58 1001122407 1 INLET PIPE 63 1001130065 1 HOSE ASSY 64 1001130085 1 RETURN PIPE 65 1001130126 1 HOSE ASSY 66 1001130127 1 HOSE ASSY 73 1001133896 1 RETURN PIPE 74 1001134142 1 WELD BRACKET 75 1001136501 1 PRESSURE REDUCING VALVE 78 1001136955 1 HOSE ASSY 78 1001136955 1 HOSE ASSY, (G9-43A, if equipped with tilt on joystick), (G10-43A) 79 1001136977 1 HOSE ASSY 83 1001130904 1 HOSE ASSY 84 1001130905 1 HOSE ASSY 105 1001134210 1 HOSE ASSY 116 1001132112 1 HOSE ASSY 117 1001132383 1 HOSE ASSY 117 Ref HOSE ASSY, (G9-43A, if equipped with tilt on joystick), (G10-43A), (See BOOM JOYSTICK CIRCUIT for Breakdown) 206 Ref ADAPTER, 90, (See ENGINE AND ATTACHING PARTS SECTION for Breakdown) 305 2111010 1 ADAPTER, CONNECTOR, (includes o-ring) 314 Ref HYDRAULIC PUMP, (See HYDRAULIC COMPONENTS SECTION for Breakdown)
REV
ITEM PART NUMBER QTY DESCRIPTION
404
