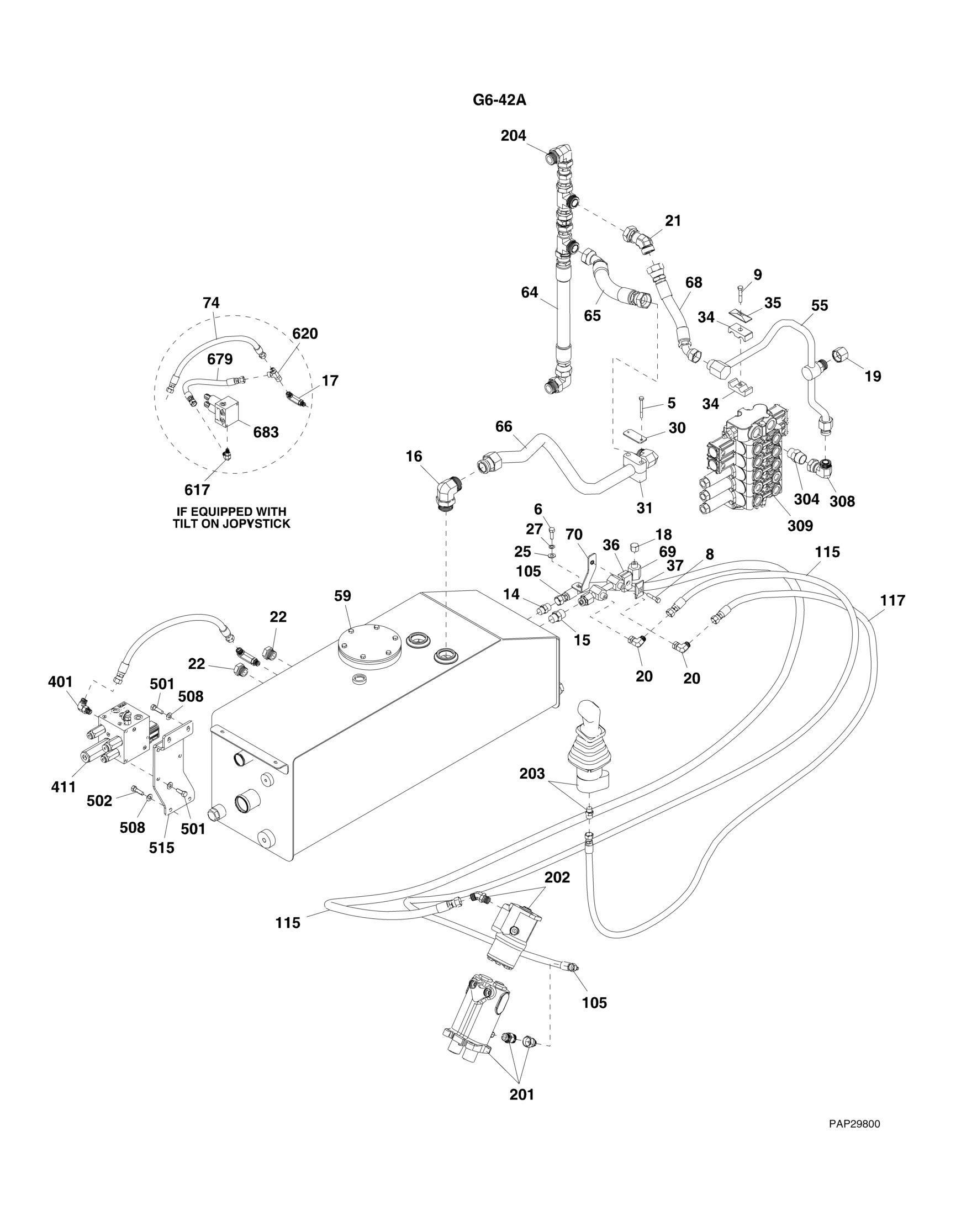

FIGURE 8 3. DUMP CIRCUIT G6 42A
FIGURE 8-3. DUMP CIRCUIT G6-42A
FIGURE 8-3. DUMP CIRCUIT G6-42A
ITEM PART NUMBER QTY
DESCRIPTION
5 0641420 2 HEX HD CAPSCREW, 1/4-20X2-1/2, GR5 6 0641506 1 HEX HD CAPSCREW, 5/16-18X3/4, GR5 8 0641512 1 HEX HD CAPSCREW, 5/16-18X1-1/2, GR5 9 0641514 1 HEX HD CAPSCREW, 5/16-18X1-3/4, GR5 14 2110808 1 ADAPTER, CONNECTOR, (includes o-ring) 15 2111010 1 ADAPTER, CONNECTOR, (includes o-ring) 16 2132020 1 ADAPTER, 90, (includes o-ring) 17 2170206 1 ADAPTER, 90, (includes o-ring) 18 2170906 1 ADAPTER, CAP 19 2170912 1 ADAPTER, CAP 20 2172106 2 ADAPTER, 90, (includes o-ring) 21 2172316 1 ADAPTER, 45, (includes o-ring) 22 2220240 2 ADAPTER, PLUG 25 4751500 1 WASHER, 5/16 27 4761500 1 LOCKWASHER, 5/16 30 8750001 1 COVER PLATE 31 8750005 1 CLAMP SET 34 77133136 1 TWIN CLAMP 35 77133137 1 CLAMP SET 36 77133139 1 CLAMP SET 37 77133140 1 COVER PLATE 55 1001106786 1 HYDRAULIC PIPE 59 Ref HYDRAULIC TANK, (See HYDRAULIC COMPONENTS SECTION for Breakdown) 64 1001130065 1 HOSE ASSY 65 1001130126 1 HOSE ASSY 66 1001132126 1 HYDRAULIC RETURN PIPE 68 1001133267 1 HOSE ASSY 69 1001133896 1 HYDRAULIC RETURN PIPE 70 1001134142 1 BRACKET 74 1001134969 1 HOSE ASSY 105 1001134210 1 HOSE ASSY 115 1001132112 1 HOSE ASSY 117 1001132383 1 HOSE ASSY 201 Ref BRAKE VALVE, (See CONTROLS SECTION for Breakdown) 202 Ref STEERING CONTROL VALVE, (See CONTROLS SECTION for Breakdown)
203
Ref BOOM JOYSTICK, (See CONTROLS SECTION for Breakdown) 204 Ref RADIATOR, (See ENGINE AND ATTACHING PARTS SECTION for Breakdown) 304 2111212 1 ADAPTER, CONNECTOR, (includes o-ring) 308 2172112 1 ADAPTER, 90, (includes o-ring) 309 Ref MAIN CONTROL VALVE, (See HYDRAULIC COMPONENTS SECTION for Breakdown) 401 2130606 1 ADAPTER, 90, (includes o-ring) 411 Ref PRIORITY VALVE, (See HYDRAULIC COMPONENTS SECTION for Breakdown) 501 0641608 5 HEX HD CAPSCREW, 3/8-16X1, GR5 502 0641610 2 HEX HD CAPSCREW, 3/8-16X1-1/4, GR5 508 4711600 7 WASHER, 3/8 515 1001134990 1 VALVE MOUNT PLATE
REV
ITEM PART NUMBER QTY
DESCRIPTION
617 2130604 1 ADAPTER, 90, (includes o-ring), (if equipped with tilt on joystick) 620 2170706 1 ADAPTER, RUN TEE, (includes o-ring), (if equipped with tilt on joystick) 679 1001135904 1 HOSE ASSY, (if equipped with tilt on joystick) 683 Ref TILT VALVE SOLENOID, (if equipped with tilt on joystick) , (See HYDRAULIC COMPONENTS SECTION for Breakdown)
