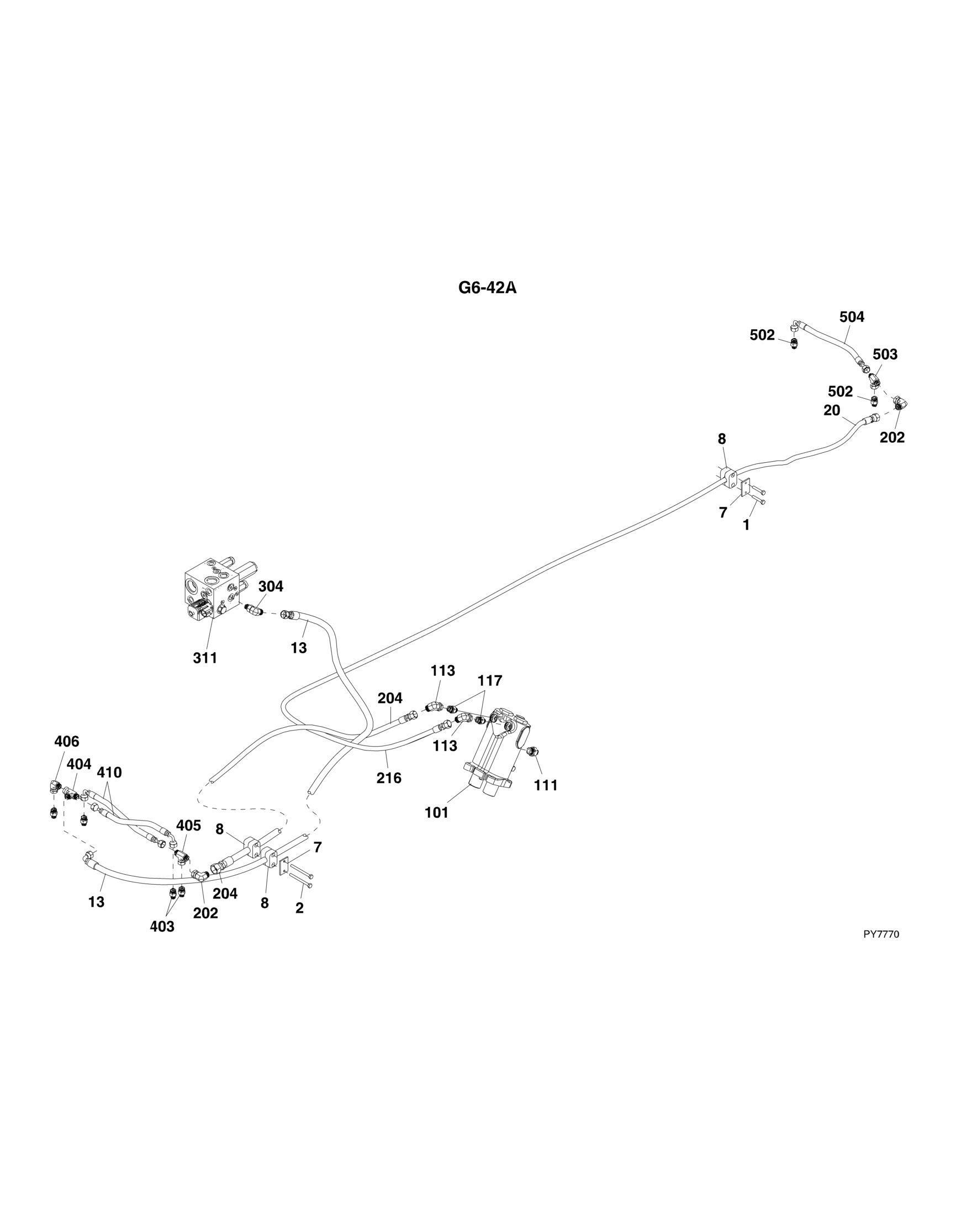

FIGURE 8 6. SERVICE BRAKE CIRCUIT G6 42A
FIGURE 8-6. SERVICE BRAKE CIRCUIT G6-42A
FIGURE 8-6. SERVICE BRAKE CIRCUIT G6-42A
ITEM PART NUMBER QTY
