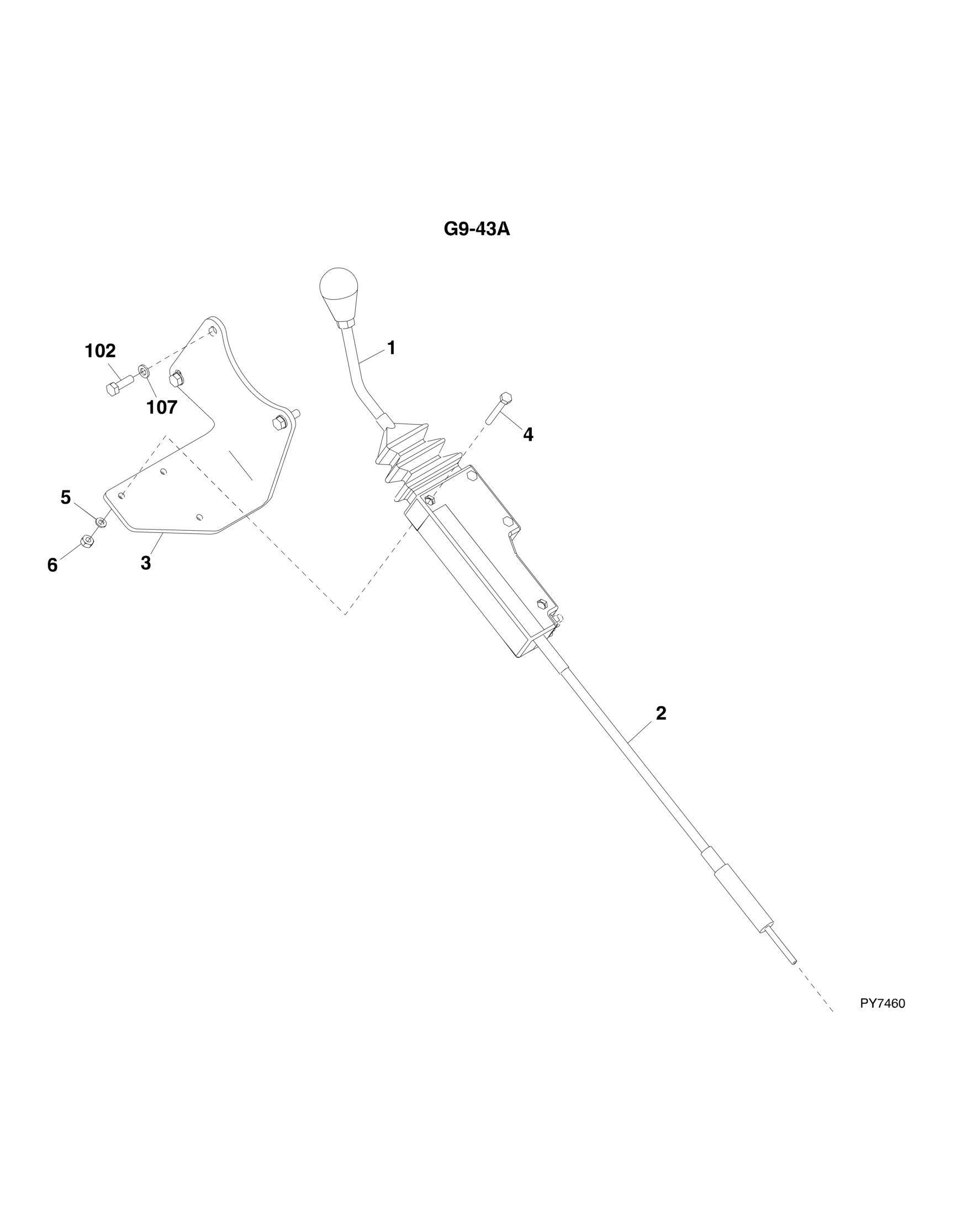

FIGURE 7 11. AUXILIARY HYDRAULIC JOYSTICK INSTALLATION G9 43A
ITEM PART NUMBER QTY
DESCRIPTION
1001107895 Ref AUXILIARY HYDRAULIC JOYSTICK INSTALLATION, (G9-43A), (if equipped), (not available to order, see items 1 thru 6 for service) 1 91513204 1 SINGLE VALVE CONTROL JOYSTICK ASSY 2 91473146 1 CABLE 3 1001092843 1 BRACKET 4 0641416 3 HEX HD CAPSCREW, 1/4-20X2, GR5 5 4761400 3 LOCKWASHER, 1/4 6 0641508 3 HEX NUT, 1/4-20, GR2 102 0641508 3 HEX HD CAPSCREW, 5/16-18X1, GR5 107 4761500 3 WASHER, 5/16
REV
C
