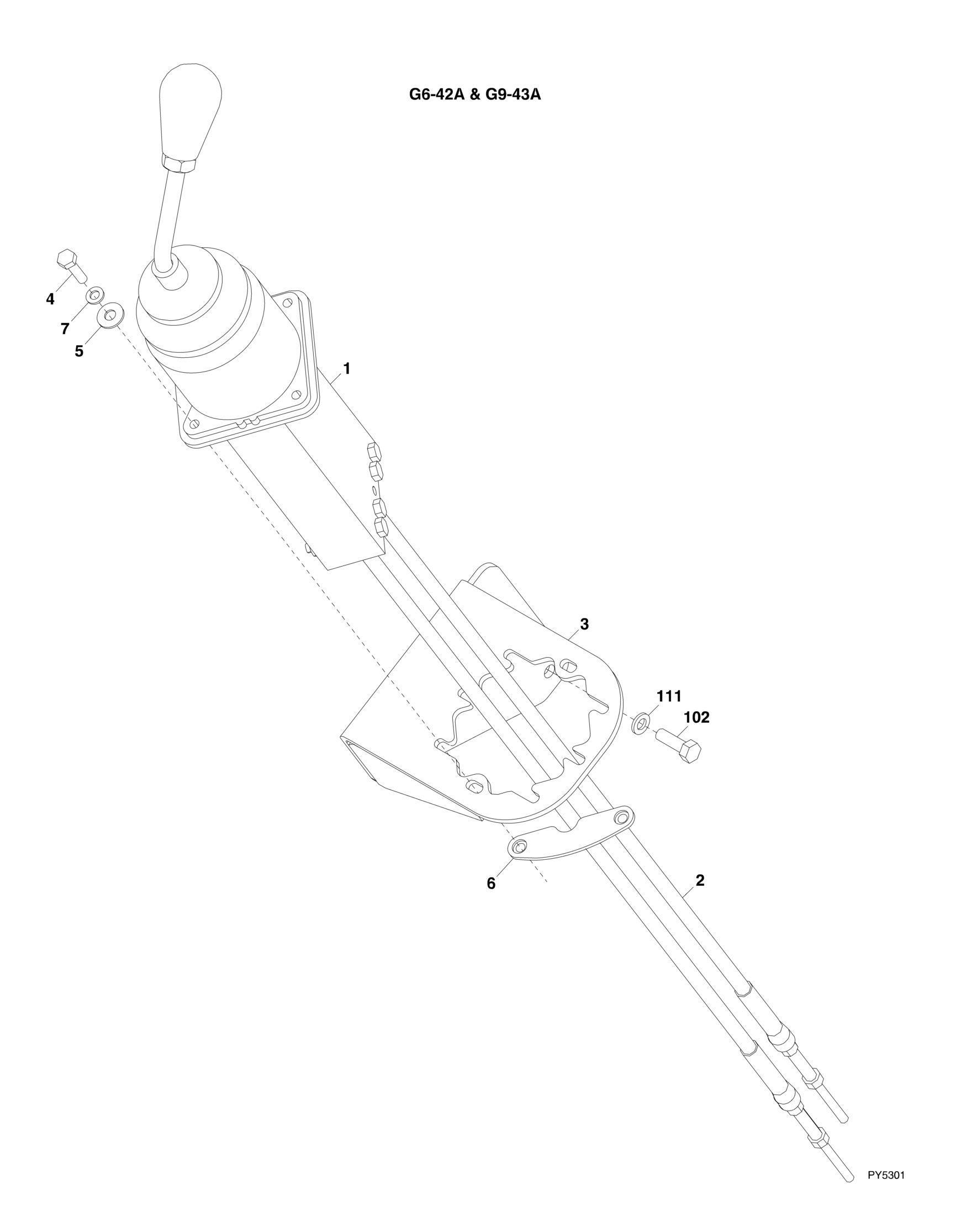

FIGURE 7 7. TILT AND FRAME LEVEL JOYSTICK INSTALLATION
ITEM PART NUMBER QTY
DESCRIPTION
91475033 Ref TILT AND FRAME LEVEL JOYSTICK INSTALLATION, (G6-42A & G9-43A), (if equipped), (not available to order, see items 1 thru 7 for service) 1 Ref TILT AND FRAME LEVEL JOYSTICK ASSY, (See TILT AND FRAME LEVEL JOYSTICK ASSEMBLY for Breakdown) 2 91473146 2 CONTROL CABLE 3 91416013 1 RH CONTROL BRACKET 4 88201006 4 HEX HD CAPSCREW, 1/4-20X1-1/4, GR5 5 88561107 4 FLAT WASHER, 1/4 6 91416017 2 WELD NUT PLATE WELDMENT 7 88551009 4 LOCKWASHER, 1/4 102 0641508 3 HEX HD CAPSCREW, 5/16-18X1, GR5 111 4761500 3 WASHER, 5/16
REV
F
