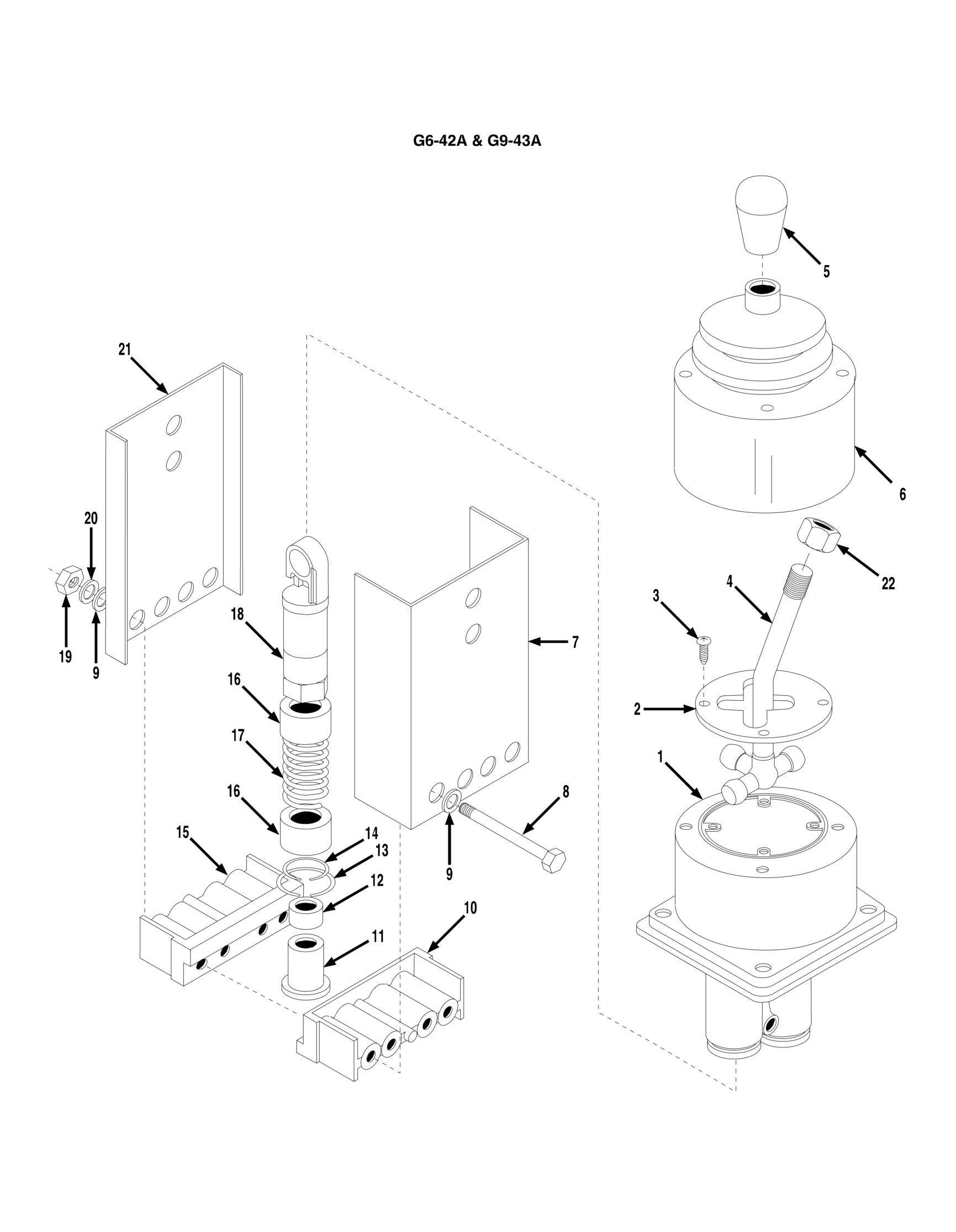

FIGURE 7 8. TILT AND FRAME LEVEL JOYSTICK ASSEMBLY

FIGURE 7-8. TILT AND FRAME LEVEL JOYSTICK ASSEMBLY

FIGURE 7-8. TILT AND FRAME LEVEL JOYSTICK ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

91403178 1 TILT AND FRAME LEVEL JOYSTICK ASSY, (G6-42A & G9-43A), (if equipped), (includes all items) 1 91404207 1 HOUSING 2 91404088 1 RESTRICTOR PLATE 3 91404089 4 SELF-TAPPING SCREW, #10X3/4 4 91404208 1 INPUT LEVER ASSY 5 91404091 1 KNOB 6 8160419 1 BOOT 7 91404093 1 HOUSING, (outer) 8 91404094 6 HEX HD CAPSCREW 9 91404095 12 FLAT WASHER 10 91404096 1 CABLE ANCHOR, (inner) 11 91404097 2 CABLE LOCK SCREW 12 91404098 2 CABLE BUSHING 13 91404099 2 RETAINING RING 14 91404100 2 RETAINING RING 15 91404101 1 CABLE ANCHOR, (outer) 16 91404102 4 BUSHING 17 91404103 2 SPRING 18 91404209 2 SLIDER ASSY 19 91404105 6 HEX NUT, 1/4-20 20 91404106 6 LOCKWASHER 21 91404107 1 HOUSING, (inner) 22 91404210 1 JAM NUT

REV

G
