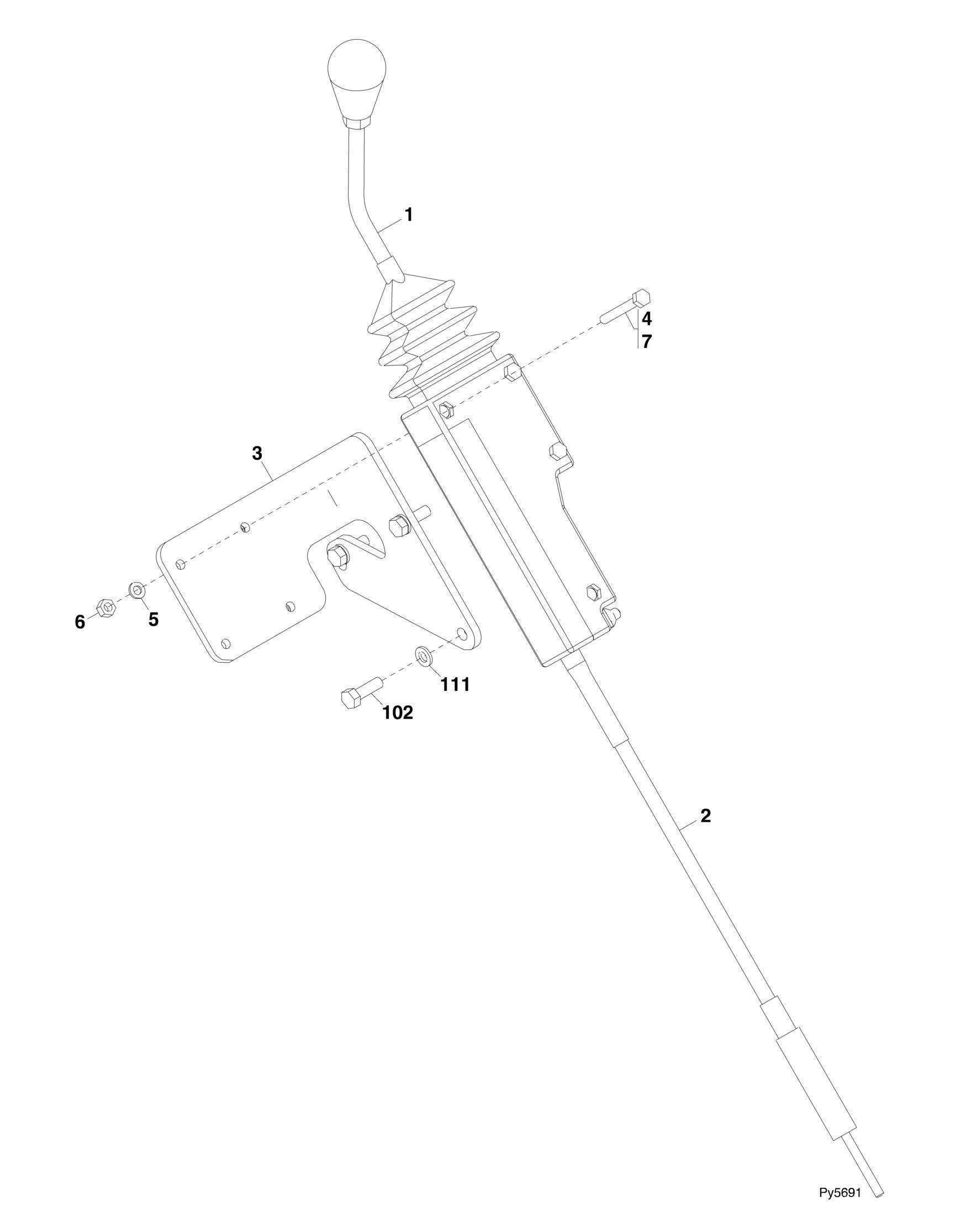

FIGURE 7 9. FRAME LEVEL JOYSTICK INSTALLATION

FIGURE 7-9. FRAME LEVEL JOYSTICK INSTALLATION

FIGURE 7-9. FRAME LEVEL JOYSTICK INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

91515047 Ref FRAME LEVEL JOYSTICK INSTALLATION, (G6-42A & G9-43A, if equipped), (G10-43A), (not available to order, see items 1 thru 7 for service) 1 91513204 1 SINGLE VALVE CONTROL 2 91473146 1 CABLE 3 1001092843 1 BRACKET 4 0641416 3 HEX HD CAPSCREW, 1/4-20X2 5 4761400 3 LOCKWASHER, 1/4 6 3311401 3 HEX NUT, 1/4-20, GR2 7 0100011 AR LOCTITE 242 102 0641508 3 HEX HD CAPSCREW, 5/16-18X1, GR5 111 4761500 3 WASHER, 5/16

REV

E
