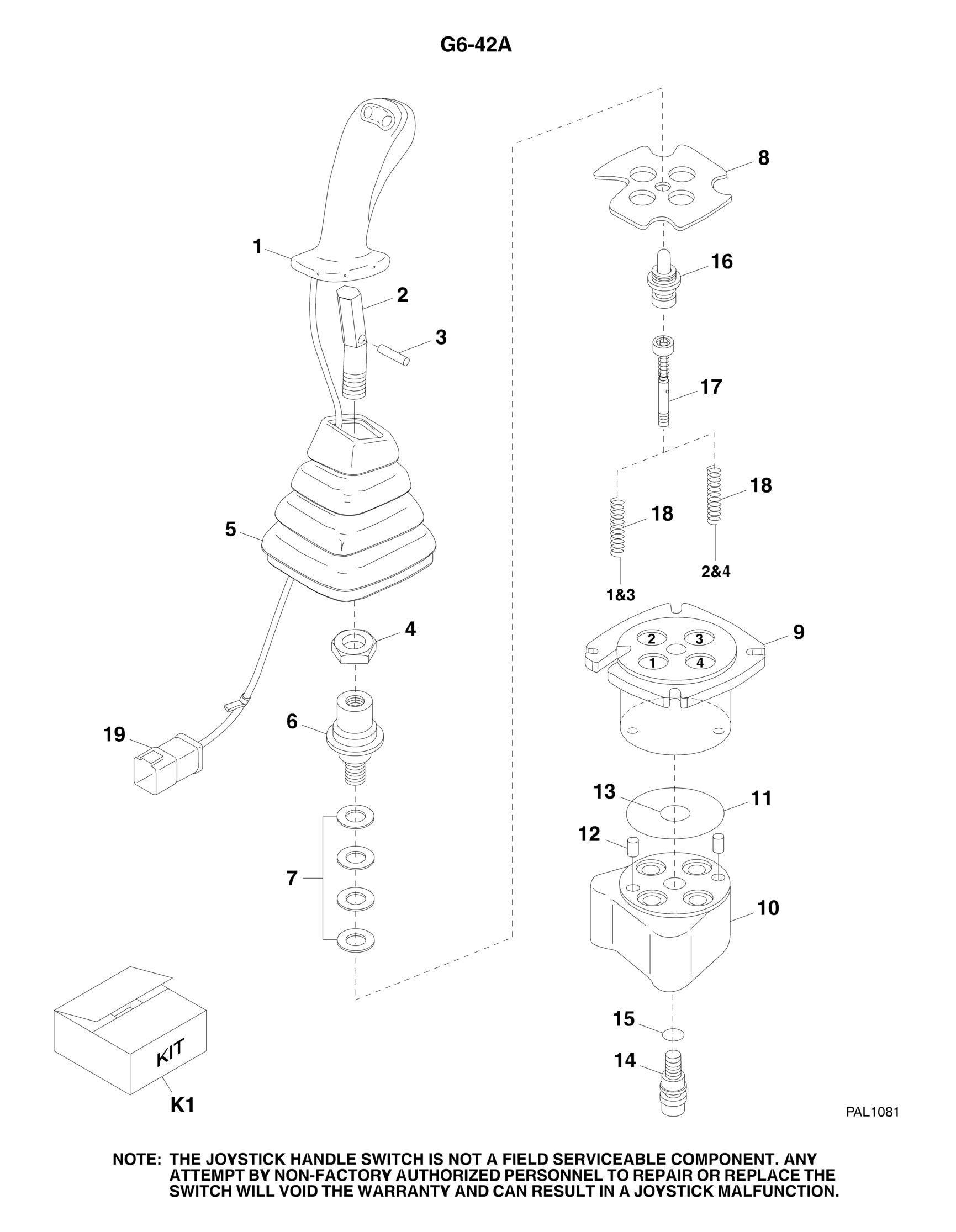

FIGURE 7 5. BOOM JOYSTICK G6 42A

FIGURE 7-5. BOOM JOYSTICK G6-42A

FIGURE 7-5. BOOM JOYSTICK G6-42A

ITEM PART NUMBER QTY

DESCRIPTION

91403491 Ref BOOM JOYSTICK W/TILT, (G6-42A), (if equipped), (includes all items) 1 91404325 1 HANDLE W/WIRE AND CONNECTOR 2 91404011 1 BENT LEVER KIT, (includes items 3 & 4) 3 N.S.S. 1 SPRING PIN 4 N.S.S. 1 HEX NUT 5 80364095 1 BOOT 6 80264138 1 CARDAN KIT, (includes item 7) 7 N.S.S. AR SHIM 8 91404013 1 RETAINING PLATE 9 91404016 1 UPPER BODY, (includes item 10) 10 N.S.S. 1 LOWER BODY 11 Kit K1 1 O-RING 12 Kit K1 2 DOWEL PIN 13 Kit K1 1 O-RING 14 Kit K1 1 SCREW ASSY 15 Kit K1 1 O-RING 16 80934498 4 PLUNGER AND GUIDE KIT 17 91404327 4 REGULATING UNIT 18 91504028 1 SPRING, (ports 1 & 3), (pack of two) 18 91504029 1 SPRING, (ports 2 & 4), (pack of two) 19 80264139 1 GROMMET W/CABLE TIE KIT K1 91404326 AR SEAL KIT, (includes items 11 thru 15)

REV

A
