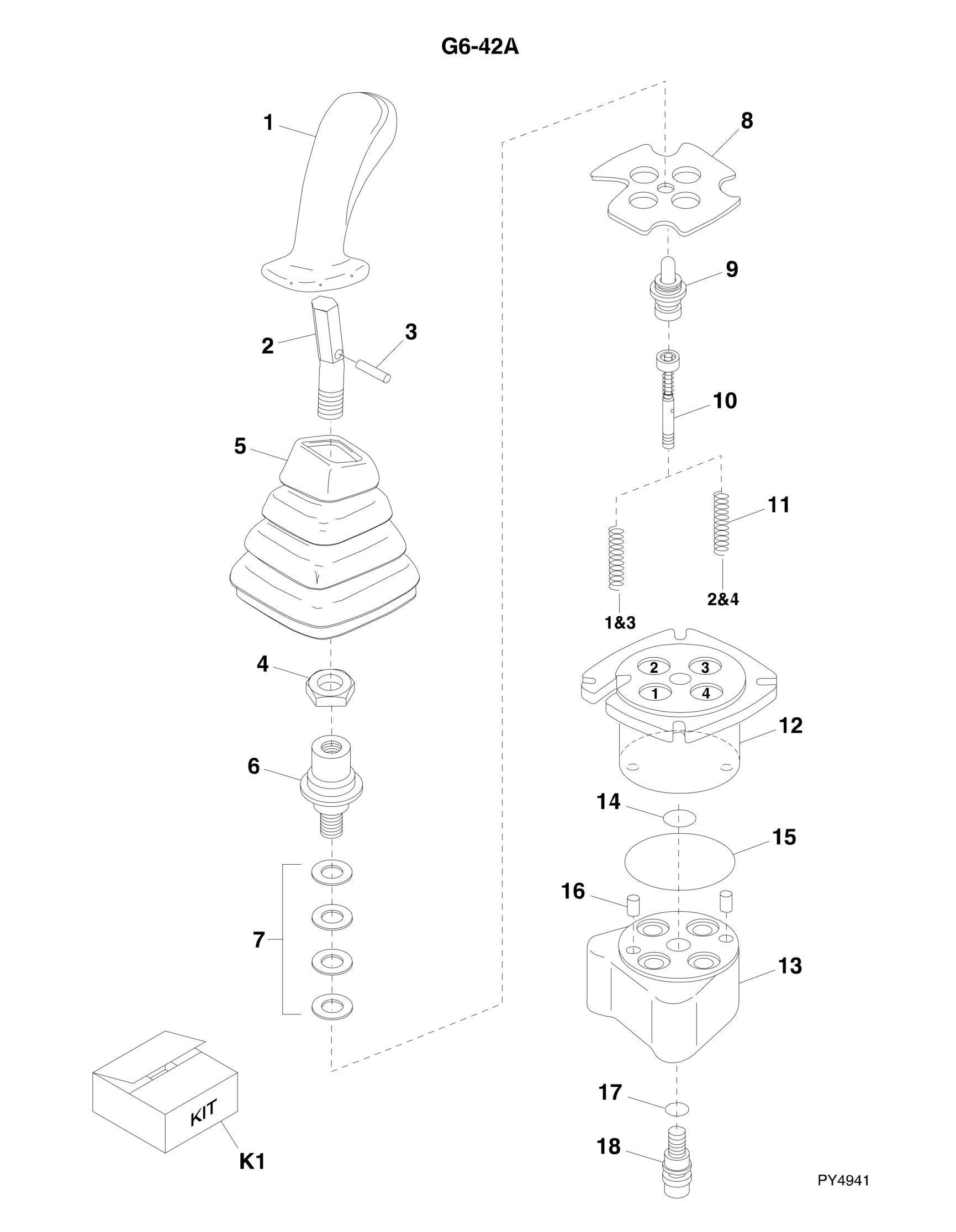

FIGURE 7 4. BOOM JOYSTICK G6 42A

FIGURE 7-4. BOOM JOYSTICK G6-42A

FIGURE 7-4. BOOM JOYSTICK G6-42A

ITEM PART NUMBER QTY DESCRIPTION REV

91403490 Ref JOYSTICK ASSY, (G6-42A), (if equipped), (includes all items) A 1 91404010 1 GRIP 2 91404011 1 BENT LEVER KIT, (includes items 3 & 4) 3 N.S.S. 1 SPRING PIN 4 N.S.S. 1 HEX NUT 5 80364095 1 BOOT 6 80264138 1 CARDAN KIT, (includes item 7) 7 N.S.S. 1 SHIM 8 91404013 1 RETAINING PLATE 9 80934498 4 PLUNGER AND GUIDE KIT 10 91404327 4 REGULATING UNIT 11 91504028 1 SPRING, (ports 1 & 3), (pack of two) 91504029 1 SPRING, (ports 2 & 4), (pack of two) 12 91404016 1 UPPER BODY, (includes item 13) 13 N.S.S. 1 LOWER BODY 14 Kit K1 1 O-RING 15 Kit K1 1 O-RING 16 Kit K1 2 DOWEL PIN 17 Kit K1 1 O-RING 18 Kit K1 1 SCREW ASSY

K1 91404326 AR SEAL KIT, (includes items 14 thru 18)
