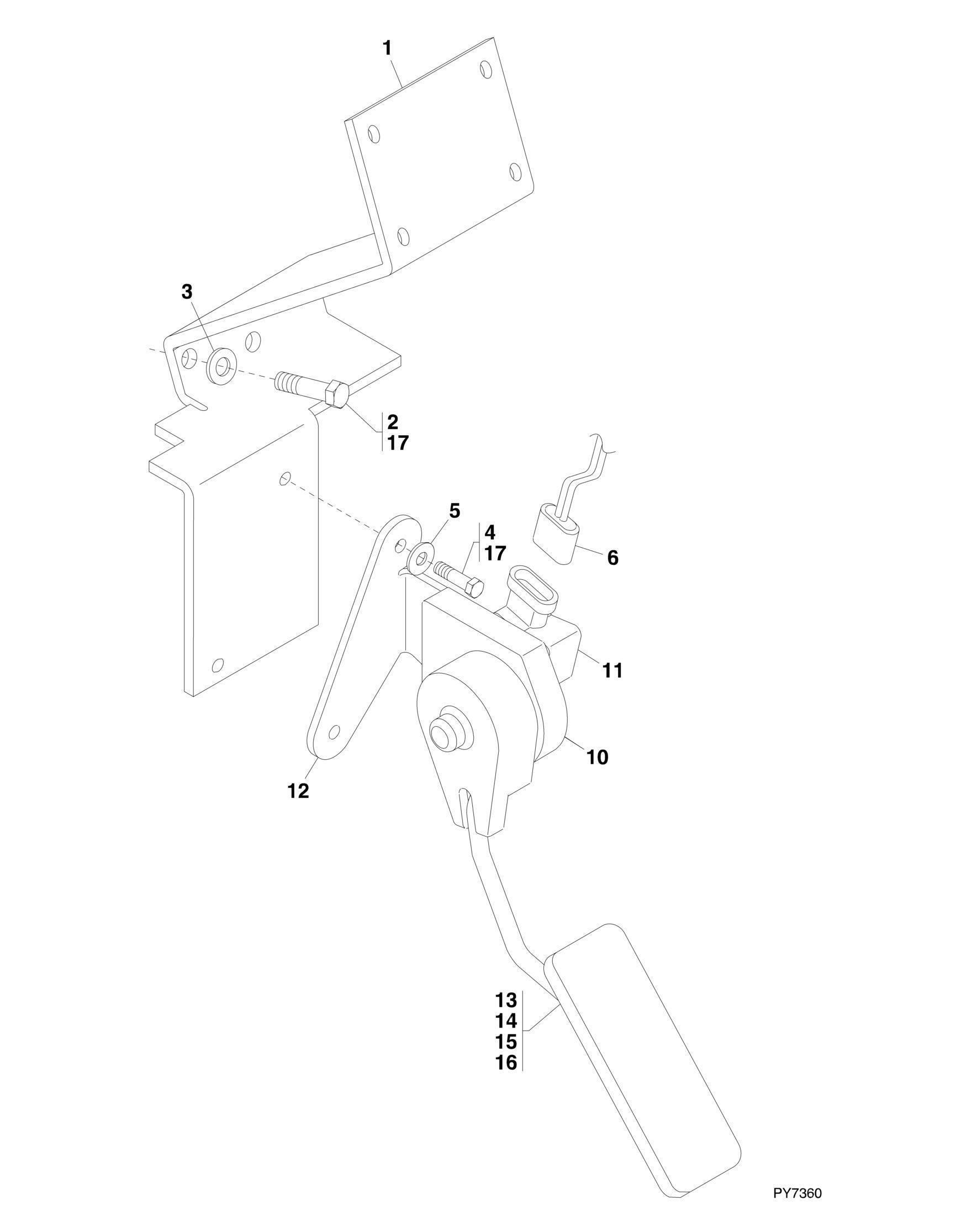

FIGURE 7 2. ACCELERATOR

FIGURE 7-2. ACCELERATOR

FIGURE 7-2. ACCELERATOR

ITEM PART NUMBER QTY DESCRIPTION

1 91561192 1 BRACKET 2 0641508 2 HEX HD CAPSCREW, 5/16-18X1, GR5, (torque to 17 lb-ft/23 Nm) 3 4711500 2 WASHER, 5/16 4 0641408 2 HEX HD CAPSCREW, 1/4-20X1, GR5, (torque to 96 lb-ft/130 Nm) 5 4711400 2 WASHER, 1/4 6 Ref ENGINE HARNESS, (See ELECTRICAL SECTION for Breakdown) 10 1001090003 1 PEDAL, (includes items 11 thru 16) 11 7029908 1 SENSOR KIT, (includes screws) 12 N.S.S. 1 BRACKET 13 70023325 1 PEDAL KIT, (includes items 14 & 16) 14 N.S.S. 1 PEDAL SPRING 15 7026481 1 PEDAL ARM 16 N.S.S. 1 PEDAL PIN 17 0100011 AR LOCTITE 242

REV

C
