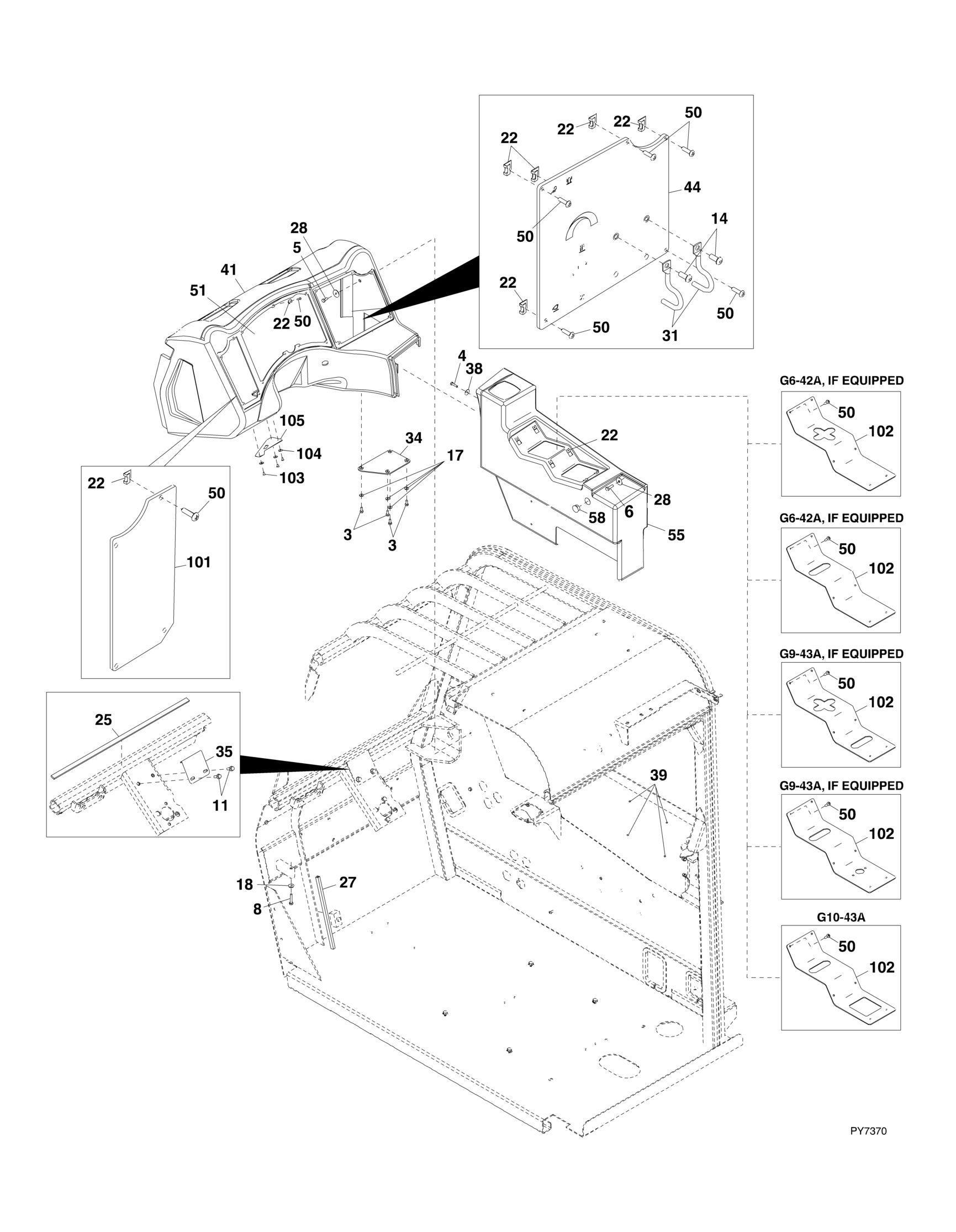

FIGURE 6 4. CAB INTERIOR
FIGURE 6-4. CAB INTERIOR
FIGURE 6-4. CAB INTERIOR
ITEM PART NUMBER QTY
DESCRIPTION
3 0641405 4 HEX HD CAPSCREW, 1/4-20X5/8, GR5 4 0641408 1 HEX HD CAPSCREW, 1/4-20X1, GR5 5 0641506 1 HEX HD CAPSCREW, 5/16-18X3/4, GR5 6 0641508 1 HEX HD CAPSCREW, 5/16-18X1, GR5, (enclosed cab) 8 0641514 1 HEX HD CAPSCREW, 5/16-18X1-3/4, GR5 11 0791608 2 SCREW, 3/8-16X1 14 3911410 2 ROUND HD SCREW, 1/4-20X5/8 17 4751400 4 WASHER, 1/4 18 4751500 1 WASHER, 5/16 22 80363034 22 TINNERMAN NUT, #10-24 25 90200755 32 in GASKA TAPE 27 90206198 13 in TRIM-LOK 28 91023098 1 WASHER, 5/16, (open cab) 28 91023098 2 WASHER, 5/16, (enclosed cab) 31 91163087 2 LOAD CHART BRACKET 34 91401516 1 DASH BRACE 35 91401590 1 DASH CLAMP 38 91413050 1 WASHER, 1/4 39 91413130 4 HOLE PLUG 41 91473211 1 DASH, (open cab) 41 1001103553 1 DASH, (enclosed cab) 44 91563191 1 RH DASH PANEL (G6-42A Prior to SN 01600030921; G9-43A
Prior to SN 01600056012; G10-43A Prior to SN 01600056167)
44 1001156272 1 RH DASH PANEL (G6-42A SN 01600030921 to Present; G9-43A
SN 01600056012 to Present; G10-43A SN 01600056167 to Present)
50 1001100322 12 PAN HD SCREW 51 Ref DASH INSTRUMENT PANEL AND SWITCHES, (See ELECTRICAL SECTION for Breakdown) 55 1001108890 1 RH CONSOLE PANEL 58 1001131130 1 HOLE PLUG 101 91403316 1 LH DASH PANEL, (G6-42A) 101 91403324 1 LH BLANK DASH PANEL, (G9-43A) 101 1001131808 1 LH DASH PANEL, (G10-43A) 102 1001112717 RH SIDE JOYSTICK PANEL, (G6-42A, if equipped) 102 1001110799 RH SIDE JOYSTICK PANEL, (G6-42A, if equipped) 102 1001107828 1 RH SIDE JOYSTICK PANEL, (G9-43A, if equipped) 102 1001108252 1 RH SIDE JOYSTICK PANEL, (G9-43A, if equipped) 102 1001110808 1 RH SIDE JOYSTICK PANEL, (G10-43A) 103 3820020 3 RIVET, (G9-43A, if equipped), (G10-43A) 104 4711400 3 WASHER, 1/4, (G9-43A, if equipped), (G10-43A) 105 1001110104 1 ANALYZER MOUNT PLATE, (G9-43A, if equipped), (G10-43A)
