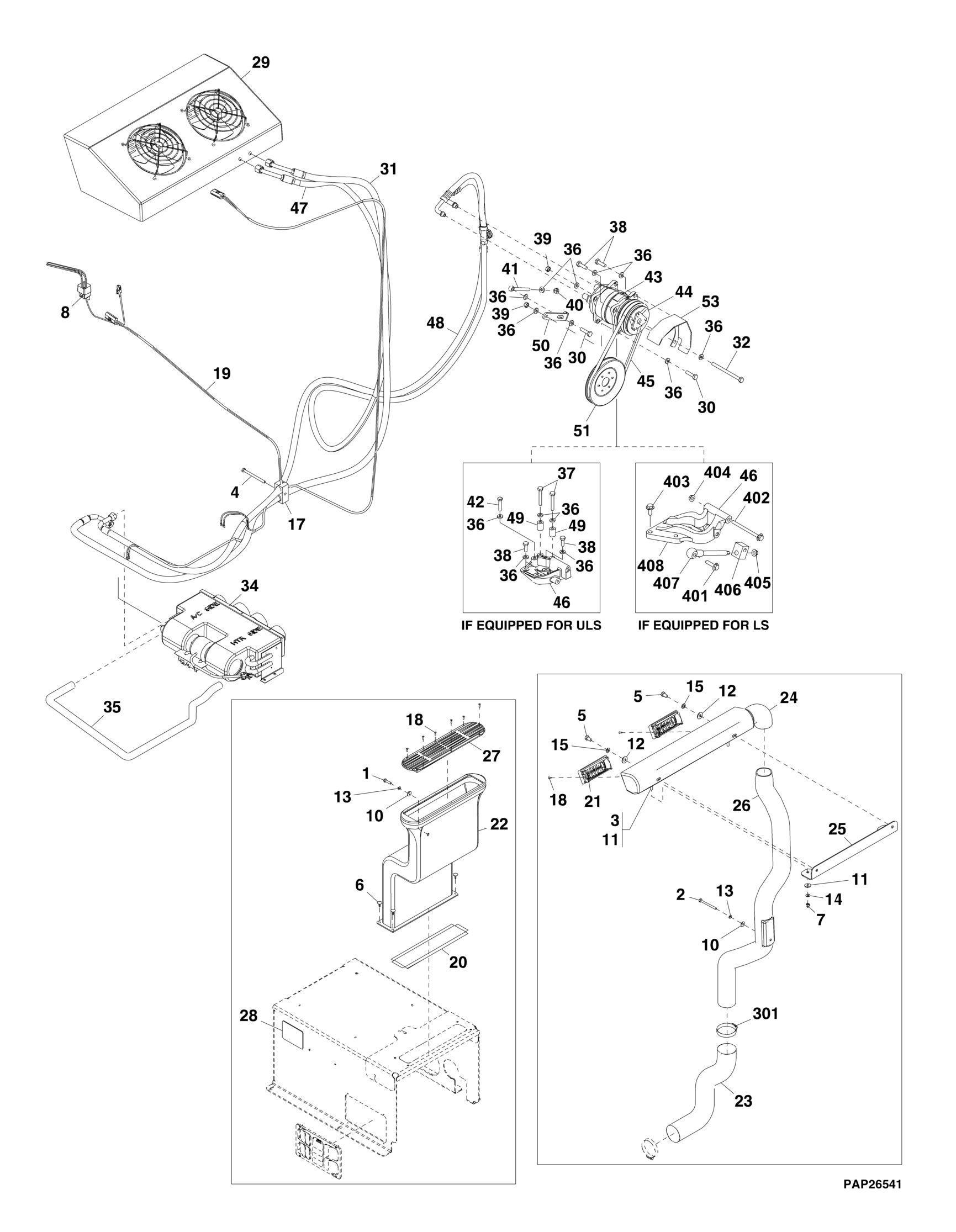

FIGURE 6 9. AIR CONDITIONING INSTALLATION
FIGURE 6-9. AIR CONDITIONING INSTALLATION
FIGURE 6-9. AIR CONDITIONING INSTALLATION
ITEM PART NUMBER QTY DESCRIPTION REV
1001131979 Ref AIR CONDITIONING INSTALLATION, (if equipped for ULS), (not available to order, see items 1 thru 53 for service) 1001139643 Ref AIR CONDITIONING INSTALLATION, (if equipped for LS), (not available to order, see items 1 thru 8, 10 thru 36, 39, 43 thru 48 & 51 thru 53 for service) J
H
1 0641408 1 HEX HD CAPSCREW, 1/4-20X1 2 0641424 1 HEX HD CAPSCREW, 1/4-20X3 3 0641507 2 HEX HD CAPSCREW, 5/16-18X7/8 4 0641532 1 HEX HD CAPSCREW, 5/16-18X4 5 0641605 2 HEX HD CAPSCREW, 3/8-16X5/8 6 1380158 4 PANEL RETAINER CLIP 7 2080063 2 LOCKNUT FASTENER, 1/4-20 8 3740080 1 WEATHER PROOF RELAY 9 4240033 5 WIRE TIE, (not shown), (if equipped for ULS) 10 4711400 2 WASHER, 1/4 11 4751500 4 WASHER, 5/16 12 4751600 2 WASHER, 3/8 13 4761400 2 LOCKWASHER, 1/4 14 4761500 2 LOCKWASHER, 5/16 15 4761600 2 LOCKWASHER, 3/8 17 77323029 1 CLAMP SET 18 91413036 10 SCREW, #6X1/2 19 Ref A/C HARNESS, (not shown), (See ELECTRICAL SECTION for Breakdown) 20 1001090344 28 in NEOPRENE TAPE, 1/16X1/2 21 1001100279 2 DEFROST VENT 22 1001100281 1 MAIN SUCTION VENT 23 1001100446 20 in HOSE ASSY 24 1001100770 1 TUBE 25 1001100773 1 BRACKET 26 1001101259 1 TUBE 27 1001101640 1 SUCTION VENT FILTER 28 Ref A/C TEMPERATURE DECAL, (See DECALS SECTION for Breakdown) 29 1001107340 1 A/C OVERHEAD CONDENSER, (includes items 101 thru 122) A 30 0701016 2 HEX HD CAPSCREW, M10X40, GR8.8, (if equipped for ULS) 30 0701020 1 HEX HD CAPSCREW, M10X60, GR8.8, (if equipped for LS) 31 1001107428 1 HOSE ASSY 32 0711031 1 HEX HD CAPSCREW, M10X140, GR10.9, (if equipped for ULS) 32 0701031 1 HEX HD CAPSCREW, M10X140, GR8.8, (if equipped for LS) 33 Ref ENCLOSED CAB, (not shown), (See CAB ASSEMBLY for Breakdown) 34 1001142350 1 HEATER AND A/C ASSY, 3 SPEED, (includes items 201 thru 225) B 35 82033995 28 in HEATER HOSE, 5/8 36 4891600 15 WASHER, 3/8, (if equipped for ULS) 36 4891600 6 WASHER, 3/8, (if equipped for LS) 37 0701022 2 HEX HD CAPSCREW, M10X70, GR8.8, (if equipped for ULS) 38 0761014 5 HEX HD CAPSCREW, M10X30, GR8.8, (if equipped for ULS) 38 0761014 2 HEX HD CAPSCREW, M10X35, GR8.8, (if equipped for LS) 39 8305038 2 HEX NUT, M10X1-1/2 40 3291007 1 HEX LOCKNUT, M10X1-1/2, (if equipped for ULS)
ITEM PART NUMBER QTY
DESCRIPTION
41 8310737 1 ROD END, (if equipped for ULS) 42 8310748 1 HEX HD CAPSCREW, M10X50, GR8.8, (if equipped for ULS) 43 1001093526 1 A/C REFRIGERANT DECAL 44 1001107339 1 A/C COMPRESSOR CLUTCH 45 1001130379 1 BELT, (if equipped for ULS) 45 1001138998 1 BELT, (if equipped for LS) 46 1001133435 1 A/C COMPRESSOR BRACKET, (if equipped for ULS) 46 1001139646 1 A/C COMPRESSOR BRACKET, (if equipped for LS), (includes items 401 to 408) 47 1001135649 1 HOSE ASSY 48 1001135657 1 HOSE ASSY 49 1001135662 2 FUEL FILTER SPACER TUBE, (if equipped for ULS) 50 1001135664 1 A/C ADJUST PLATE, (if equipped for ULS) 51 1001136771 1 A/C DRIVE PULLEY, (if equipped for ULS) 51 1001120544 1 A/C DRIVE PULLEY, (if equipped for LS) 53 1001140255 1 A/C COMPRESSOR SHIELD 101 70020643 1 CASE TOP 102 70022880 1 CASE BOTTOM 103 70020644 1 COIL 104 70022881 2 BRACKET 105 91514270 1 TUBE ASSY 106 91514266 1 DRIER 107 70022882 1 BRACKET 108 80363102 3 O-RING 109 70022883 1 CLAMP 110 70020645 1 TUBE ASSY 111 70020646 1 TUBE ASSY 112 70022884 4 CLAMP 113 70022885 3 CLAMP 114 70022886 1 PLUG 115 91514295 2 FAN 116 70020647 1 FAN HARNESS 117 80363103 1 O-RING 118 70022891 2 ft FOAM 120 70022890 4 BOLT, 3/8-16X1-3/4, (not shown) 121 70022888 4 WASHER, 3/8, (not shown) 122 70022889 4 LOCKWASHER, 3/8, (not shown) 201 70022552 1 CASE TOP 202 70022553 1 CASE BOTTOM 203 70022805 1 BLOWER MOTOR 204 70023108 2 BLOWER WHEEL 205 70022876 1 HEATER/COOLER COIL 206 91514272 1 VALVE 207 70022877 1 CLAMP 208 80363103 1 O-RING 209 N.S.S. 1 3 HOLE TOP 210 N.S.S. 2 LEG 211 N.S.S. 1 THERMOSTAT 212 N.S.S. 2 HOSE 213 N.S.S. 2 HEATER SPLICE 214 70022879 4 CLAMP 215 70022555 1 ARM RESTRICTER, (not shown)
REV
E B
ITEM PART NUMBER QTY
DESCRIPTION
216 91514296 1 METRO SWITCH, (not shown) 217 70020640 1 12V RELAY, (not shown) 218 70022556 3 ft HOSE, (not shown) 219 70022557 1 DRAIN ELBOW, 3/8, (not shown) 220 70022558 1 DRAIN TEE, 3/8, (not shown) 221 80363099 1 PRESSURE SWITCH, (not shown) 301 86883328 1 CLAMP 401 1001148770 2 HEX HD CAPSCREW 402 1001148771 1 HEX HD CAPSCREW 403 1001148772 4 HEX HD CAPSCREW 404 1001148773 2 HEX HD NUT 405 1001148774 1 HEX HD NUT 406 1001148775 1 ADJUSTING END LINK 407 1001148776 1 ADJUSTING LINK 408 1001148778 1 REF COMPRESSOR SUPPORT
