FIGURE 7 1. BRAKE

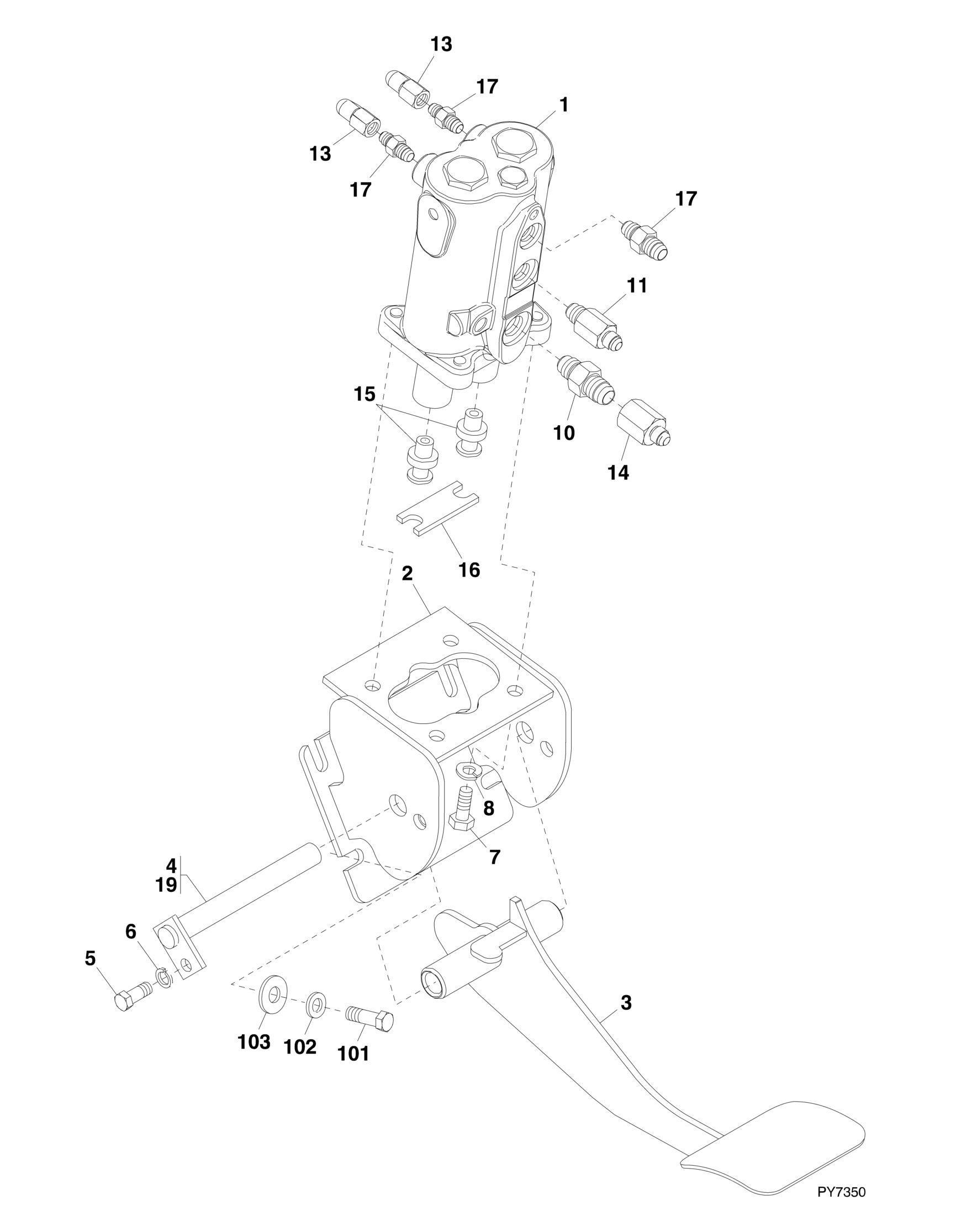

FIGURE 7-1. BRAKE

FIGURE 7-1. BRAKE

ITEM PART NUMBER QTY

DESCRIPTION

1001091173 Ref BRAKE INSTALLATION, (not available to order, see items 1 thru 19 for service) 1 Ref BRAKE VALVE, (See HYDRAULIC COMPONENTS SECTION for Breakdown) 2 1001091118 1 BRACKET 3 1001090741 1 PEDAL 4 91476031 1 PIN 5 0641608 1 HEX HD CAPSCREW, 3/8-16X1, GR5 6 4761600 1 LOCKWASHER, 3/8 7 0701014 4 HEX HD CAPSCREW, M10X30, GR8.8 8 4832000 4 LOCKWASHER, 10mm 10 2221257 1 STRAIGHT FITTING, (includes o-ring) 11 8770258 1 STRAIGHT FITTING, (includes o-ring) 13 2172106 2 ADAPTER, 90, (swivel nut) 14 2221244 1 REDUCER ADAPTER, (includes o-ring) 15 91513180 2 ACTUATOR 16 91511145 1 TIE BAR 17 2144605 3 STRAIGHT FITTING, (includes o-ring) 19 3020039 AR MOLY PASTE 101 0641508 4 HEX HD CAPSCREW, 5/16-18X1 102 4761500 4 LOCKWASHER, 5/16 103 4751500 4 WASHER, 5/16

REV

F
