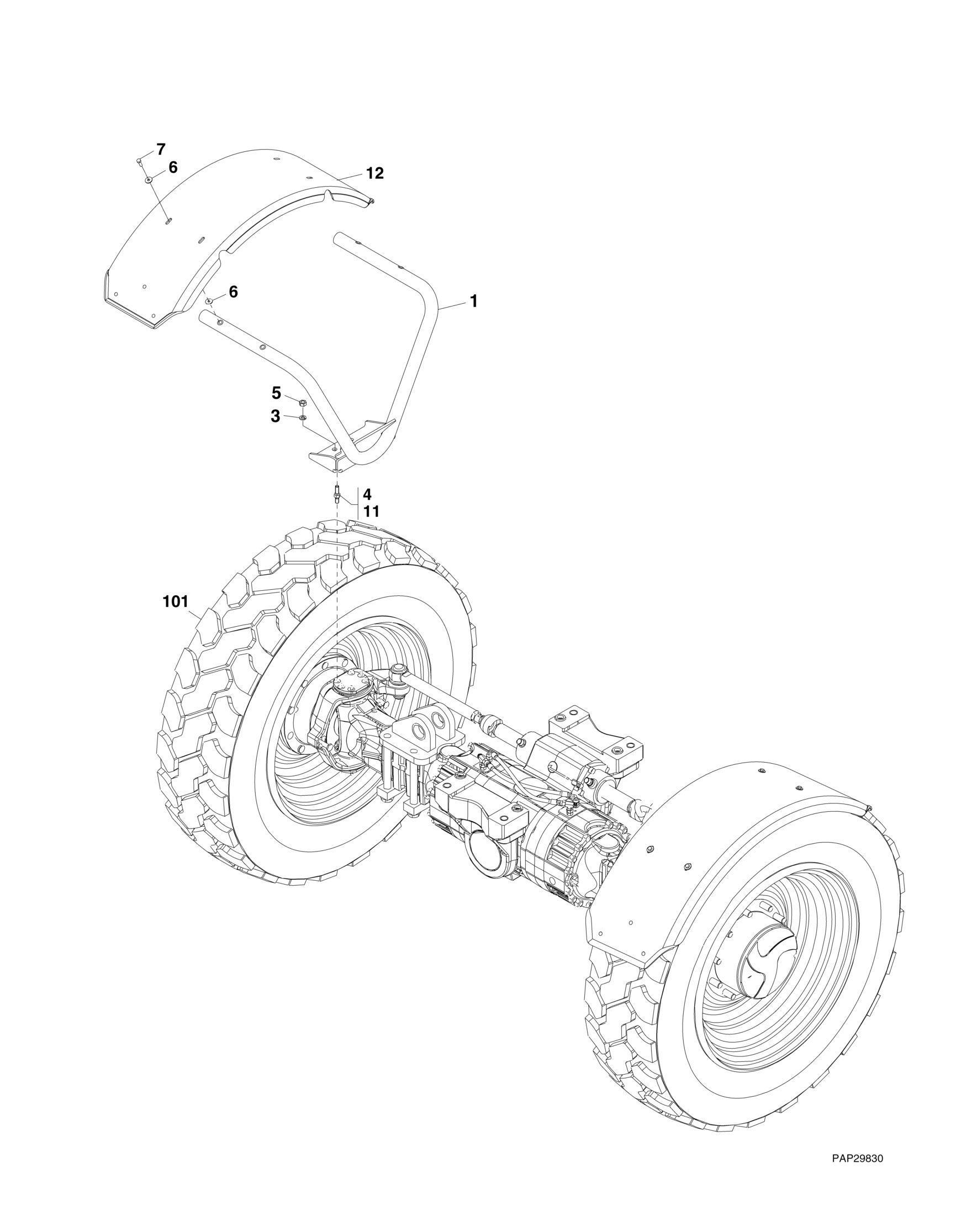

FIGURE 5 35. FENDER INSTALLATION

FIGURE 5-35. FENDER INSTALLATION

FIGURE 5-35. FENDER INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001142564 1 FENDER INSTALLATION, (includes items 1 thru 11) 1 1001142561 4 FENDER BRACKET 3 83191010 16 LOCKWASHER 4 91514118 16 FENDER STUD 5 91513266 16 HEX NUT, M12X1-1/4 6 4811902 32 WASHER, 8mm 7 0760812 16 HEX HD CAPSCREW, M8X25, GR8.8 11 1001095650 AR LOCTITE 243 12 1001154055 4 FENDER DUNLOFLEX 101 Ref WHEEL ASSY, (See WHEEL ASSEMBLY for Breakdown)

REV

C
