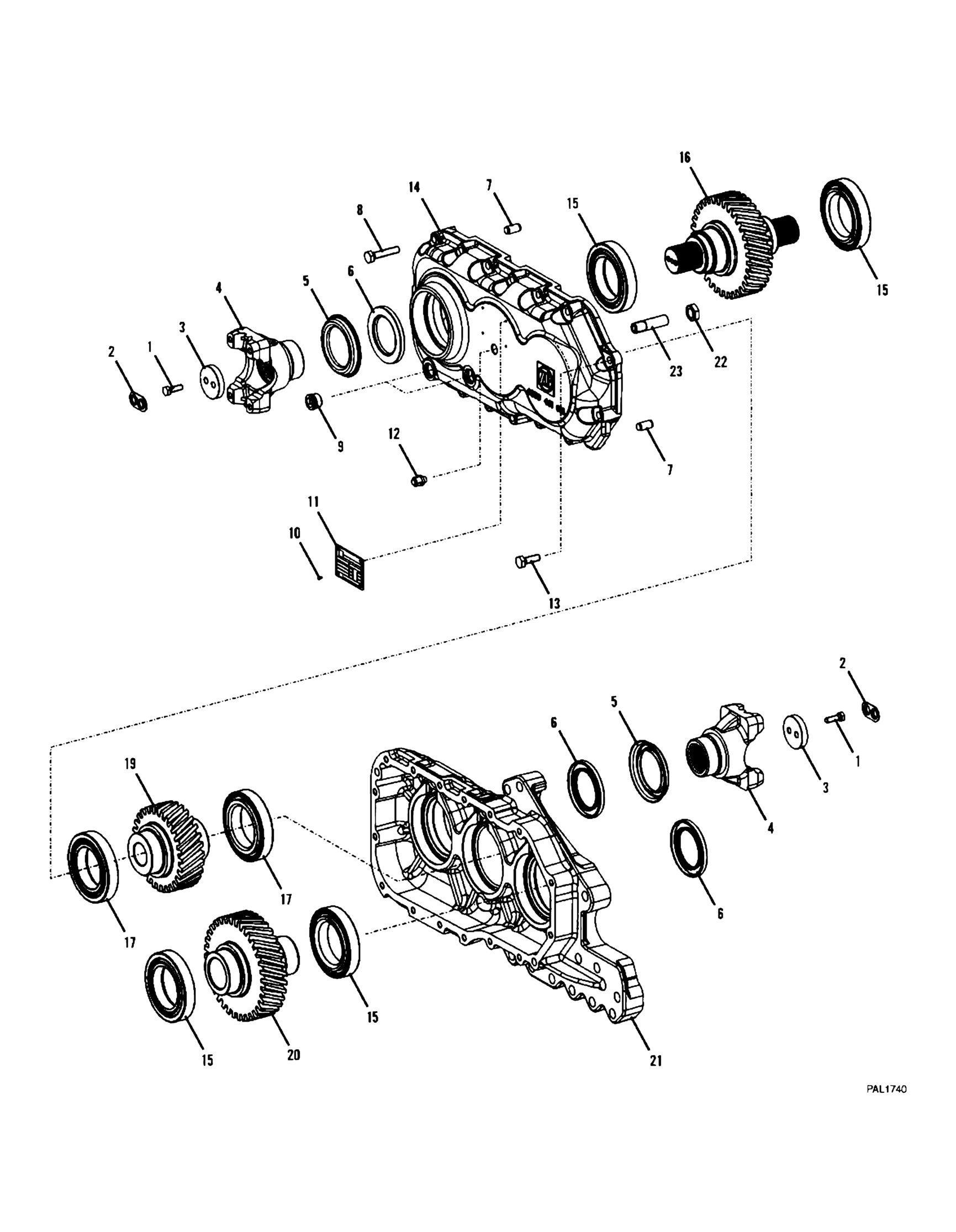

FIGURE 5 34. ZF TRANSMISSION TRANSFER BOX
FIGURE 5-34. ZF TRANSMISSION - TRANSFER BOX
FIGURE 5-34. ZF TRANSMISSION - TRANSFER BOX
ITEM PART NUMBER QTY
DESCRIPTION
70020549 1 TRANSFER BOX, (includes all items) 1 10731959 4 HEX HD CAPSCREW, M8X25, GR10.9 2 N.S.S. 2 TAB WASHER 3 1319648 2 WASHER 4 7027273 2 FLANGE 5 1319647 2 SCREEN SHEET 6 1320755 3 SHAFT SEAL 7 1319571 2 CYLINDRICAL PIN 8 70023801 15 HEX HD CAPSCREW, M10X50, GR10.9 9 70023404 2 PLUG 10 10731758 4 STUD, 3X5 11 N.S.S. 1 SN PLATE 12 1319436 1 BREATHER 13 70023800 1 HEX HD CAPSCREW, M10X30, GR10.9 14 70023267 1 HOUSING 15 7026769 4 ROLLER BEARING 16 7029848 1 OUTPUT SHAFT 17 N.S.S. 4 TAPERED ROLLER BEARING 17 1320748 1 CUP 17 1320754 1 CONE 19 7027270 1 IDLER GEAR 20 N.S.S. 1 INPUT SHAFT 20 70020493 1 INPUT GEAR 20 70020036 1 SEAL 21 70023266 1 HOUSING 22 7026578 1 HEX NUT, M16 23 7026577 1 SLEEVE
