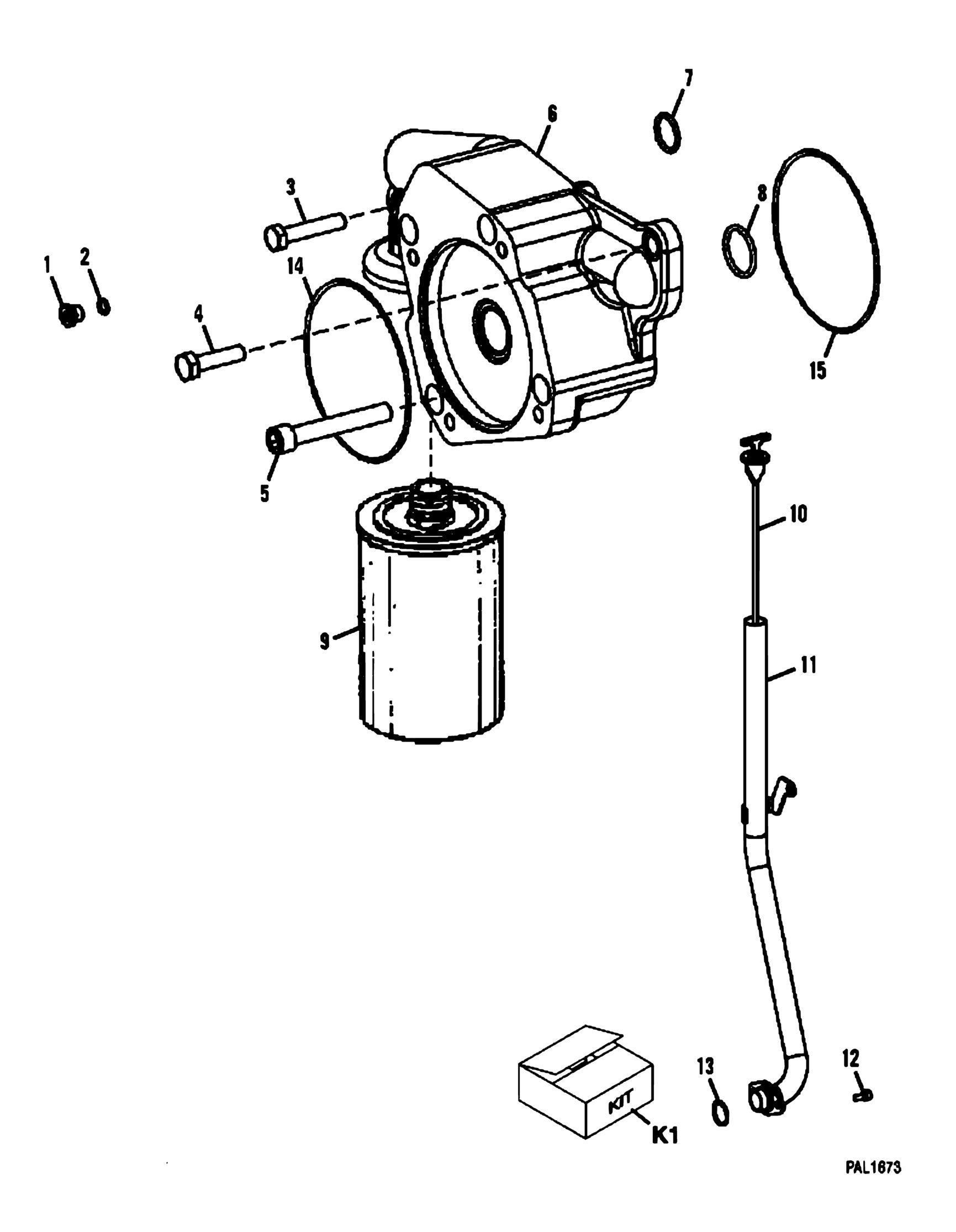

FIGURE 5 33. ZF TRANSMISSION OIL PUMP, FILTER AND DIPSTICK

FIGURE 5-33. ZF TRANSMISSION - OIL PUMP, FILTER AND DIPSTICK

FIGURE 5-33. ZF TRANSMISSION - OIL PUMP, FILTER AND DIPSTICK

ITEM PART NUMBER QTY DESCRIPTION

1 1319670 2 PLUG, M10X1 2 80304327 2 O-RING 3 7026794 1 HEX HD CAPSCREW, M10X50, GR8.8 4 80304394 1 HEX HD CAPSCREW, M10X30, GR8.8 5 7026793 4 CAPSCREW, M12X80, GR10.9 6 7026791 1 PUMP 6 7029417 1 O-RING, (located between two halves of oil pump) 7 7026792 3 O-RING 8 1319719 1 O-RING 9 1319726 1 FILTER 10 8841322 1 DIPSTICK 11 1001095744 1 DIPSTICK TUBE 12 1319585 2 CAPSCREW, M8X16, GR8.8 13 1319581 1 O-RING 14 80933113 1 O-RING 15 8036250 1 O-RING, (located between oil pump and transmission) K1 1001095738 1 OIL LEVEL GAUGE KIT, (includes items 10 & 11)

REV
