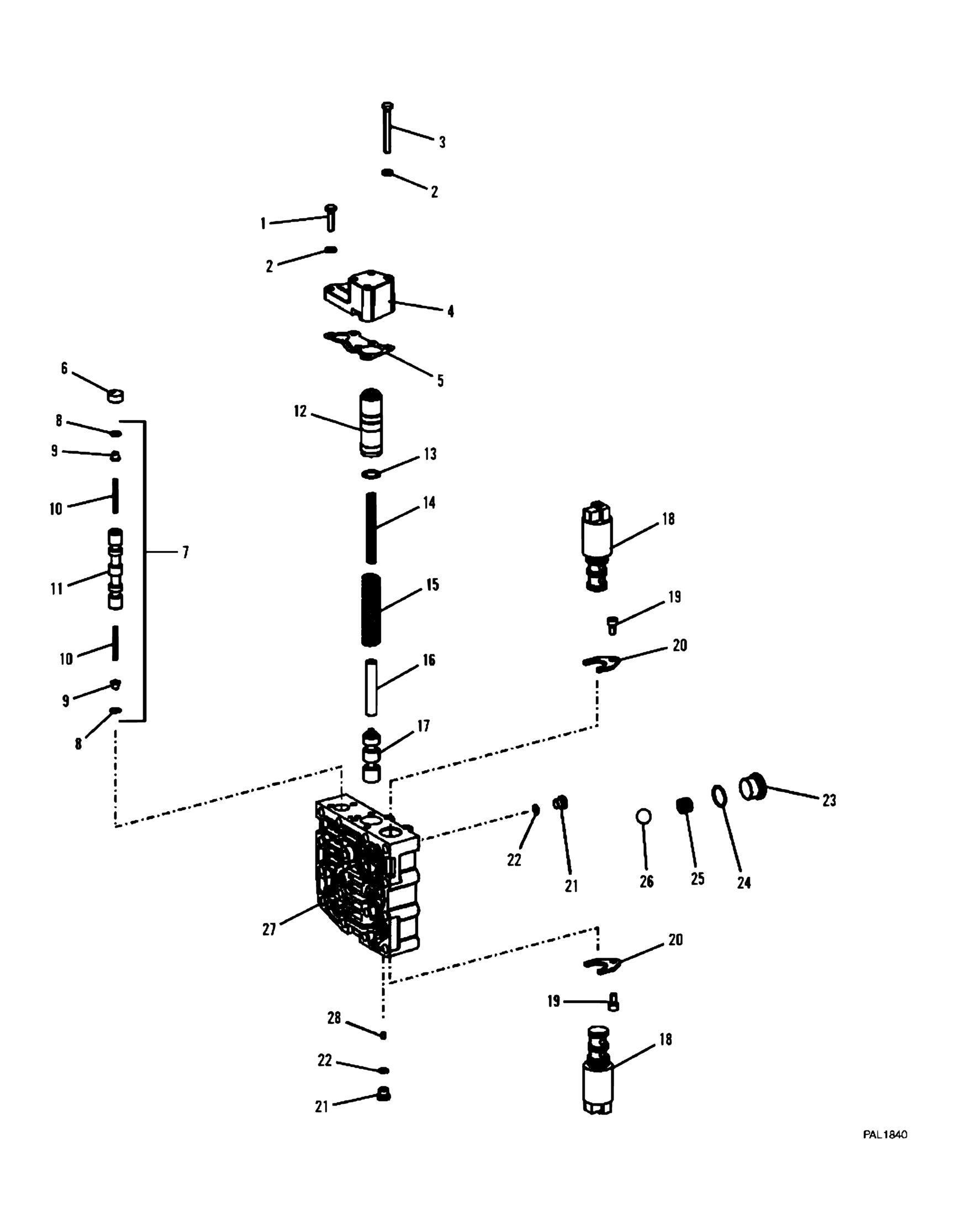

FIGURE 5 32. ZF TRANSMISSION GEARSHIFT SYSTEM
FIGURE 5-32. ZF TRANSMISSION - GEARSHIFT SYSTEM
FIGURE 5-32. ZF TRANSMISSION - GEARSHIFT SYSTEM
ITEM PART NUMBER QTY
DESCRIPTION
1 1319693 2 HEX HD CAPSCREW, M6X25, GR10.9 2 1319661 6 WASHER 3 1321265 4 HEX HD CAPSCREW, M6X55, GR10.9 4 7026789 1 COVER 5 7026788 1 GASKET 6 7026787 1 SPACER 7 1319694 1 VALVE ASSY, (includes items 8 thru 11) 8 N.S.S. 2 SNAP RING 9 N.S.S. 2 SPRING SLEEVE 10 N.S.S. 2 COMPRESSED SPRING 11 N.S.S. 1 PISTON 12 7026790 1 PISTON 13 1319685 AR WASHER, 2.0 13 1319686 AR WASHER, 1.0 13 1319687 AR WASHER, 0.5 13 1319688 AR WASHER, 0.3 13 1319689 AR WASHER, 0.2 14 1319684 1 COMPRESSED SPRING 15 1319683 1 COMPRESSED SPRING 16 7026786 1 SLEEVE 17 7026785 1 CONTROL PISTON 18 8036528 2 SOLENOID VALVE 19 N.S.S. 2 HEX HD CAPSCREW, M6X12, GR8.8 20 N.S.S. 2 BRACKET 21 1319670 2 PLUG, M10 22 80304327 2 O-RING 23 N.S.S. 2 PLUG, M24 24 70000656 2 O-RING 25 10732072 2 COMPRESSED SPRING 26 10732071 2 BALL 27 70022790 1 VALVE HOUSING 28 1319652 1 ORIFICE
