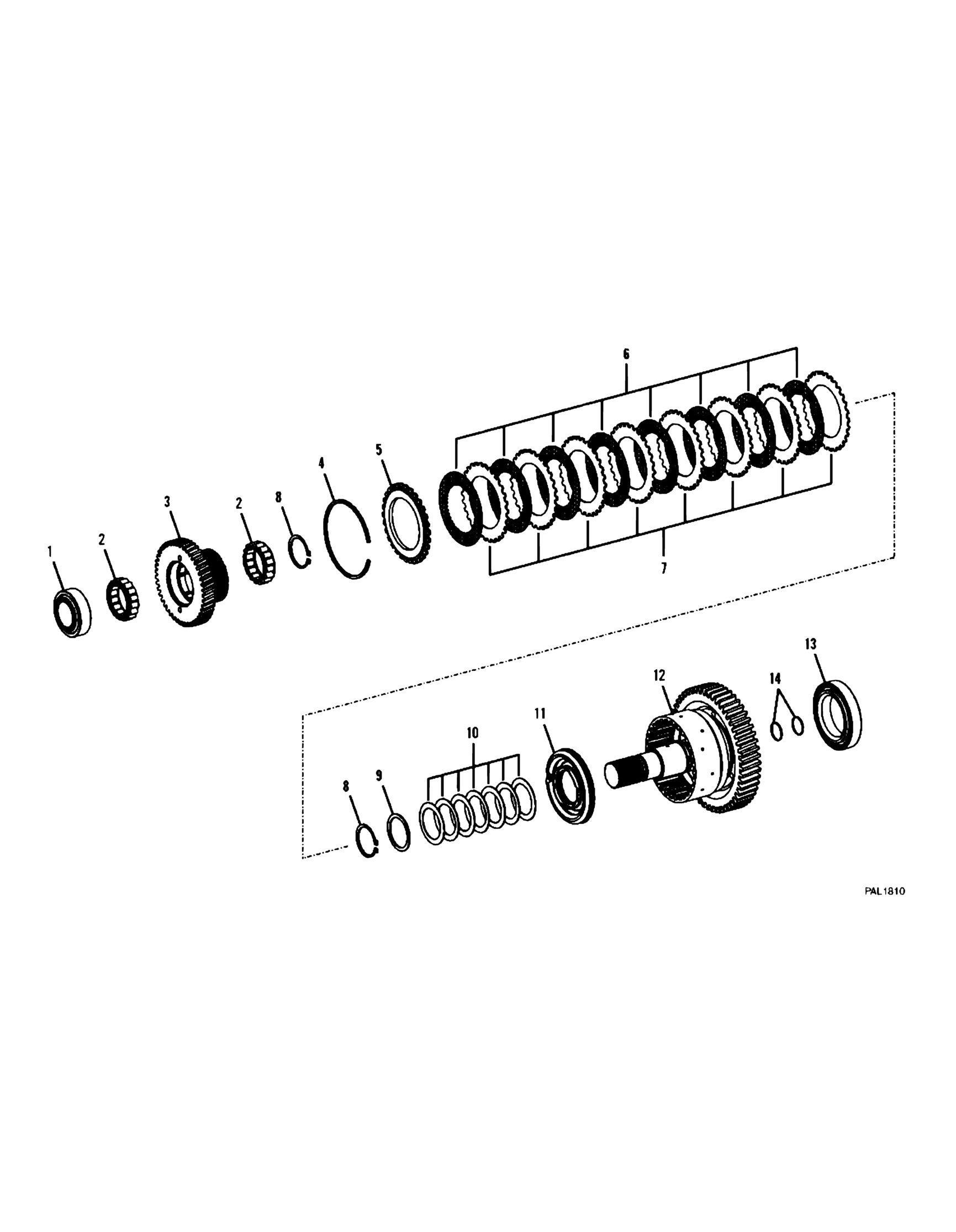

FIGURE 5 28. ZF TRANSMISSION 3RD SHAFT GROUP
FIGURE 5-28. ZF TRANSMISSION - 3RD SHAFT GROUP
FIGURE 5-28. ZF TRANSMISSION - 3RD SHAFT GROUP
ITEM PART NUMBER QTY
1 7026768 1 ROLLER BEARING 2 7026767 1 ROLLER BEARING 3 1319619 1 DISC CARRIER 4 1319600 AR SNAP RING, 4.0 4 7029850 AR SNAP RING, 3.75 4 1319601 AR SNAP RING, 3.5 4 7029849 AR SNAP RING, 3.25 4 1319602 AR SNAP RING, 3.0 4 7029852 AR SNAP RING, 2.75 4 1319603 AR SNAP RING, 2.5 4 7029851 AR SNAP RING, 2.25 4 1319604 AR SNAP RING, 2.0 5 7026760 1 END SHIM 6 7026758 8 FRICTION DISC 7 7026759 8 STATIC DISC 8 80304227 2 RETAINING RING 9 7026766 1 WASHER 10 7026765 7 CUP SPRING 11 8036575 1 PISTON 12 7026764 1 COUPLING 13 7026769 1 ROLLER BEARING 14 7026761 2 PISTON BEARING
