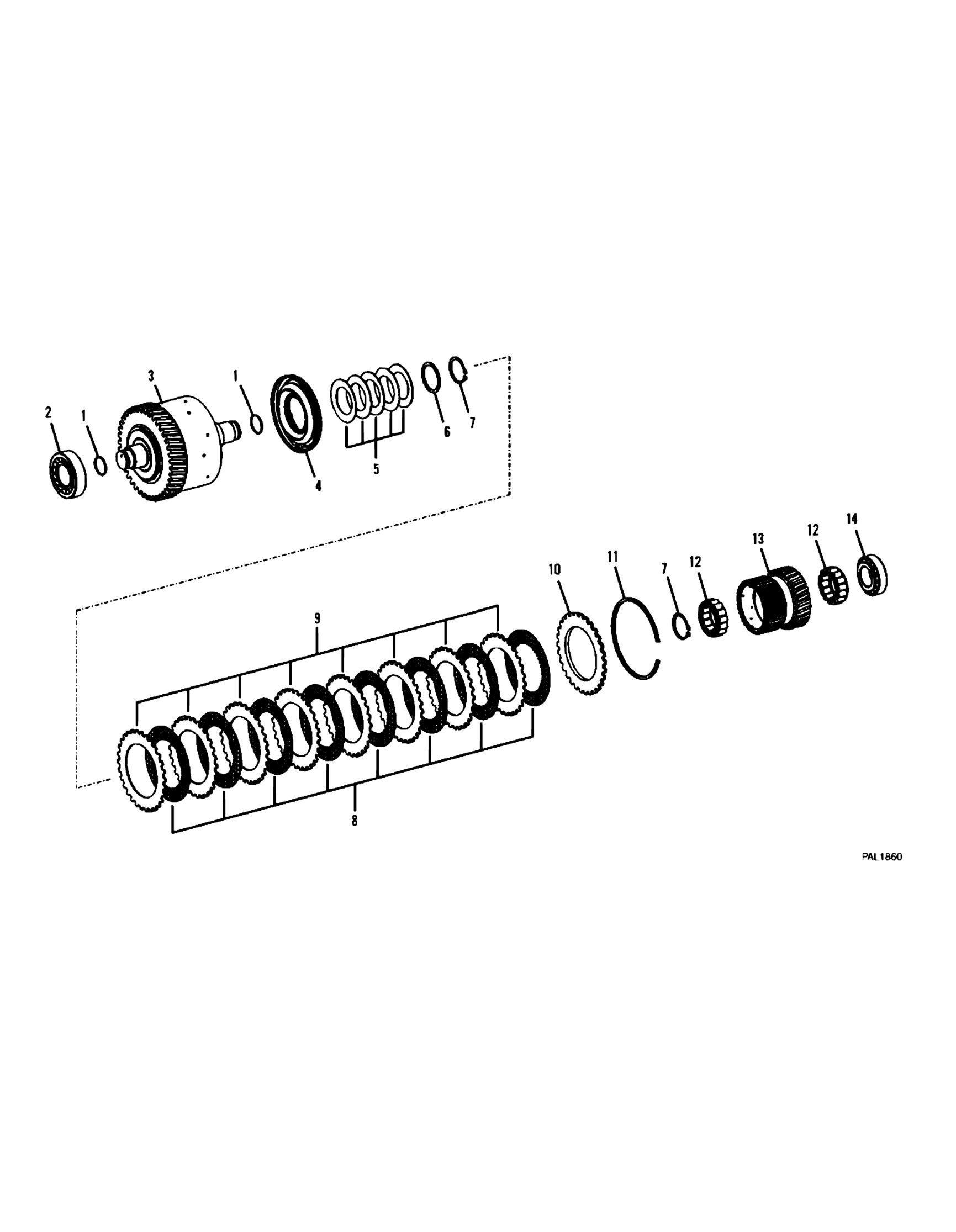

FIGURE 5 29. ZF TRANSMISSION 4TH SHAFT GROUP
FIGURE 5-29. ZF TRANSMISSION - 4TH SHAFT GROUP
FIGURE 5-29. ZF TRANSMISSION - 4TH SHAFT GROUP
ITEM PART NUMBER QTY
1 7026761 2 PISTON RING 2 1319615 1 ROLLER BEARING 3 7026770 1 COUPLING 4 8036575 1 PISTON 5 1319595 5 CUP SPRING 6 1319596 1 SHIM 7 10731845 2 RETAINING RING 8 7026758 12 FRICTION DISC 9 7026759 12 STATIC DISC 10 7026760 1 END SHIM 11 1319600 AR SNAP RING, 4.0 11 7029850 AR SNAP RING, 3.75 11 1319601 AR SNAP RING, 3.5 11 7029849 AR SNAP RING, 3.25 11 1319602 AR SNAP RING, 3.0 11 7029852 AR SNAP RING, 2.75 11 1319603 AR SNAP RING, 2.5 11 7029851 AR SNAP RING, 2.25 11 1319604 AR SNAP RING, 2.0 12 1319606 2 ROLLER CAGE 13 1319635 1 DISC CARRIER 14 1319636 1 ROLLER BEARING
