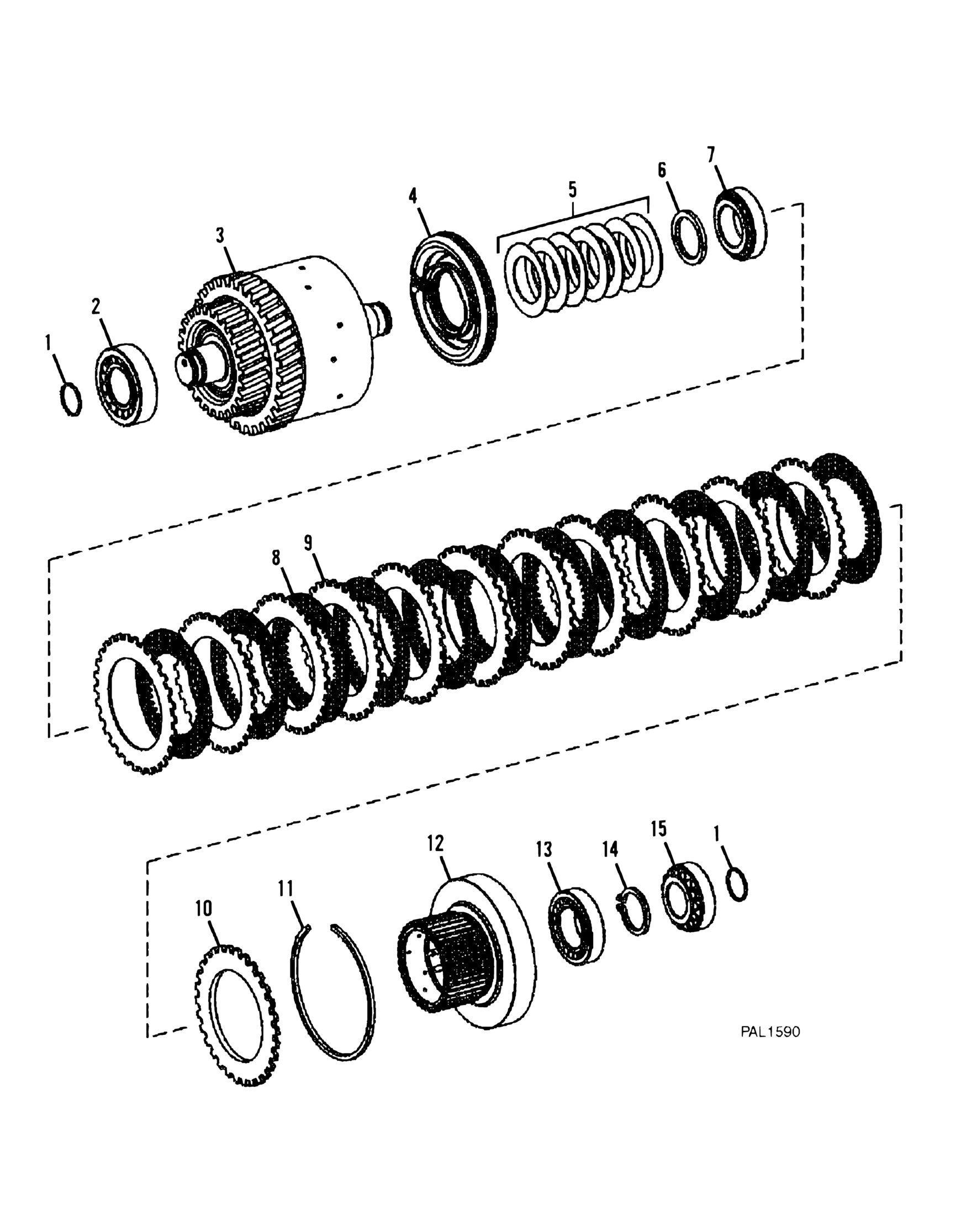

FIGURE 5 25. ZF TRANSMISSION REVERSE GEAR GROUP
FIGURE 5-25. ZF TRANSMISSION - REVERSE GEAR GROUP
FIGURE 5-25. ZF TRANSMISSION - REVERSE GEAR GROUP
ITEM PART NUMBER QTY
1 7026761 2 PISTON RING 2 1319615 1 ROLLER BEARING 3 7026762 1 COUPLING 4 8036575 1 PISTON 5 1319595 7 CUP SPRING 6 1319617 1 SUPPORT SHIM 7 1319618 1 ROLLER BEARING 8 7026758 11 FRICTION DISC 9 7026759 11 STATIC DISC 10 7026760 1 END SHIM 11 1319600 AR SNAP RING, 4.0 11 7029850 AR SNAP RING, 3.75 11 1319601 AR SNAP RING, 3.5 11 7029849 AR SNAP RING, 3.25 11 1319602 AR SNAP RING, 3.0 11 7029852 AR SNAP RING, 2.75 11 1319603 AR SNAP RING, 2.5 11 7029851 AR SNAP RING, 2.25 11 1319604 AR SNAP RING, 2.0 12 1319638 1 DISC CARRIER 13 1319620 1 ROLLER BEARING 14 1319621 AR RETAINING RING, 3.20 14 1319622 AR RETAINING RING, 3.10 14 1319623 AR RETAINING RING, 3.00 14 1319624 AR RETAINING RING, 2.90 14 1319625 AR RETAINING RING, 2.80 14 1319626 AR RETAINING RING, 2.70 14 1319627 AR RETAINING RING, 2.60 14 1319628 AR RETAINING RING, 2.50 14 1319629 AR RETAINING RING, 2.40 14 1319630 AR RETAINING RING, 2.30 14 1319631 AR RETAINING RING, 2.20 14 1319632 AR RETAINING RING, 2.10 15 1319636 1 ROLLER BEARING
