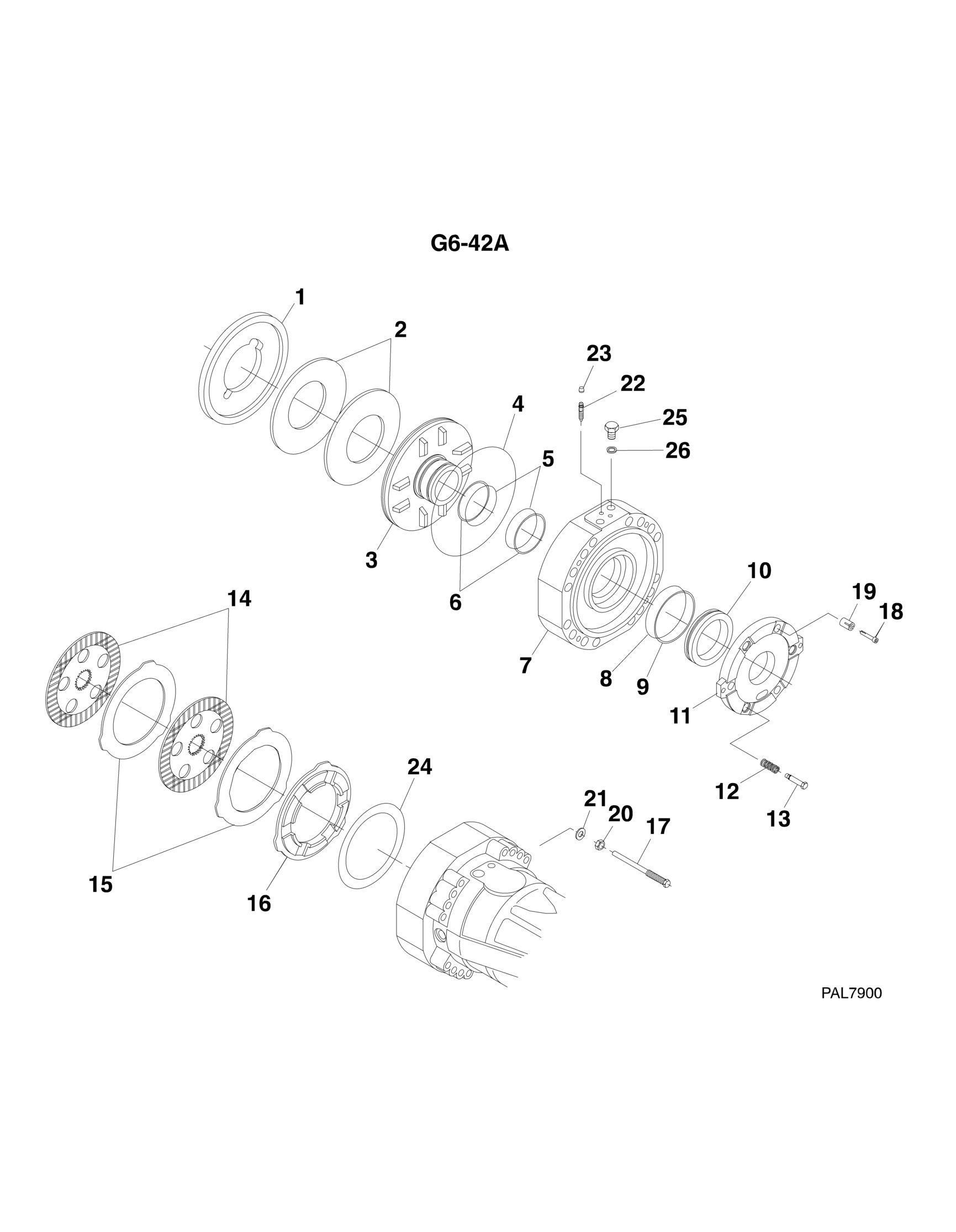

FIGURE 5 19. BRAKES G6 42A
FIGURE 5-19. BRAKES G6-42A
FIGURE 5-19. BRAKES G6-42A
ITEM PART NUMBER QTY DESCRIPTION
1 7028734 1 SPACER 2 91474559 4 SPRING 3 91474560 2 PISTON 4 91474561 2 O-RING 5 91514167 4 O-RING 6 91514153 4 BACK-UP RING 7 7028735 2 COVER 8 91474562 2 O-RING 9 91474563 2 BACK-UP RING 10 91474564 2 PISTON 11 91474565 2 INTERMEDIATE BRAKE DISC 12 91514159 6 SPRING 13 91514160 6 ADJUSTING BOLT 14 91474568 8 DISC 15 91474569 8 INTERMEDIATE BRAKE DISC 16 91474570 2 SPACER 17 N.S.S. 4 BOLT 18 7029789 6 ADJUSTING BOLT 19 91514165 6 SPRING 20 80204060 4 NUT 21 80204108 4 LOCKWASHER 22 80204281 4 BLEEDING BOLT 23 80204117 4 PLUG 24 91474571 2 SHIM 24 91474572 2 SHIM 24 91474573 2 SHIM 25 91514154 4 PLUG
