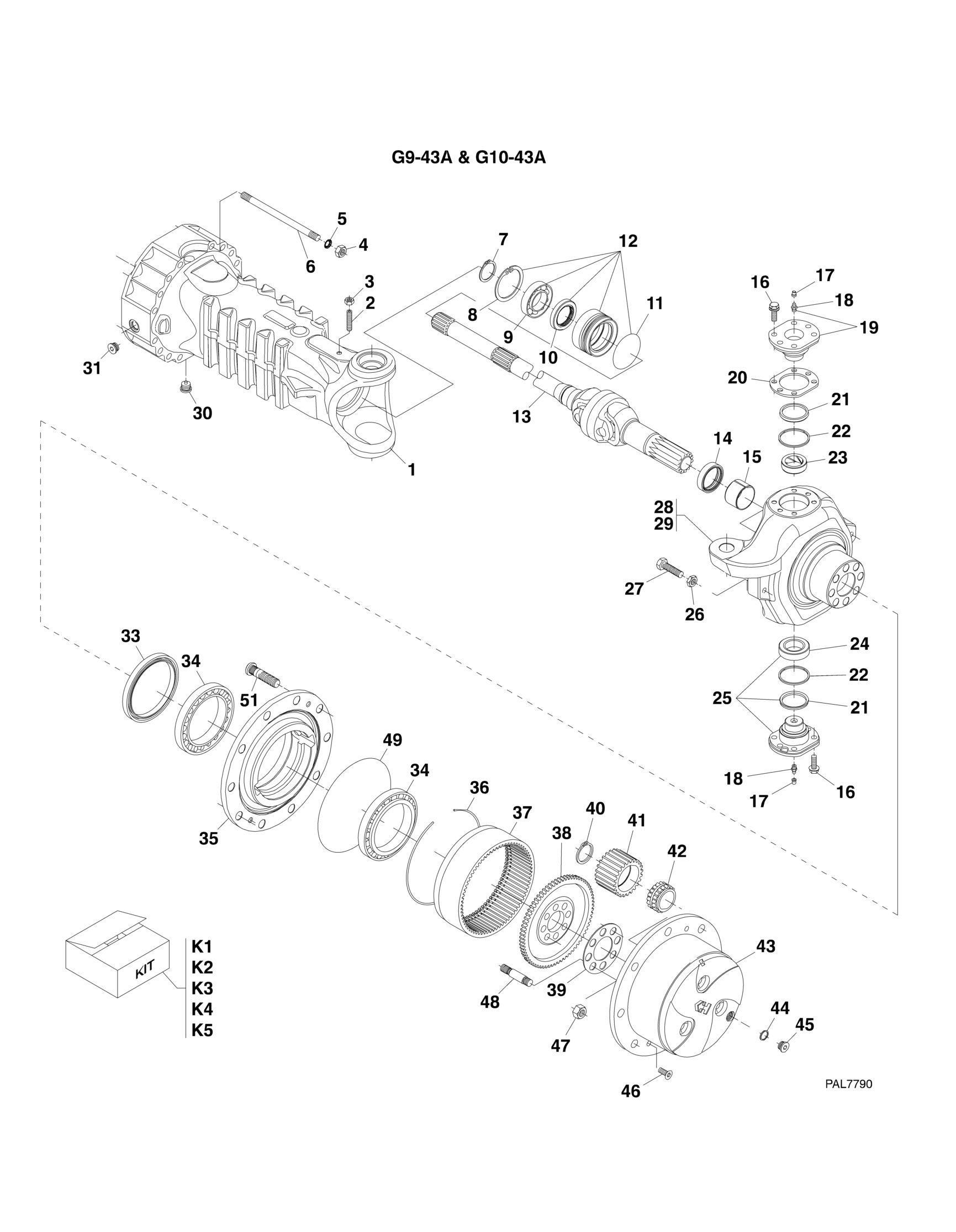

FIGURE 5 18. HUB REDUCTION G9 43A & G10 43A
FIGURE 5-18. HUB REDUCTION G9-43A & G10-43A
FIGURE 5-18. HUB REDUCTION G9-43A & G10-43A
ITEM PART NUMBER QTY DESCRIPTION
1 70022813 2 AXLE CASE 2 91514081 2 BOLT 3 91514082 2 NUT 6 70022814 32 HEXAGON BOLT 7 80204071 2 CIRCLIP 8 80204005 2 CIRCLIP 9 91514146 2 BALL BEARING 10 91514147 2 SEAL 11 91514148 2 O-RING 12 91514149 2 REDUCTION BUSHING 13 N.S.S. 2 DOUBLE UNIVERSAL JOINT 14 7028718 2 SEAL 15 91514111 1 THRUST BUSHING 16 91514123 24 BOLT 18 91514099 2 GREASE FITTING 19 91514112 2 PIVOT PIN 20 91514113 AR SHIM 20 91514114 AR SHIM 20 91514115 AR SHIM 21 7028716 2 DUST EXCLUDER 23 7028714 2 BUSHING 24 91514095 2 BEARING 25 7028715 2 PIVOT PIN 26 80204065 4 NUT 27 91514117 4 BOLT 28 7029294 1 LH STEERING CASE 29 7029295 1 RH STEERING CASE 30 70021177 2 MAGNET PLUG 31 91514087 2 PLUG 33 7029300 2 SEAL 34 80204076 4 TAPER ROLLER BEARING 35 91514174 2 WHEEL HUB 36 91514175 2 CIRCLIP 37 70024147 2 RING GEAR 38 91514177 2 RING GEAR SUPPORT 39 91514178 2 LOCKING PLATE 40 91514184 6 SNAP RING 41 91514185 6 PLANET GEAR 42 91514186 6 BEARING 43 7026731 2 PLANET GEAR CARRIER 45 91514188 2 PLUG 46 91514189 4 COUNTERSUNK BOLT 47 91514179 16 NUT 48 91514180 16 STUD 49 91514181 2 O-RING 51 80214120 20 WHEEL STUD K1 7029733 2 PLANET GEAR CARRIER KIT, (includes items 36 thru 38 & 40 thru 43) K2 7029750 1 LH STEERING CASE KIT, (includes items 15 & 28) K3 7029751 1 RH STEERING CASE KIT, (includes items 15 & 29)
REV
ITEM PART NUMBER QTY
DESCRIPTION
K4 7028733 4 STEERING ADJUST BOLT KIT, (includes items 26 & 27) K5 70024146 2 RING GEAR SUPPORT KIT, (includes items 36 thru 38)
