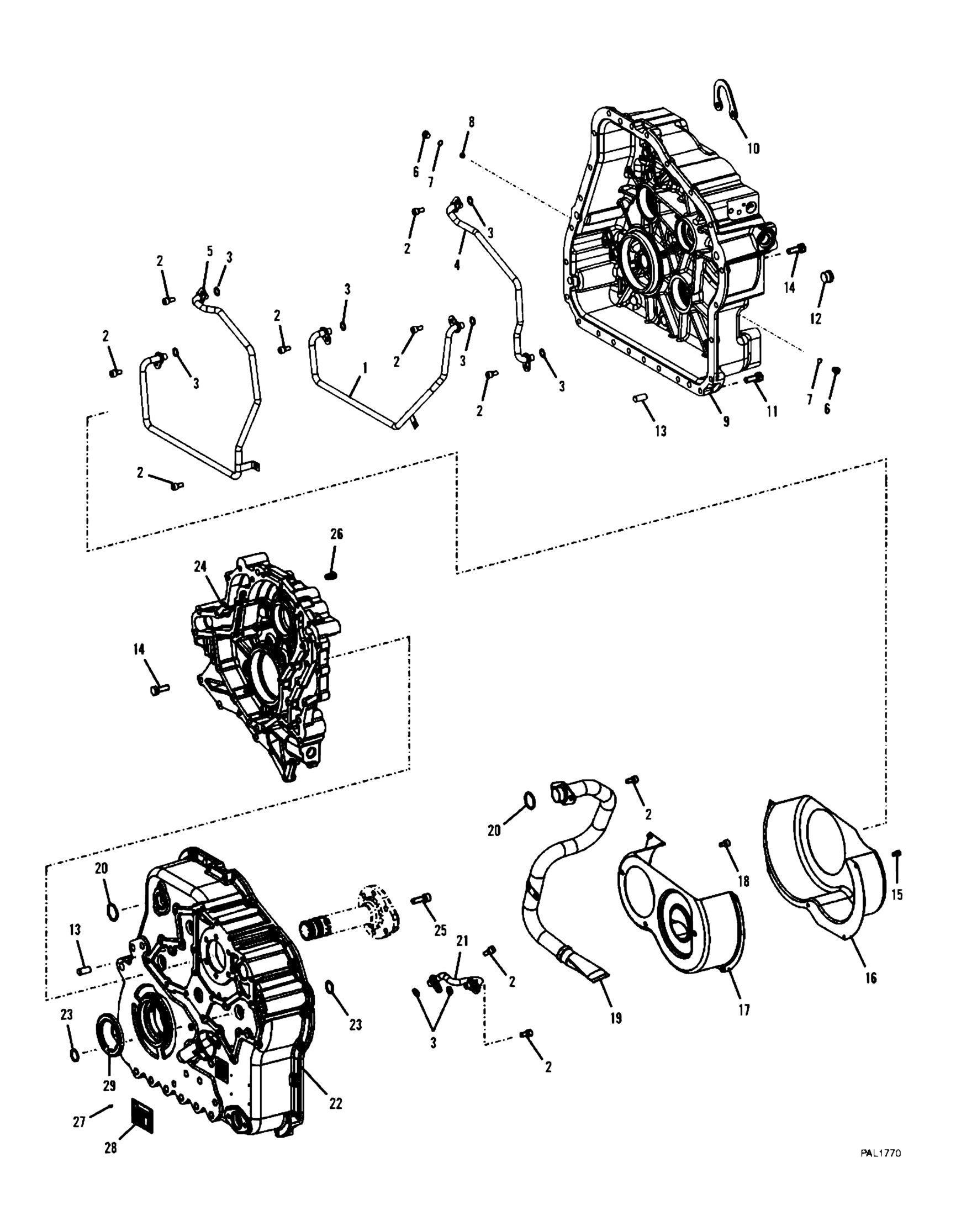

FIGURE 5 23. ZF TRANSMISSION GEARBOX HOUSING
FIGURE 5-23. ZF TRANSMISSION - GEARBOX HOUSING
FIGURE 5-23. ZF TRANSMISSION - GEARBOX HOUSING
ITEM PART NUMBER QTY DESCRIPTION
1 7026751 1 PIPE 2 1319585 11 HEX HD CAPSCREW, M8X16, GR8.8 3 8036847 8 O-RING 4 7026750 1 PIPE 5 7026752 1 PIPE 6 1319670 7 PLUG 7 80304327 7 O-RING 8 N.S.S. 1 ORIFICE 9 N.S.S. 1 HOUSING 10 1319590 1 BRACKET 11 N.S.S. 6 HEX HD CAPSCREW, M10X50, GR8.8 12 N.S.S. 1 PLUG 13 1319571 4 PIN 14 80304394 31 HEX HD CAPSCREW, M10X30, GR8.8 15 1319646 5 HEX HD CAPSCREW 16 7026756 1 SCREEN SHEET 17 7026755 1 SCREEN SHEET 18 N.S.S. 3 CAPSCREW, M8X12, GR8.8 19 7026753 1 SUCTION TUBE 20 1319581 2 O-RING 21 7026754 1 PIPE 22 N.S.S. 1 HOUSING 23 N.S.S. 2 O-RING 24 N.S.S. 1 HOUSING 25 N.S.S. 6 CAPSCREW, M10X30, GR8.8 26 10731744 1 BREATHER 27 N.S.S. 4 GROOVED STUD, 3X5 28 N.S.S. 1 TYPE PLATE 29 1319641 1 SHAFT SEAL
