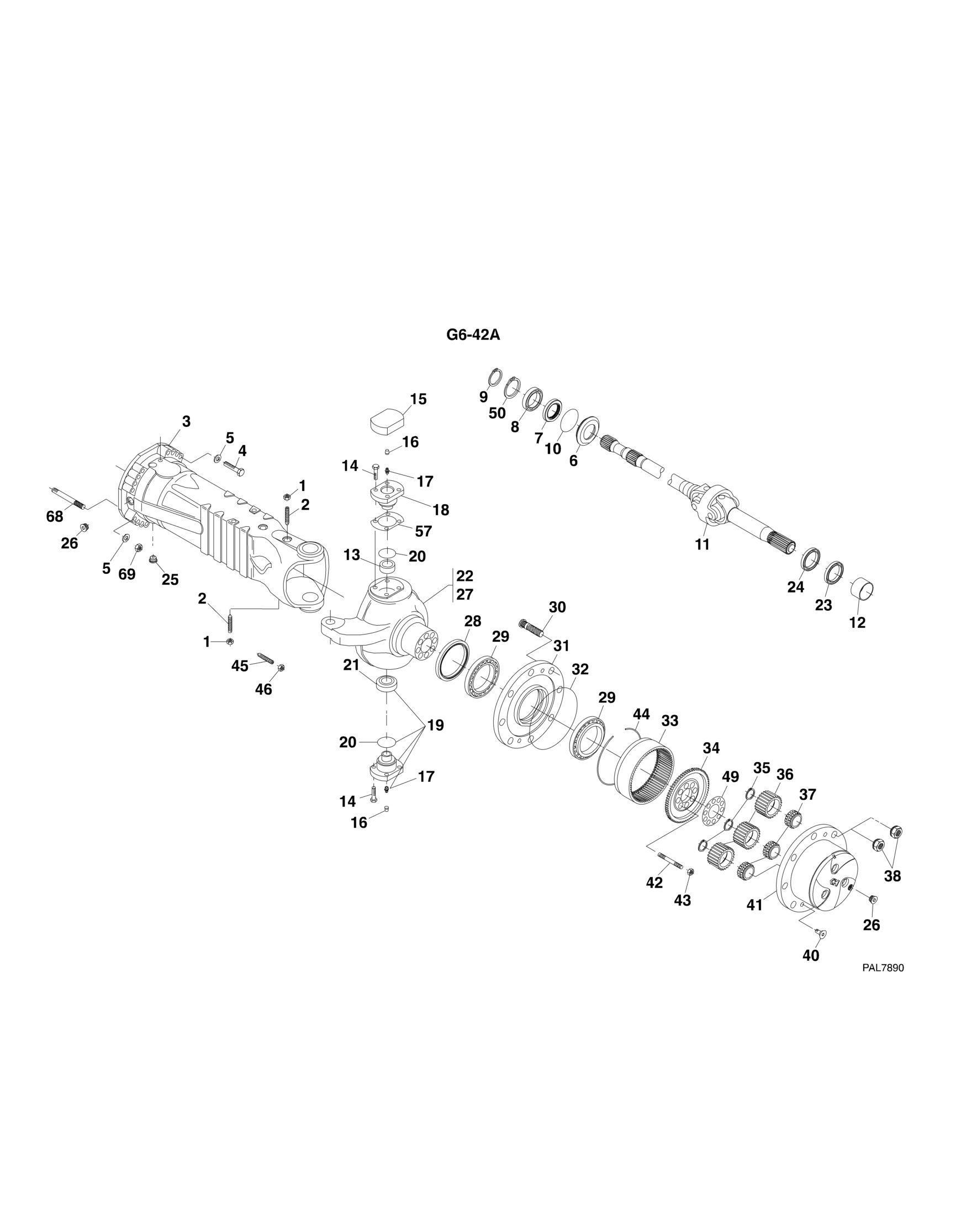

FIGURE 5 17. HUB REDUCTION G6 42A
FIGURE 5-17. HUB REDUCTION G6-42A
FIGURE 5-17. HUB REDUCTION G6-42A
ITEM PART NUMBER QTY DESCRIPTION
1 91514082 2 NUT 2 91514081 2 BOLT 3 N.S.S. 2 AXLE CASE 5 91514084 32 WASHER 6 91514149 2 REDUCTION BUSHING 7 91514147 2 SEAL 8 91514146 2 BALL BEARING 9 80204071 2 CIRCLIP 10 91514148 2 O-RING 11 N.S.S. 2 DOUBLE UNIVERSAL JOINT 12 91514111 1 THRUST BUSHING 13 7028714 2 BUSHING 14 91514123 24 BOLT 15 91474524 2 COVER 16 80204117 2 PLUG 17 91514099 2 GREASE FITTING 18 91514112 2 PIVOT PIN 19 7028715 2 PIVOT PIN 20 7028716 2 DUST EXCLUDER 21 91514095 2 BEARING 22 91474527 1 LH STEERING CASE 23 7028718 2 SEAL 25 91474513 2 MAGNET PLUG 26 91514188 4 PLUG 27 91474526 1 RH STEERING CASE 28 7028721 2 SEAL 29 91474576 4 BEARING 30 80214120 20 WHEEL STUD 31 7028722 2 WHEEL HUB 32 91514181 2 O-RING 33 70024147 2 RING GEAR 34 7028723 2 RING GEAR SUPPORT 35 7028724 6 CIRCLIP 36 7028725 6 DIFFERENTIAL PINION 38 91474584 20 NUT 40 91514189 4 COUNTERSUNK BOLT 41 7028726 2 PLANET GEAR CARRIER 42 91474583 20 STUD 44 91514175 2 CIRCLIP 45 91514117 4 BOLT 46 80204065 4 NUT 49 91474582 2 LOCKING PLATE 50 80204005 2 CIRCLIP 57 91514113 AR SHIM 57 91514114 AR SHIM 57 91514115 AR SHIM 62 91474507 2 O-RING 63 7028728 8 STUD 64 91514083 8 NUT 68 7028712 24 STUD
REV
ITEM PART NUMBER QTY DESCRIPTION
69 91514083 24 NUT 70 7028731 6 BEARING 71 7028732 6 BEARING K1 Ref PLANET GEAR CARRIER KIT, (includes items 35 thru 37, 41, 70 & 71) K2 7029284 1 STEERING ADJUSTMENT KIT, (includes items 45 & 46) K3 7029285 1 RH STEERING CASE KIT, (includes items 12 & 27) K4 7028733 1 STEERING ADJUSTMENT KIT, (includes items 45 & 46) K5 Ref RING GEAR SUPPORT KIT, (includes items 33, 34 & 44)
