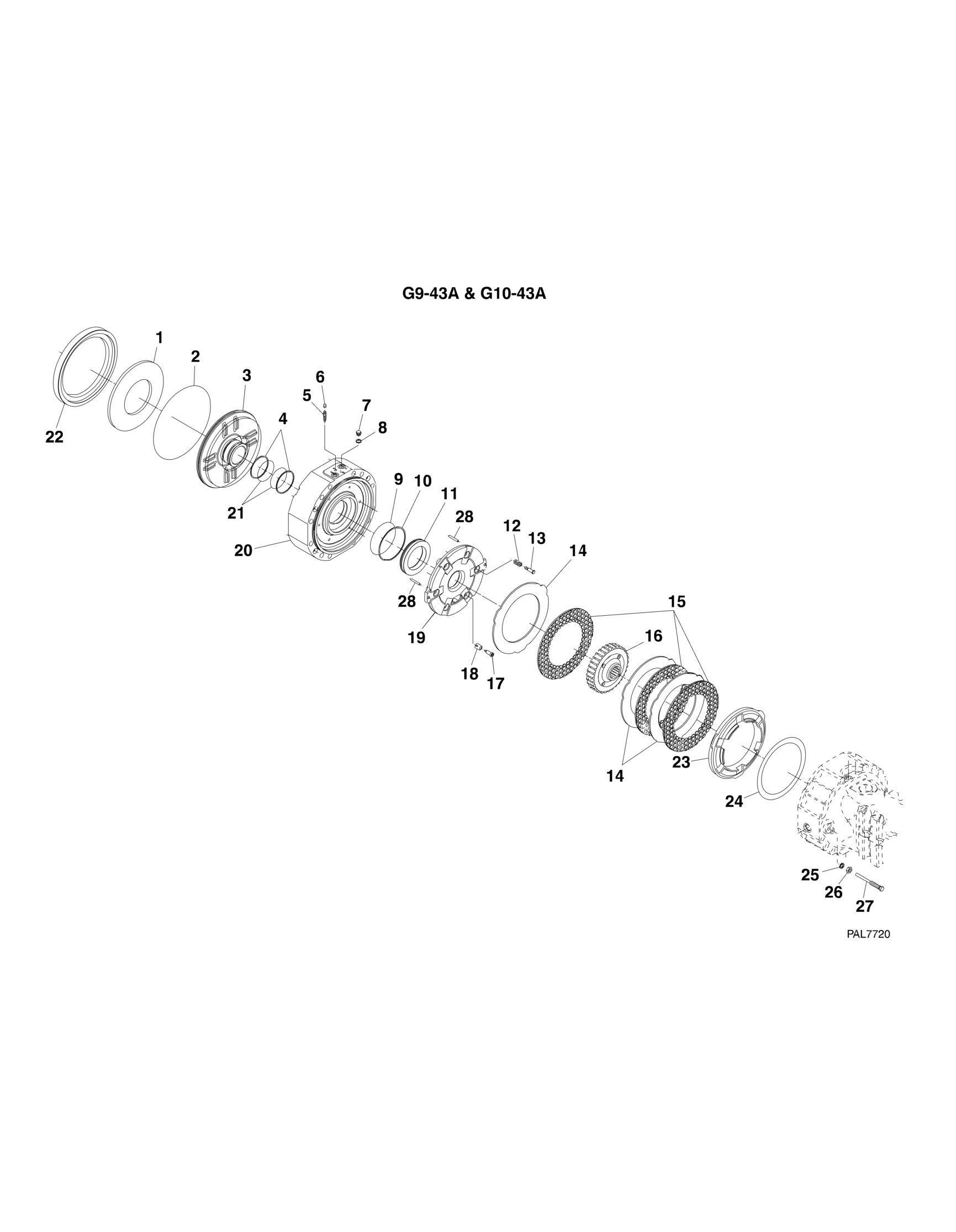

FIGURE 5 11. BRAKES G9 43A & G10 43A
FIGURE 5-11. BRAKES G9-43A & G10-43A
FIGURE 5-11. BRAKES G9-43A & G10-43A
ITEM PART NUMBER QTY DESCRIPTION
1 91514151 2 SPRING 2 91514089 2 O-RING 3 91514152 2 PISTON 4 91514153 4 BACKUP RING 5 80204281 4 BLEEDING BOLT 6 80204117 4 PLUG 7 91514154 4 PLUG 9 91514156 2 O-RING 10 91514157 2 BACKUP RING 11 91514158 2 PISTON 12 91514159 6 SPRING 13 91514160 6 ADJUSTINGBOLT 14 91514161 6 INTERMEDIATE BRAKE DISC 15 7029735 6 BRAKE DISC 16 7029734 2 REDUCTION BUSHING 17 7029789 6 ADJUSTING BOLT 18 91514165 6 SPRING 19 N.S.S. 2 INTERMEDIATE BRAKE DISC 20 N.S.S. 2 COVER 21 91514167 4 O-RING 23 7029298 2 SPACER 24 91514171 2 SHIM 24 91514172 2 SHIM 24 91514173 2 SHIM 25 80204108 4 LOCKWASHER 26 80204060 4 NUT 27 91514170 4 BOLT 28 N.S.S. 4 DOWEL
