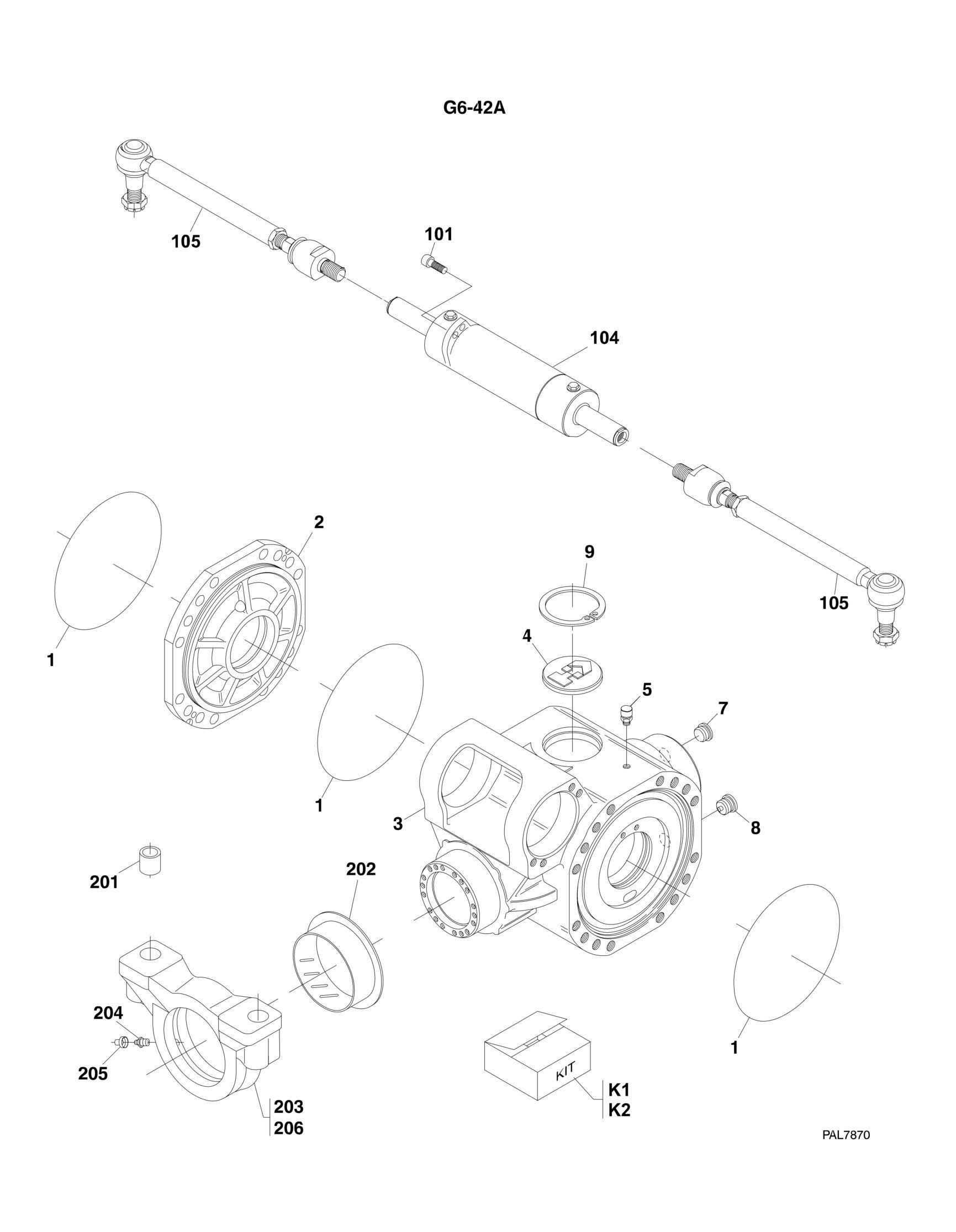

FIGURE 5 13. CENTRAL HOUSING AND STEERING G6 42A
FIGURE 5-13. CENTRAL HOUSING AND STEERING G6-42A
FIGURE 5-13. CENTRAL HOUSING AND STEERING G6-42A
ITEM PART NUMBER QTY DESCRIPTION
1 91474507 3 O-RING 2 N.S.S. 1 INTERMEDIATE COVER 3 7029279 1 HOUSING 4 91514098 1 PLUG 5 91474512 1 VENT 7 91514188 1 PLUG 8 91474513 1 MAGNET PLUG 9 80204005 1 CIRCLIP 101 91474522 4 BOLT 104 7029528 1 STEERING CYLINDER 105 91474521 2 TIE ROD 201 91474516 2 REDUCTION BUSHING 202 91474515 1 THRUST BUSHING 203 7029282 1 FRONT SUPPORT 204 91514099 1 GREASE FITTING 205 80204117 1 PLUG 206 7029283 1 REAR SUPPORT K1 7029282 1 FRONT SUPPORT ASSY, (includes items 201 thru 205) K2 7029283 1 REAR SUPPORT ASSY, (includes items 201, 202 & 204 thru 206)
