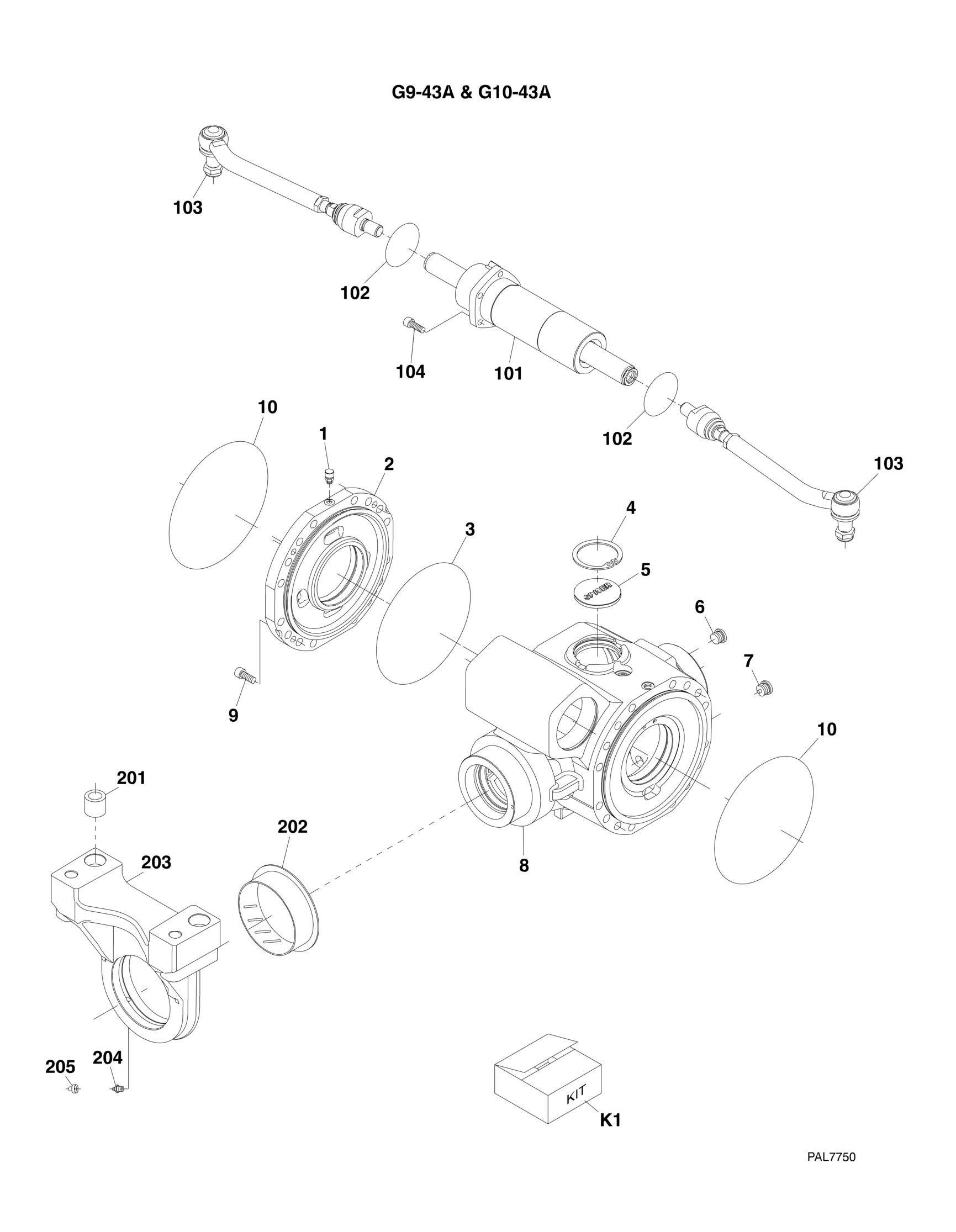

FIGURE 5 14. CENTRAL HOUSING AND STEERING G9 43A & G10 43A
ITEM PART NUMBER QTY DESCRIPTION
1 91474512 1 VENT 2 7029288 1 INTERMEDIATE COVER 3 80204002 1 O-RING 4 80204005 1 CIRCLIP 5 91514098 1 PLUG 6 91514087 1 PLUG 7 70021177 1 MAGNET PLUG 8 7029289 1 HOUSING 9 91514101 4 BOLT 10 91514089 2 O-RING 101 7026490 1 STEERING CYLINDER 102 80204143 2 O-RING 103 70021614 2 TIE-ROD 104 80204144 5 BOLT 201 7029290 4 BUSHING 202 91514090 2 THRUST BUSHING 203 7029291 2 SUPPORT 204 91514099 2 GREASE FITTING 205 80204117 2 PLUG K1 7029292 2 SUPPORT ASSY, (includes items 201 thru 205)
