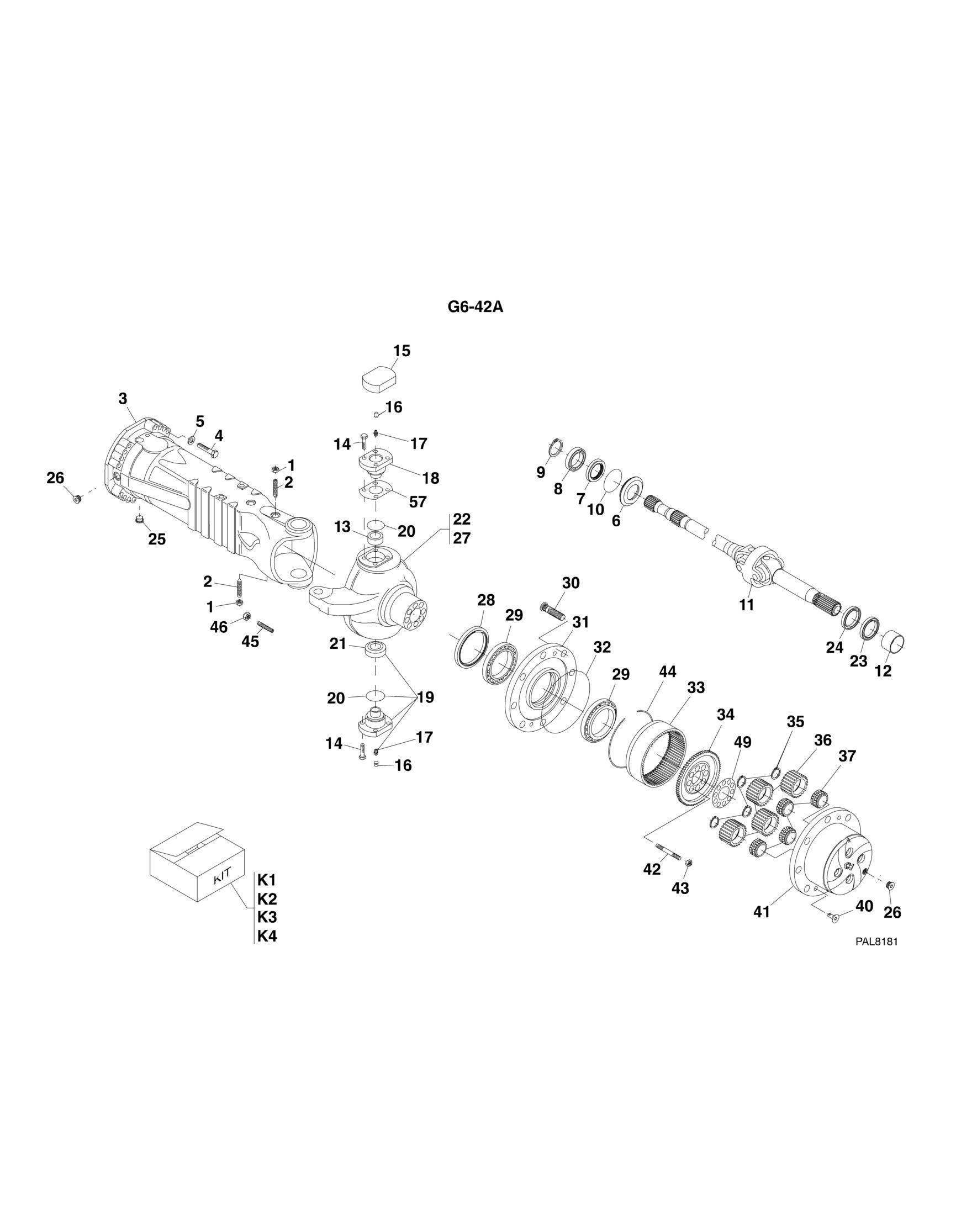

FIGURE 5 8. HUB REDUCTION G6 42A
FIGURE 5-8. HUB REDUCTION G6-42A
FIGURE 5-8. HUB REDUCTION G6-42A
ITEM PART NUMBER QTY DESCRIPTION
1 91514082 2 NUT 2 91514081 2 BOLT 3 N.S.S. 2 AXLE CASE 4 N.S.S. 24 BOLT 5 91514084 8 WASHER 6 91514149 2 REDUCTION BUSHING 7 91514147 2 SEAL 8 91514146 2 BALL BEARING 9 80204071 2 CIRCLIP 10 91514148 2 O-RING 11 N.S.S. 2 JOINT 12 91514111 1 THRUST BUSHING 13 7028714 2 BUSHING 14 91514123 24 BOLT 15 91474524 2 COVER 16 80204117 2 Plug 17 91514099 2 GREASE FITTING 18 91514112 2 PIVOT PIN 19 7028715 2 PIVOT PIN 20 7028716 2 DUST EXCLUDER 21 91514095 2 BEARING 22 91474527 1 STEERING CASE 23 7028718 2 SEAL 25 91474513 2 MAGNET PLUG 26 91514188 4 PLUG 27 91474526 1 STEERING CASE 28 7028721 2 SEAL 29 91474576 4 BEARING 30 80214120 20 WHEEL STUD 31 7029737 2 WHEEL HUB 32 91514181 2 O-RING 33 91474580 2 RING GEAR 34 91474581 2 RING GEAR SUPPORT 35 91474585 8 CIRCLIP 36 70023900 8 PLANET GEAR ASSY, (includes planet gear and bearing) 40 91514189 4 COUNTERSUNK BOLT 41 7029286 2 PLANET GEAR CARRIER 42 91474583 20 STUD 43 91474584 20 NUT 44 91474579 2 CIRCLIP 45 91514117 4 BOLT 46 80204065 4 NUT 49 91474582 2 LOCKING PLATE 50 80204005 2 CIRCLIP 57 91514113 AR SHIM, 0.006 57 91514114 AR SHIM, 0.008 57 91514115 AR SHIM, 0.019 61 N.S.S. 8 STUD 62 91514083 8 NUT 63 91474507 2 O-RING
REV
ITEM PART NUMBER QTY
DESCRIPTION
K1 7029431 2 PLANET GEAR CARRIER KIT, (includes items 35 thru 37 & 41) K2 91474527 1 LEFT STEERING CASE KIT, (includes items 12 & 22) K3 91474526 1 RIGHT STEERING CASE KIT, (includes items 12 & 27) K4 7028733 4 STEERING ADJUSTING BOLT KIT, (includes items 45 & 46)
