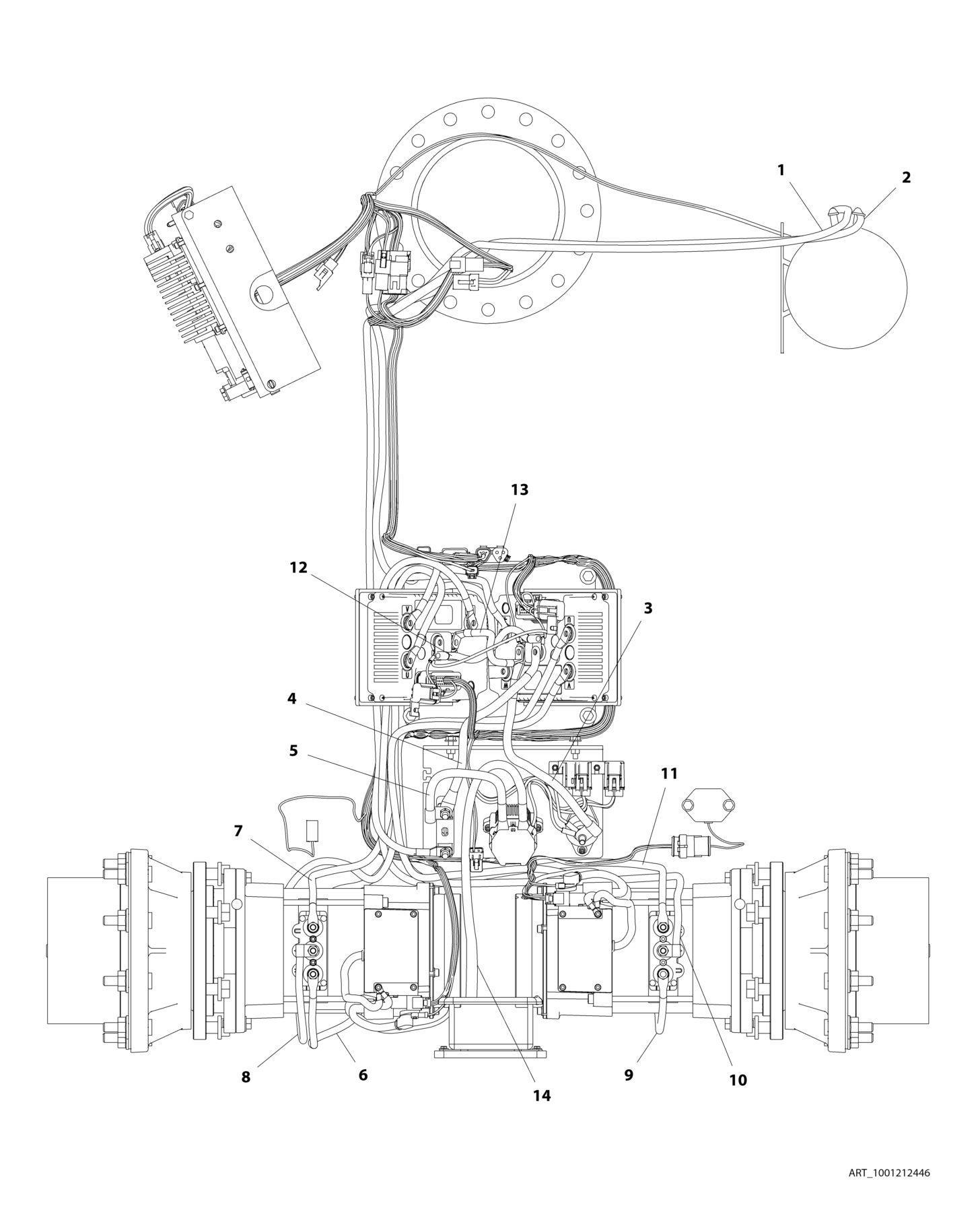

FIGURE 7 25. DRIVE CABLE KIT (UL SPECS

FIGURE 7-25. DRIVE CABLE KIT (UL SPECS)

FIGURE 7-25. DRIVE CABLE KIT (UL SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001212446 Ref DRIVE CABLE KIT (UL SPECS) 1 1001179000 1 Cable - Pump Motor + to Fuse 2 1001179001 1 Cable - Pump Motor - to LH Module P 3 1001194283 1 Cable - Ground to LH Module P4 1001194285 1 Cable - RH Module P+ to Fuse 5 1001194288 1 Cable - Contactor to Fuse 6 1001194654 1 Cable - LH Motor W 7 1001194655 1 Cable - LH Motor U 8 1001194656 1 Cable - LH Motor V 9 1001194657 1 Cable - RH Motor U 10 1001194658 1 Cable - RH Motor V 11 1001194659 1 Cable - RH Motor W 12 1001194739 1 Cable - RH Module P+ to LH Module P+ 13 1001194740 1 Cable - LH Module P- to RH Module P14 1001212436 1 Cable, Drive Jumper

REV

A
