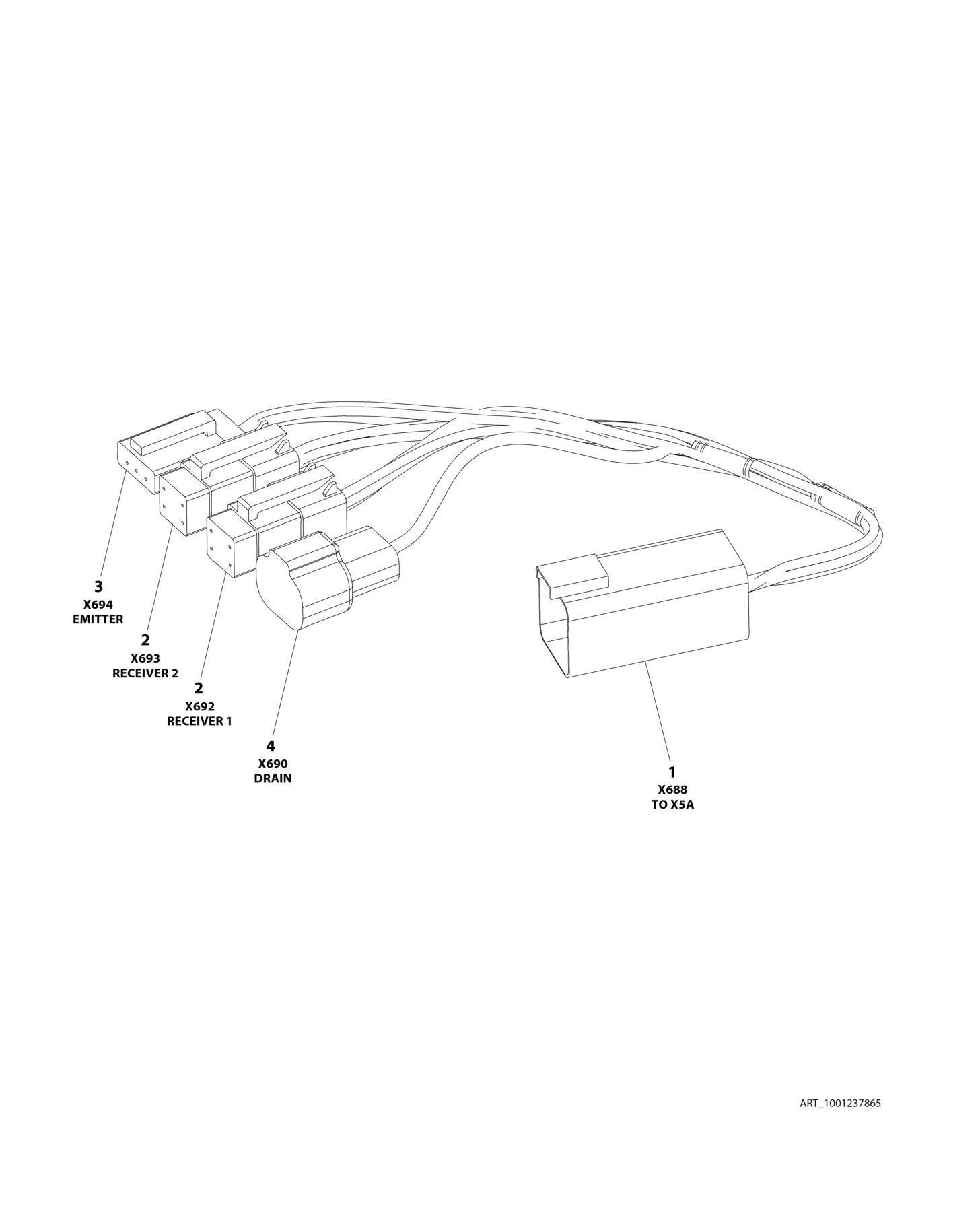

FIGURE 7 35. SKYEYE INTERMEDIATE HARNESS
FIGURE 7-35. SKYEYE INTERMEDIATE HARNESS
FIGURE 7-35. SKYEYE INTERMEDIATE HARNESS
ITEM PART NUMBER QTY
DESCRIPTION
1001237865 Ref SKYEYE INTERMEDIATE HARNESS 1 4460899 1 Connector - 6 Position 1 4460943 4 Pin, Male 1 4460466 2 Plug, Terminal 2 4461077 2 Connector - 4 Position 2 1001119619 8 Socket, Female 3 4460911 1 Connector - 3 Position 3 1001119619 3 Socket, Female 4 1001187681 1 Connector - 2 Position 4 4460941 1 Pin, Male 4 4460466 1 Plug, Terminal
REV
A
